Security System Keyless Entry System - Testing & Troubleshooting (1 Of 2)
>>

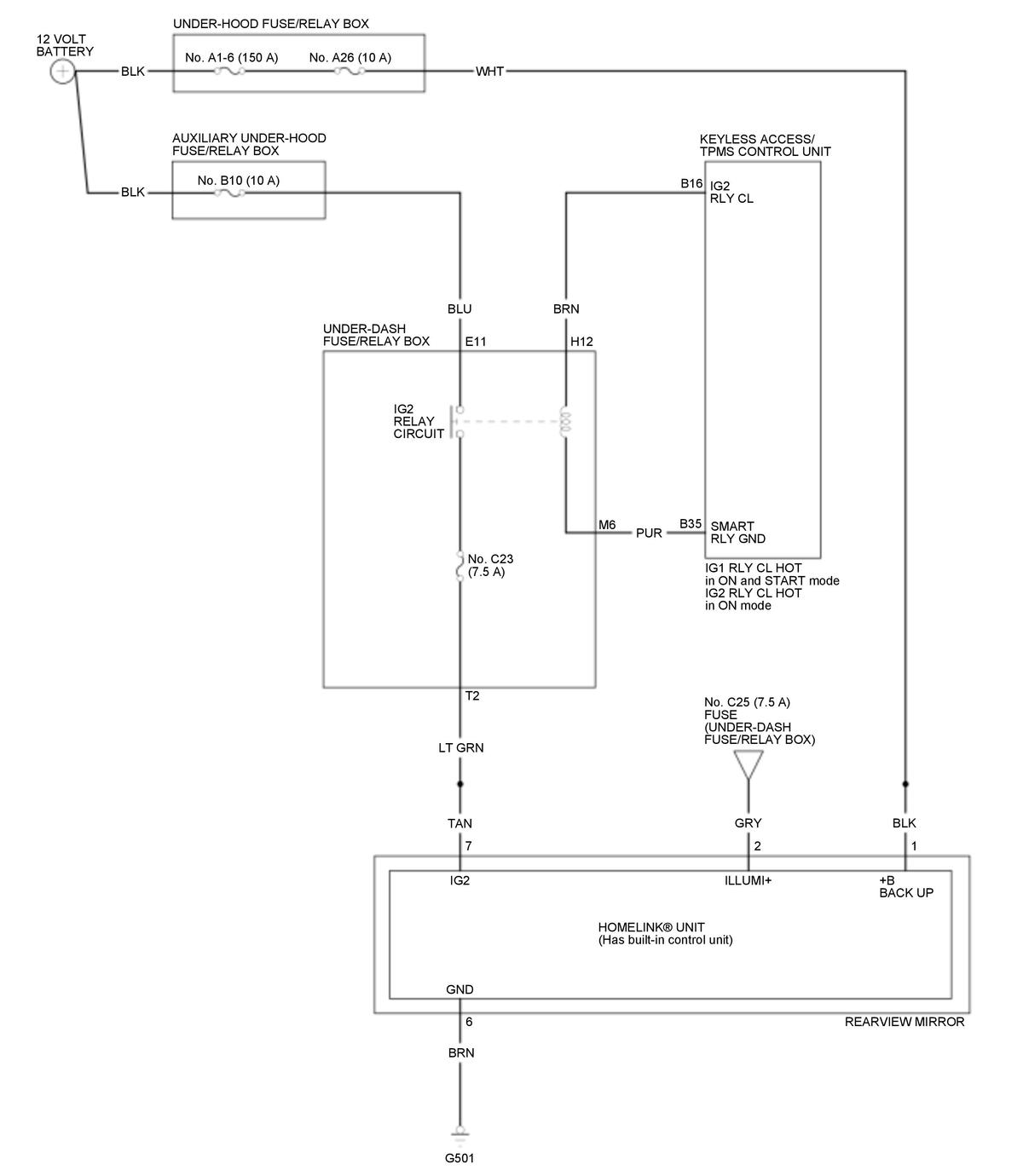

Circuit Diagram
>>
HOMELINK Remote Control System (2019 2020 2021)
HOMELINK Remote Control System (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
