A/T System Circuit Diagram (2016 2017 2018: 6-Speed A/T)

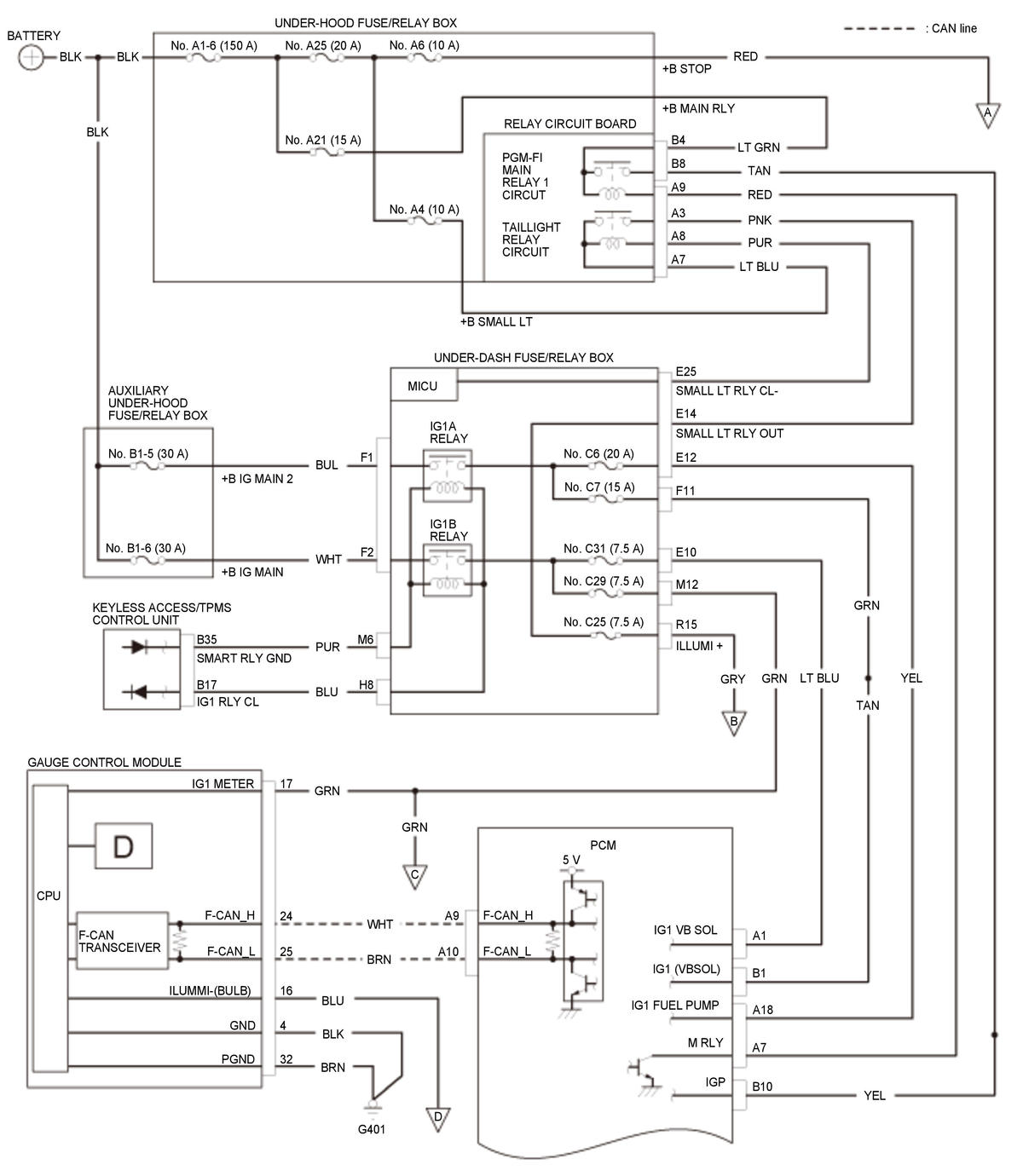

GHH304874

Courtesy of HONDA, U.S.A., INC.

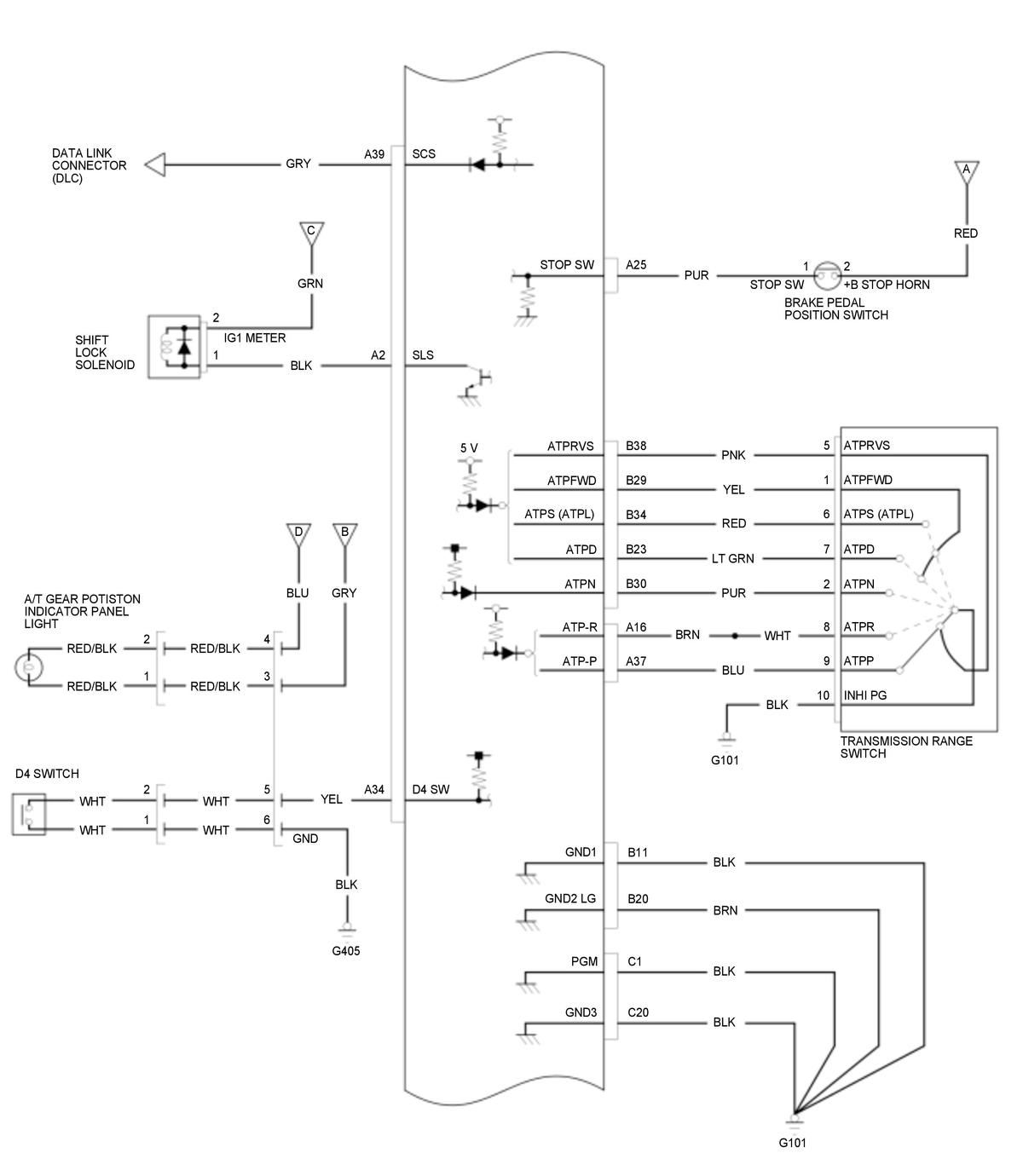

GHH304875

Courtesy of HONDA, U.S.A., INC.

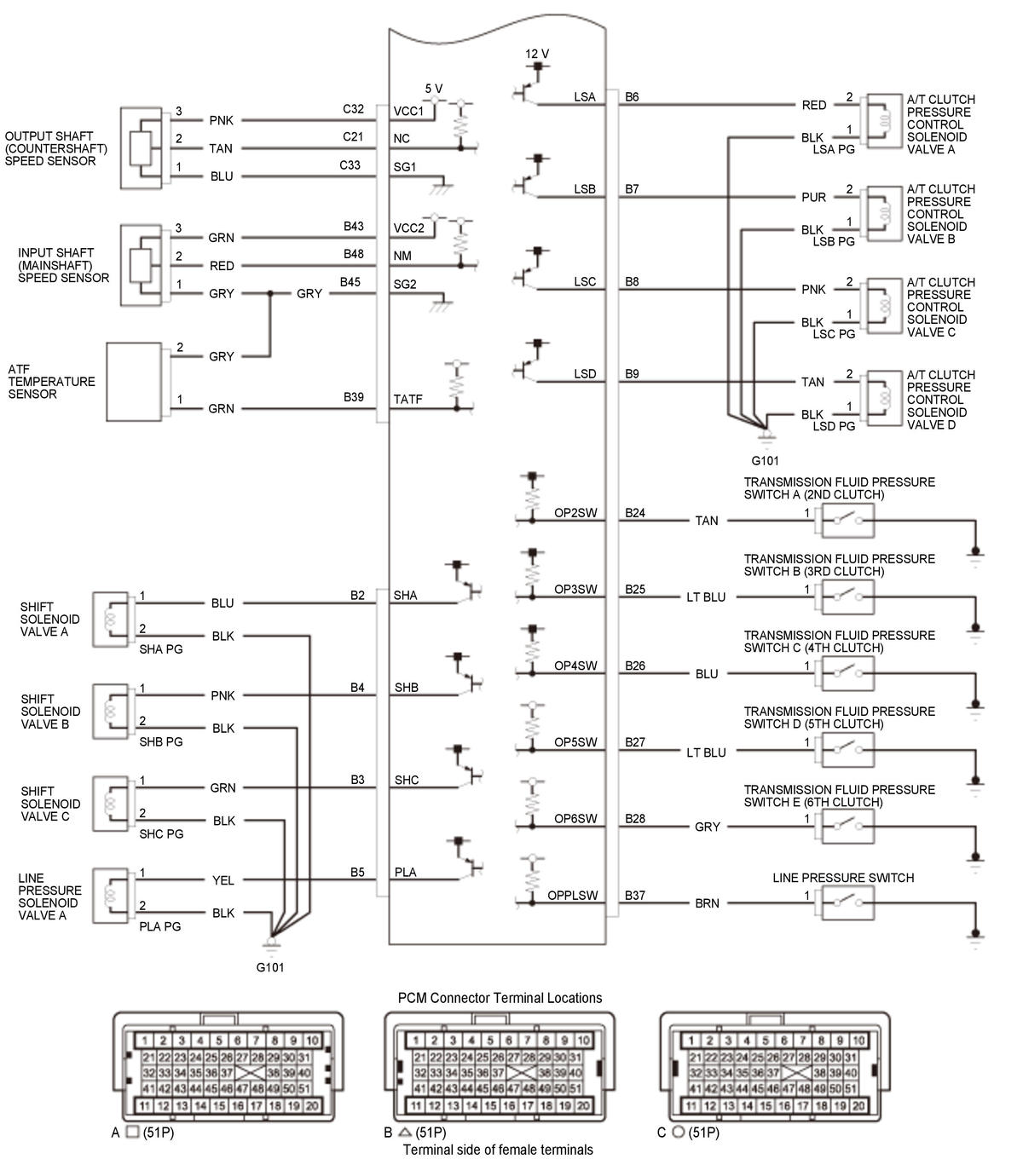

GHH304876

Courtesy of HONDA, U.S.A., INC.
