Heating and A/C Systems Component Location Index

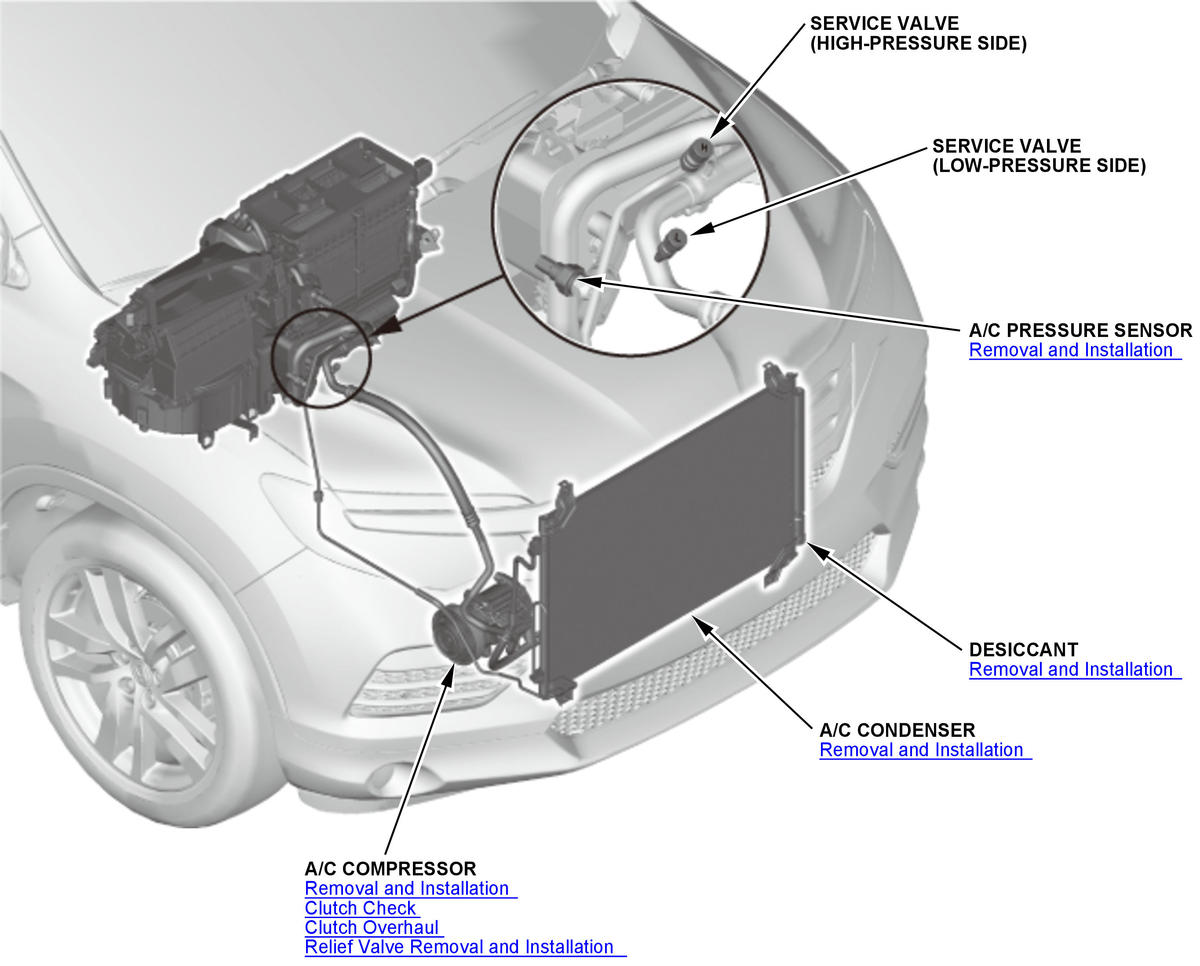

GHH309852

Courtesy of HONDA, U.S.A., INC.

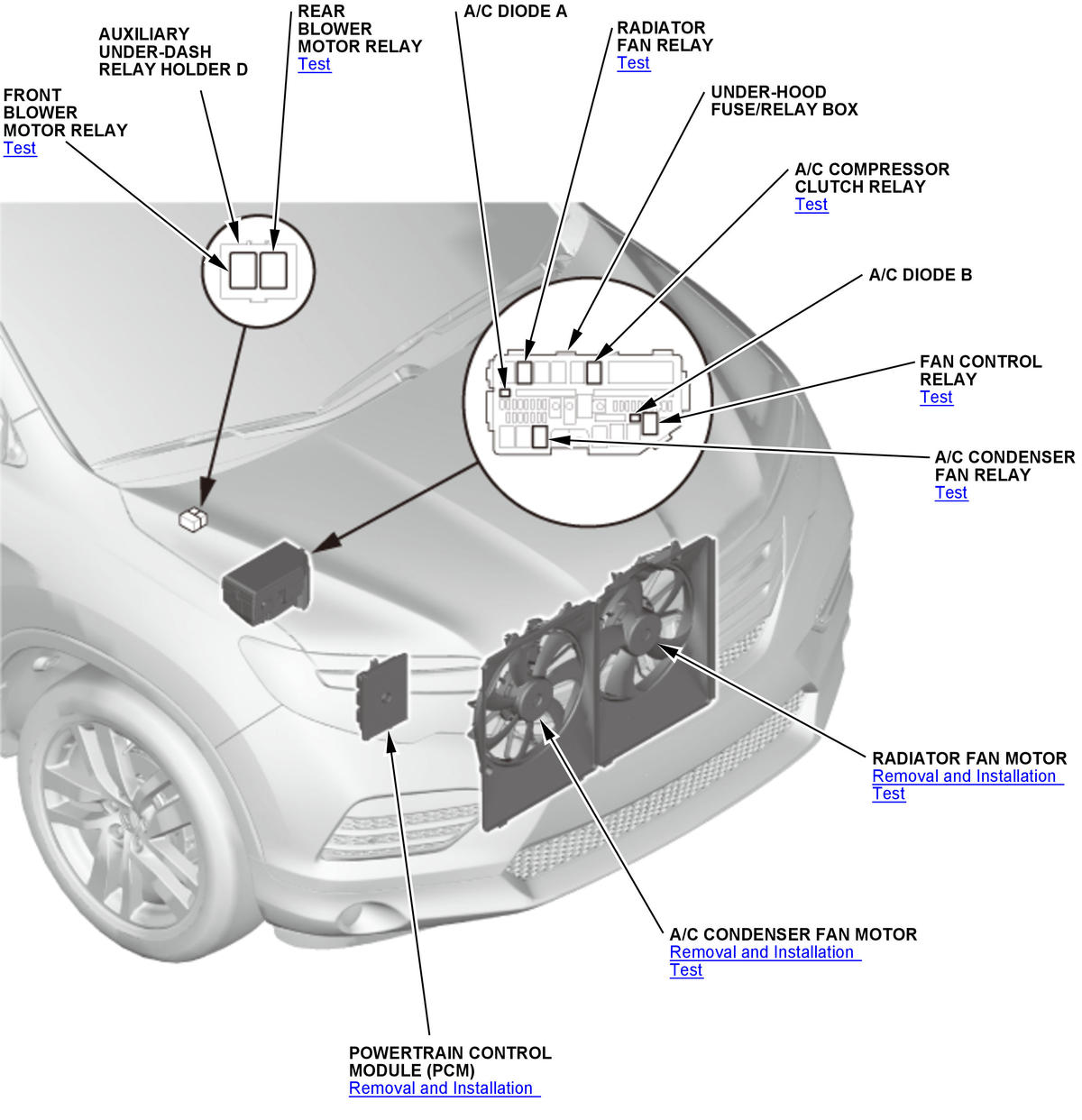

GHH309853

Courtesy of HONDA, U.S.A., INC.

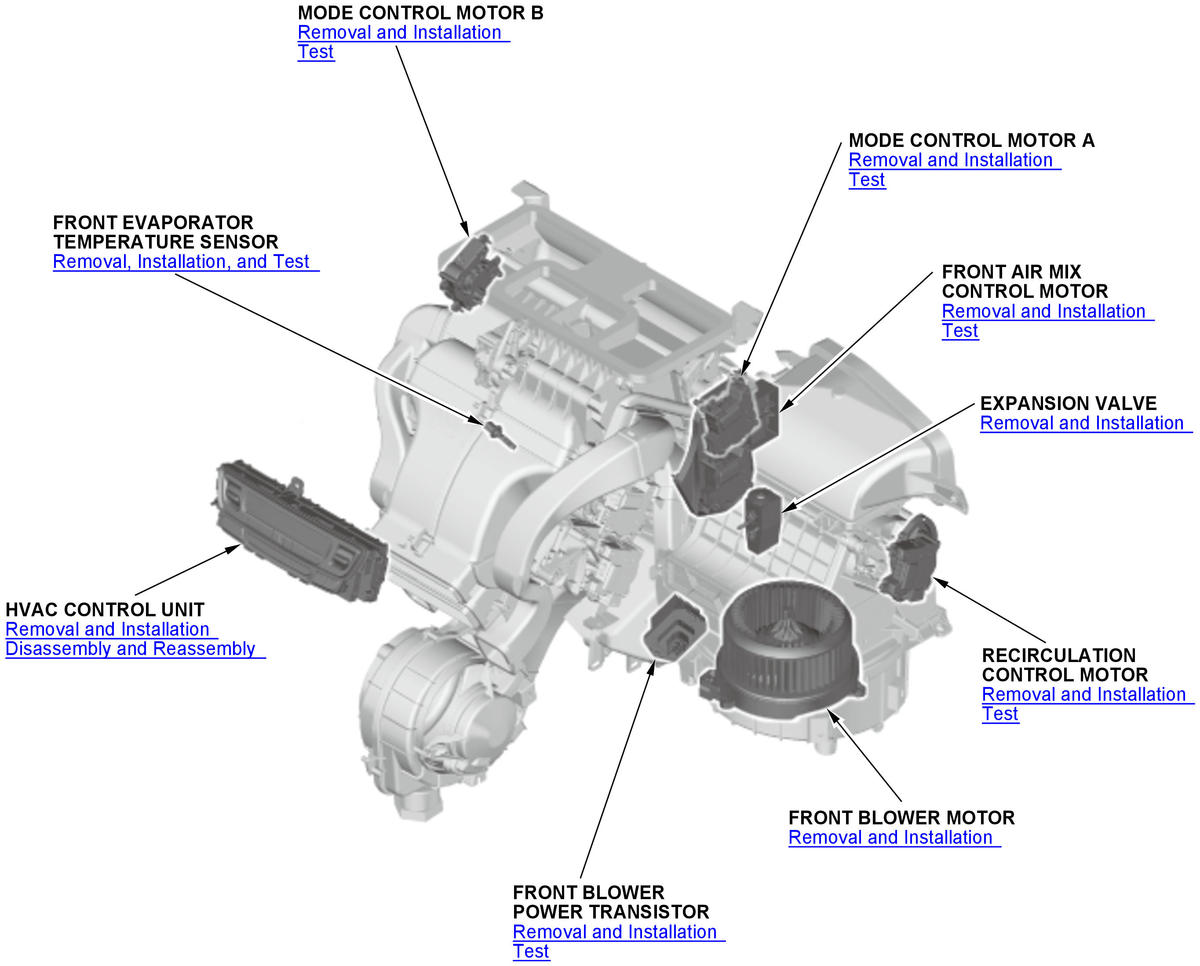

GHH309854

Courtesy of HONDA, U.S.A., INC.

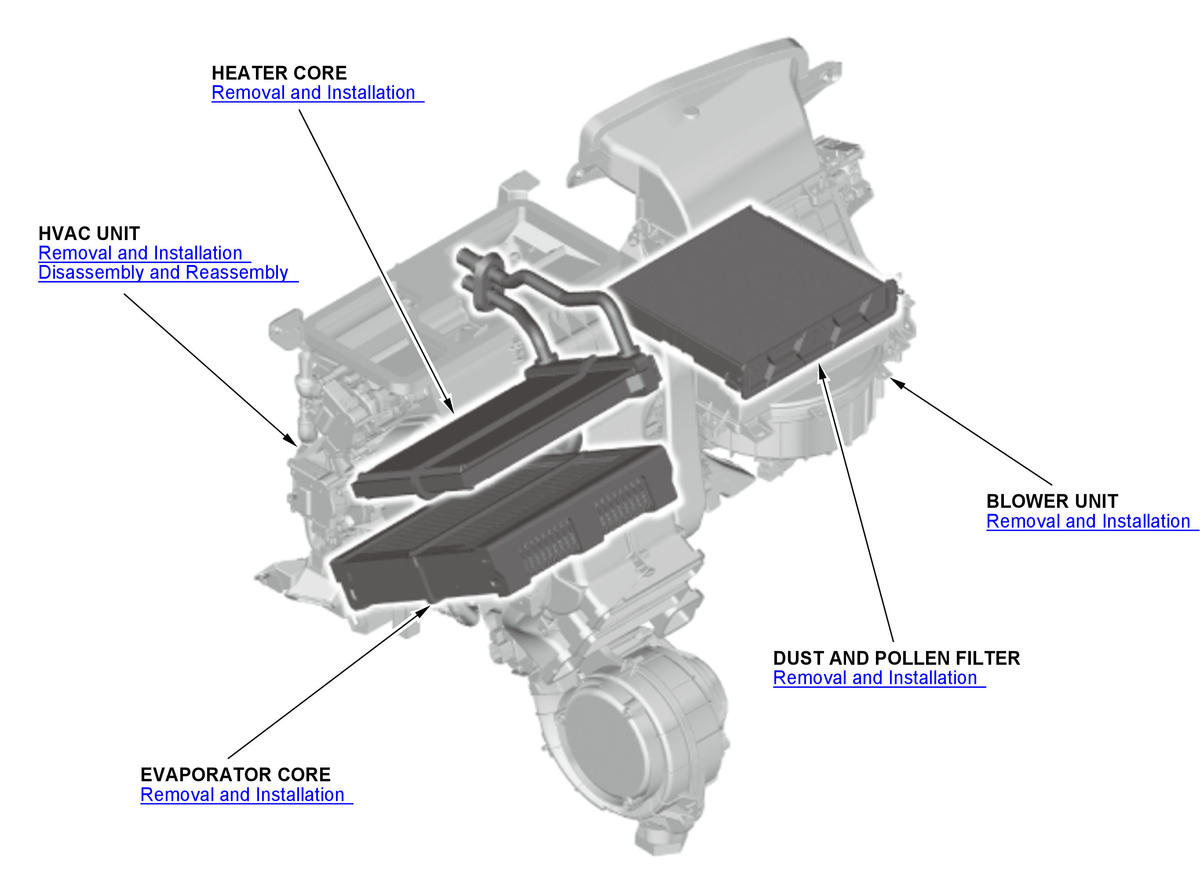

GHH309855

Courtesy of HONDA, U.S.A., INC.
