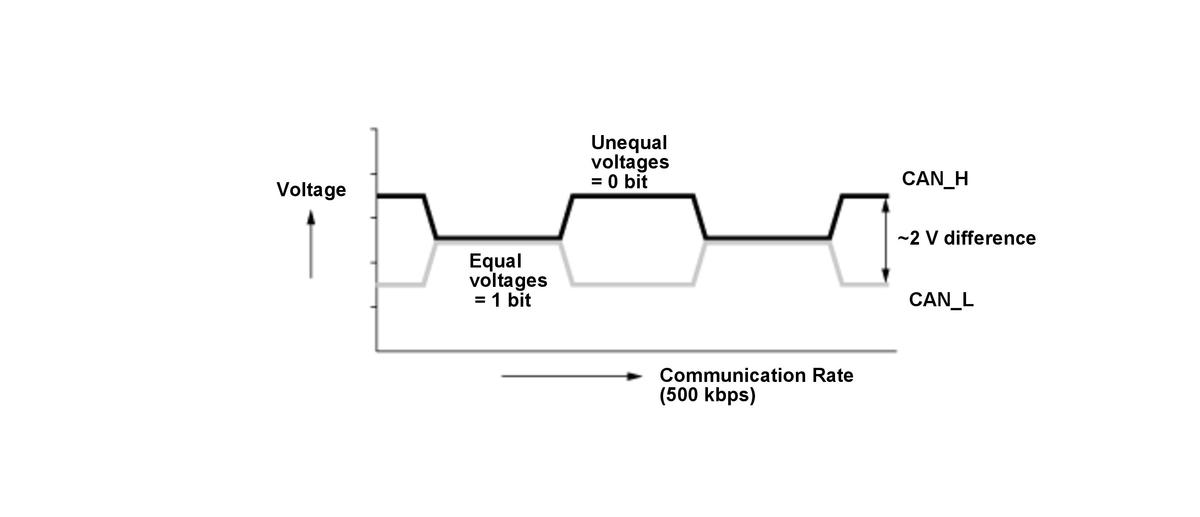

Typical CAN Bus Communication Operation

The F-CAN detects the differential voltage generated between two communication wires (CAN_H and CAN_L) and uses it as a signal level. This is a digital signal that indicates "1" when equal voltage is found and "0" when unequal voltage is found.

Courtesy of HONDA, U.S.A., INC.
