BSI Radar Unit Mounting Area Check: Adjustment

NOTE:  Unless otherwise indicated, illustration shows left of the vehicle; right of the vehicle is symmetrical.

Before Inspection:

• Do not make any bumper repairs in the areas over or near the two radar units on vehicles equipped with the blind spot information (BSI) system. The composition of the repair materials, and/or increased material thickness in the repaired area, may interfere with BSI radar unit operation.
• Clean the surface of the BSI radar unit.
• Make sure the suspension has not been modified.
• Make sure all the tire sizes are correct and that their pressure is correct.
• Make sure the fuel tank is full.
• Remove all cargo from the vehicle except the tool kit and the spare tire.
• Make sure the steering wheel is pointed straight ahead, and do not turn it after setting the vehicle.
• Shift the transmission to P position/mode, and apply the parking brake.
• When marking on the floor surface, use suitable tape to mark the exact locations.

Prepare the items shown:

• Felt-tip pen
• Tape

1. Body Center-Line - Set
2. BSI Radar Unit - Remove
3. Upper Body Measuring Dimensions - BSI Radar Unit Mounting Positions

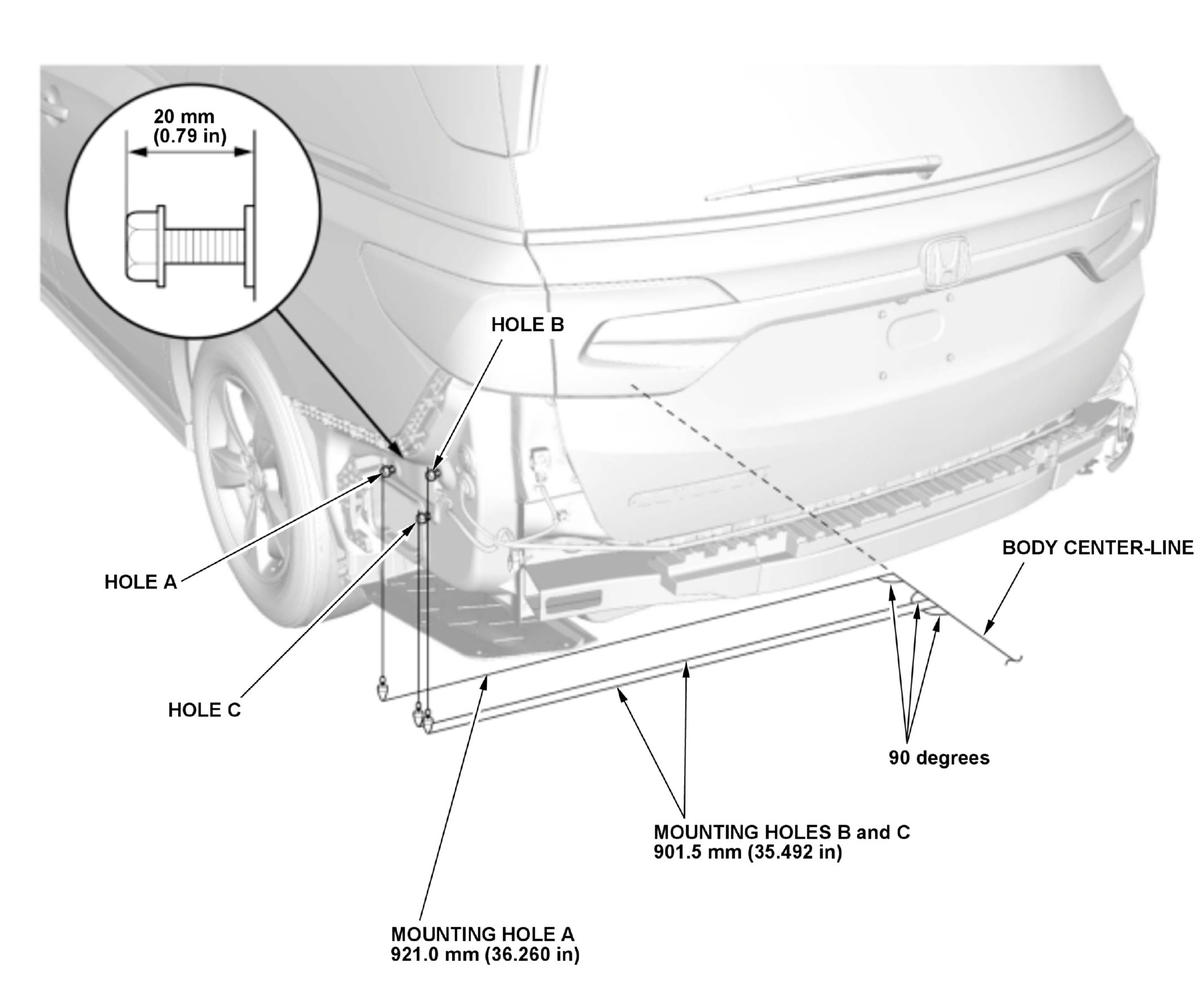

   1. Install bolts on each hole of the body panel.

   2. Measure the length from the tip of the bolt installed to each hole A, B, and C to the body center-line.

   NOTE:  If the measured lengths between the body center-line and hole A to C are different from the standard, take the vehicle to a body repair shop to have the panel adjusted to standard.

   Courtesy of HONDA, U.S.A., INC.

4. BSI Radar Unit - Install
5. Rear Bumper - Install
