Auxiliary Jack Assembly Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

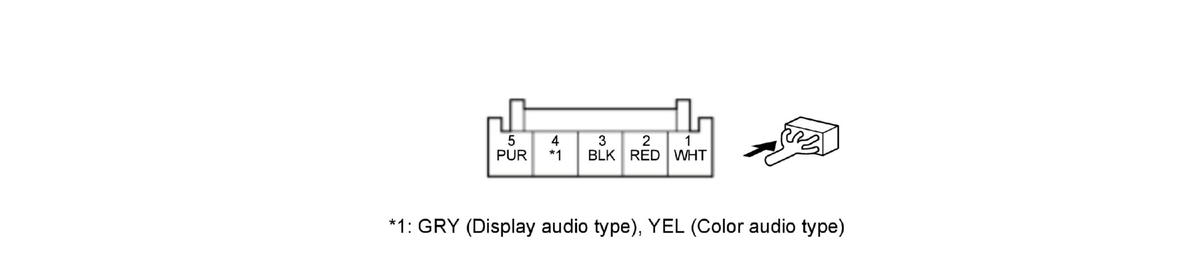

Auxiliary Jack Assembly 5P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | AUX R CH | Outputs auxiliary sound signal |
| 2 | AUX L CH | Outputs auxiliary sound signal |
| 3 | AUX SGND | Ground for auxiliary sound signal |
| 4 | SH AUX *1 | Shield for terminals No. 1, No. 2, and No. 3 |
| AUX GND *2 | Ground for auxiliary jack assembly connection signal | |
| 5 | AUX DET | Connection signal for auxiliary jack assembly |
*1: Display audio type
*2: Color audio type
