Body 7
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

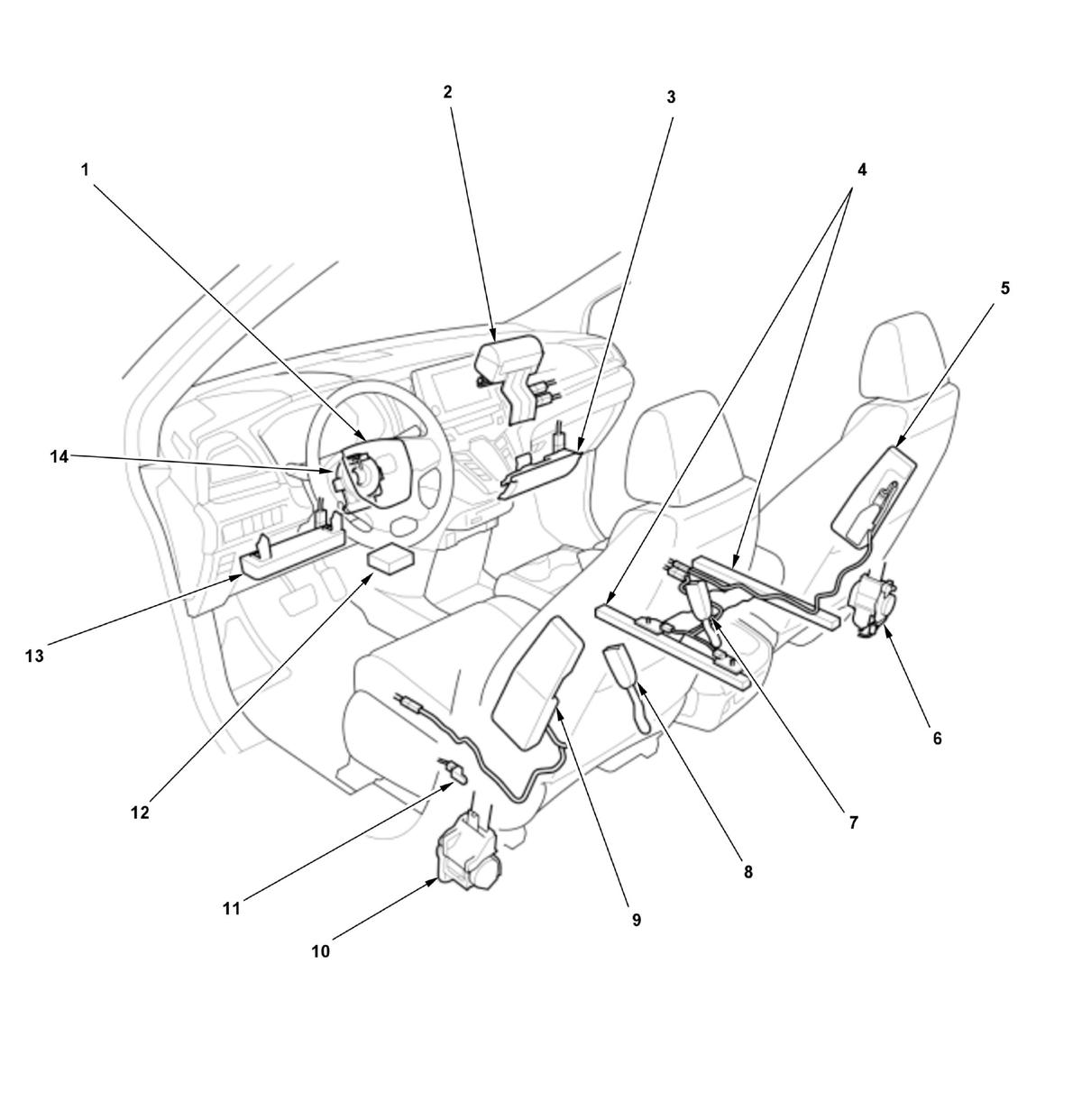

Body 7 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | Driver's Airbag
|
|
| 2 | Front Passenger's Airbag | SRS (Supplemental Restraint System) |
| 3 | Front Passenger's Knee Airbag | SRS (Supplemental Restraint System) |
| 4 | Front Passenger's Weight Sensors | SRS (Supplemental Restraint System) |
| 5 | Front Passenger's Side Airbag | SRS (Supplemental Restraint System) |
| 6 | Front Passenger's Front Seat Belt Tensioner | SRS (Supplemental Restraint System) |
| 7 | Front Passenger's Seat Belt Buckle Switch | Reminder Systems |
| 8 | Driver's Seat Belt Buckle Switch | Reminder Systems |
| 9 | Driver's Side Airbag | SRS (Supplemental Restraint System) |
| 10 | Driver's Front Seat Belt Tensioner | SRS (Supplemental Restraint System) |
| 11 | Driver's Seat Position Sensor | SRS (Supplemental Restraint System) |
| 12 | SRS Unit | |
| 13 | Driver's Knee Airbag | SRS (Supplemental Restraint System) |
| 14 | Cable Reel |
