Body 5
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

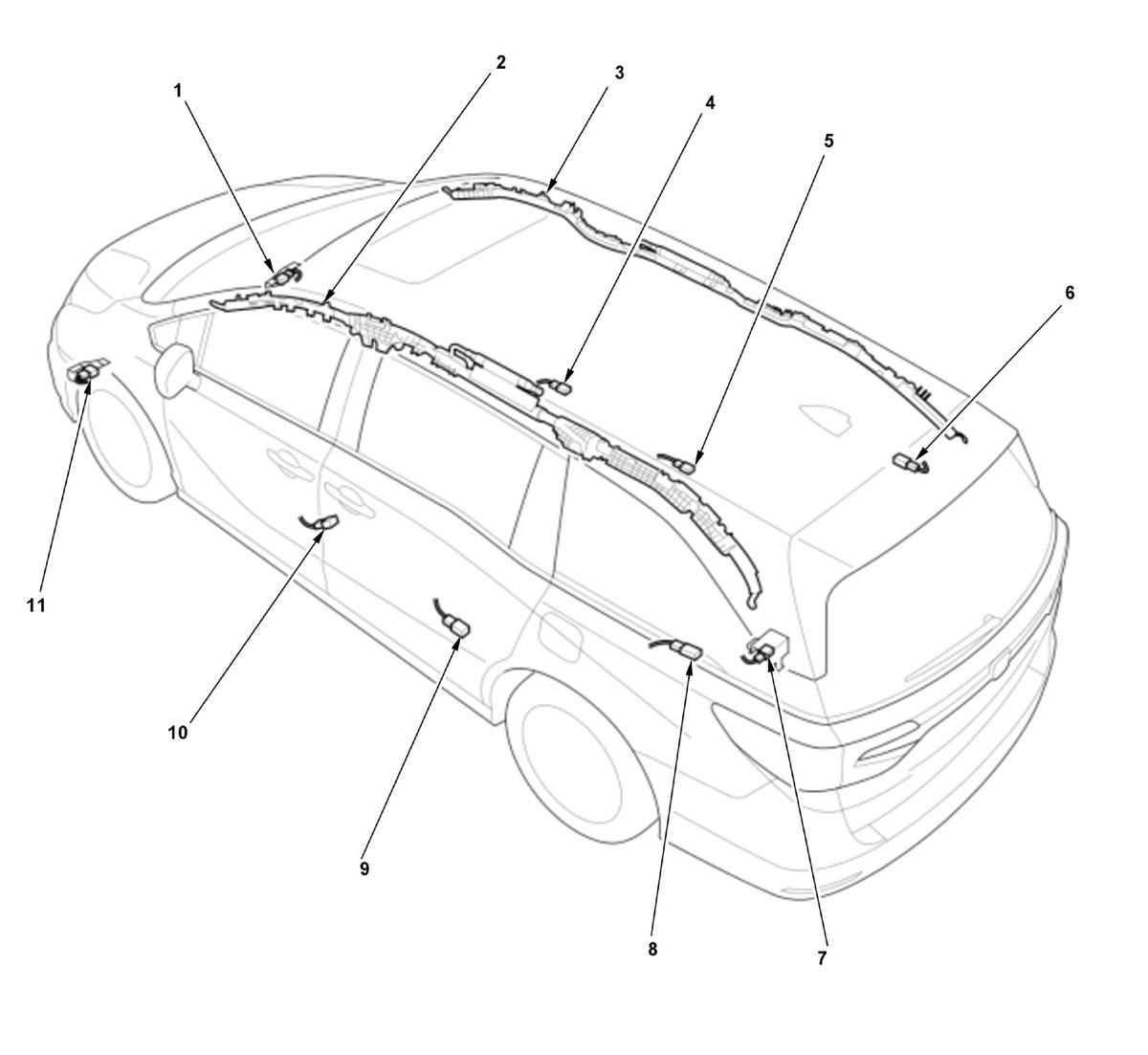

Body 5 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | Right Front Impact Sensor | SRS (Supplemental Restraint System) |
| 2 | Left Side Curtain Airbag | SRS (Supplemental Restraint System) |
| 3 | Right Side Curtain Airbag | SRS (Supplemental Restraint System) |
| 4 | Right Side Impact Sensor (First) | SRS (Supplemental Restraint System) |
| 5 | Right Side Impact Sensor (Second) | SRS (Supplemental Restraint System) |
| 6 | Right Side Impact Sensor (Third) | SRS (Supplemental Restraint System) |
| 7 | Rear Safing Sensor | SRS (Supplemental Restraint System) |
| 8 | Left Side Impact Sensor (Third) | SRS (Supplemental Restraint System) |
| 9 | Left Side Impact Sensor (Second) | SRS (Supplemental Restraint System) |
| 10 | Left Side Impact Sensor (First) | SRS (Supplemental Restraint System) |
| 11 | Left Front Impact Sensor | SRS (Supplemental Restraint System) |
