Body 3
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

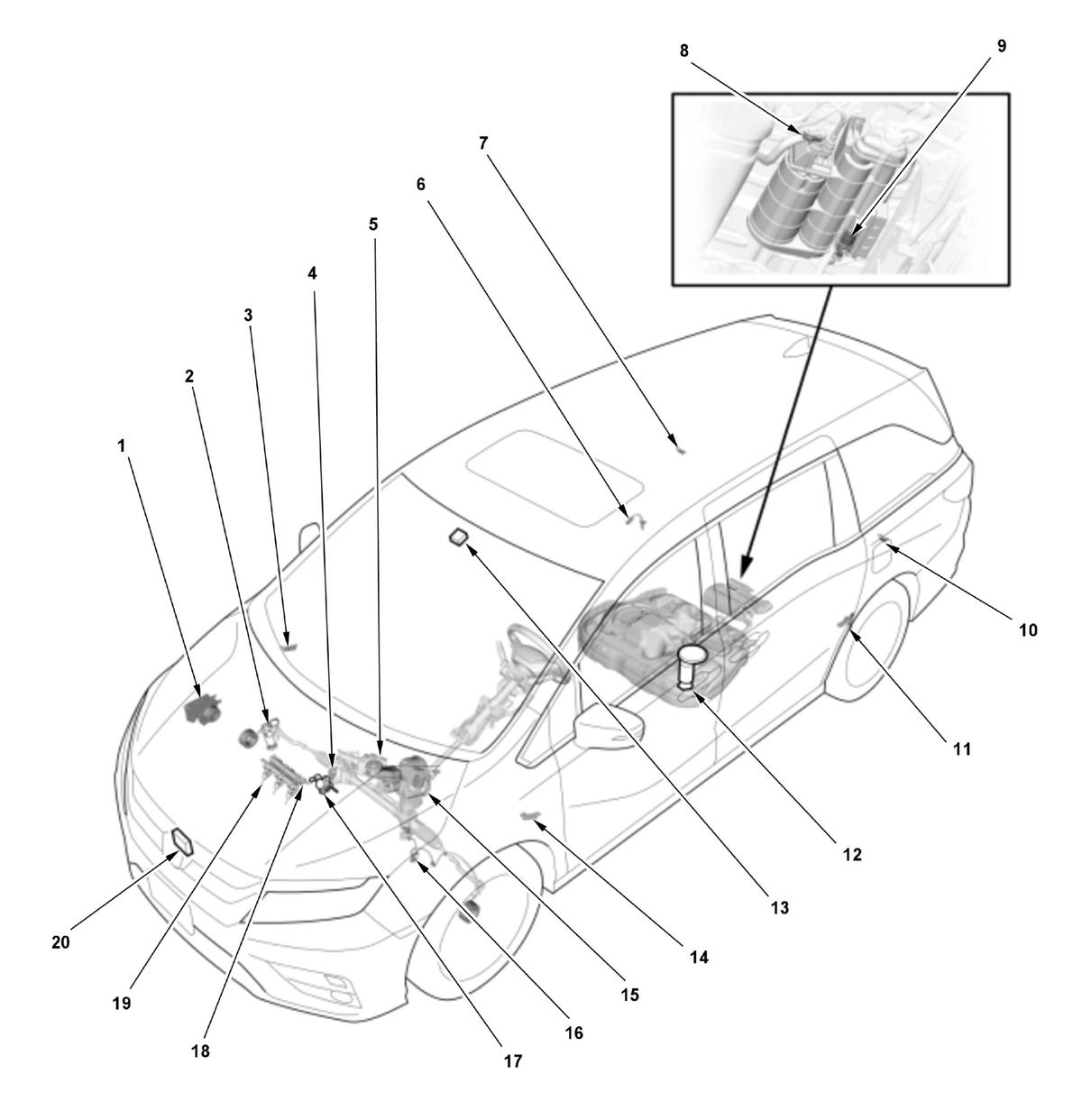

Body 3 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | VSA Modulator-Control Unit | |
| 2 | Right-Front Wheel Speed Sensor | VSA System Components |
| No. | Component | Related System |
|---|---|---|
| 3 | Right-Front LF Antenna/Initiator | |
| 4 | Evaporative Emission (EVAP) Canister Purge Valve | Fuel and Emissions Systems |
| 5 | EPS Motor/Control Unit | |
| 6 | Right-Rear Wheel Speed Sensor | VSA System Components |
| 7 | Right-Rear LF Antenna/Initiator | |
| 8 | Fuel Tank Pressure (FTP) Sensor | Fuel and Emissions Systems |
| 9 | Evaporative Emission (EVAP) Canister Vent Shut Valve | Fuel and Emissions Systems |
| 10 | Left-Rear LF Antenna/Initiator | |
| 11 | Left-Rear Wheel Speed Sensor | VSA System Components |
| 12 | Fuel Tank Unit
|
Gauges |
| 13 | Multipurpose Camera Unit | |
| 14 | Left-Front LF Antenna/Initiator | |
| 15 | Electric Brake Booster | |
| 16 | Left-Front Wheel Speed Sensor | VSA System Components |
| 17 | High Pressure Fuel Pump | Fuel and Emissions Systems |
| 18 | Fuel Rail
|
Fuel and Emissions Systems |
| 19 | Injectors | Fuel and Emissions Systems |
| 20 | Millimeter Wave Radar |
