Body 1

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HONDA, U.S.A., INC.

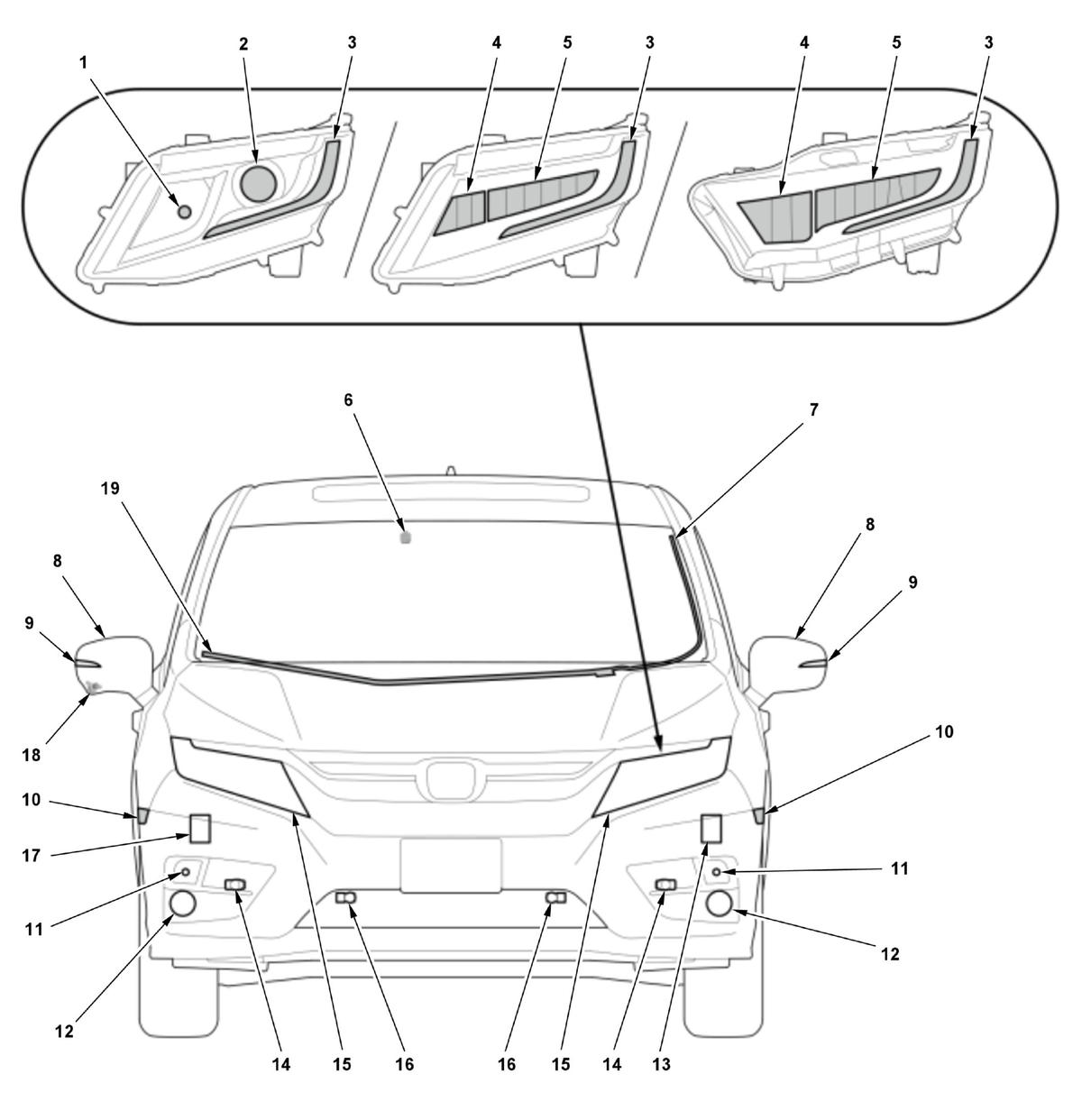

Body 1 Legend

No.	Component	Related System
1	Headlight (High Beam)/Daytime Running Light (DRL)	Exterior Lights
2	Headlight (Low Beam)	Exterior Lights Keyless/Power Door Locks/Security System
3	Front Parking/Daytime Running Light (DRL)	Exterior Lights Keyless/Power Door Locks/Security System
4	Headlight (High Beam) (LED)	Exterior Lights
5	Headlight (Low Beam) (LED)	Exterior Lights Keyless/Power Door Locks/Security System
6	Automatic Lighting/Rain Sensor	Exterior Lights Wipers/Washers Auto High-Beam (High-Beam Support System)
7	Heated Windshield Wiper Area (Side)	Heated Windshield Wiper Area
8	Automatic Dimming Outside Mirror	Automatic Dimming Mirrors
9	Side Turn Signal Light	Keyless/Power Door Locks/Security System Power Tailgate Turn Signal/Hazard Warning Lights
10	Front Side Marker Light	Exterior Lights Keyless/Power Door Locks/Security System
11	Front Turn Signal/Parking Light Front Turn Signal Light	Exterior Lights Keyless/Power Door Locks/Security System Power Tailgate Turn Signal/Hazard Warning Lights
12	Fog Light	Exterior Lights
13	Horn (Low)	Horns Keyless/Power Door Locks/Security System
14	Front Corner Sensor	Parking and Back-Up Sensor System
15	Headlight Assembly	Exterior Lights Keyless/Power Door Locks/Security System Auto High-Beam (High-Beam Support System)
16	Front Center Sensor	Parking and Back-Up Sensor System
17	Horn (High)	Horns Keyless/Power Door Locks/Security System
18	LaneWatch Camera	Audio and Visual System LaneWatch
19	Heated Windshield Wiper Area (Bottom)	Heated Windshield Wiper Area
