TPMS System Description - System Diagram

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

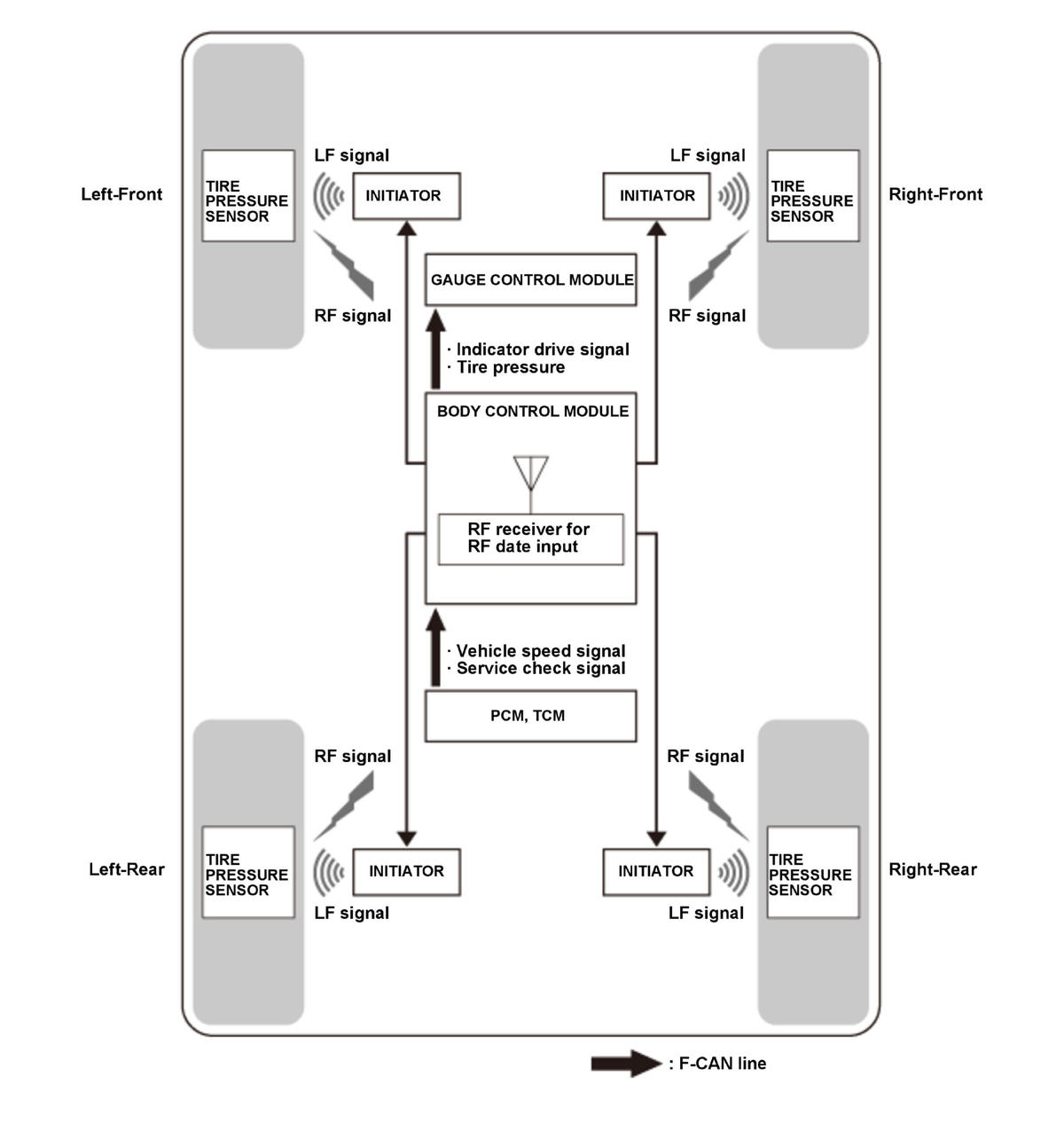

The system diagram of the TPMS is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

If a vehicle is equipped with keyless access function, the initiator and the LF antenna are integrated.

GHH448564Courtesy of HONDA, U.S.A., INC.
