Component Location Index

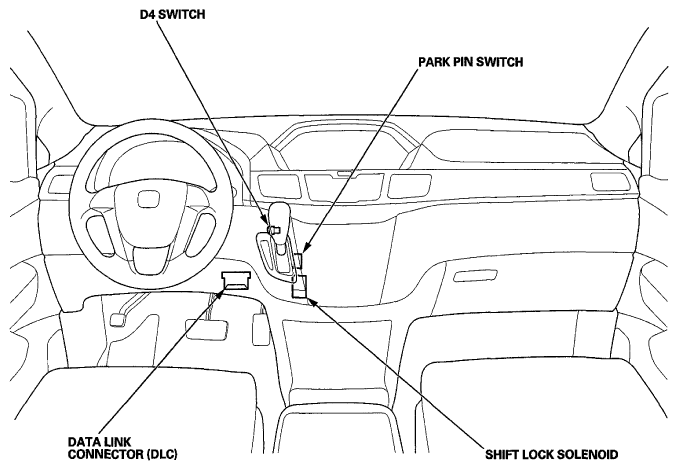

Fig 1: Identifying Automatic Transmission Component Location (1 Of 2)
G06968903Courtesy of AMERICAN HONDA MOTOR CO., INC.

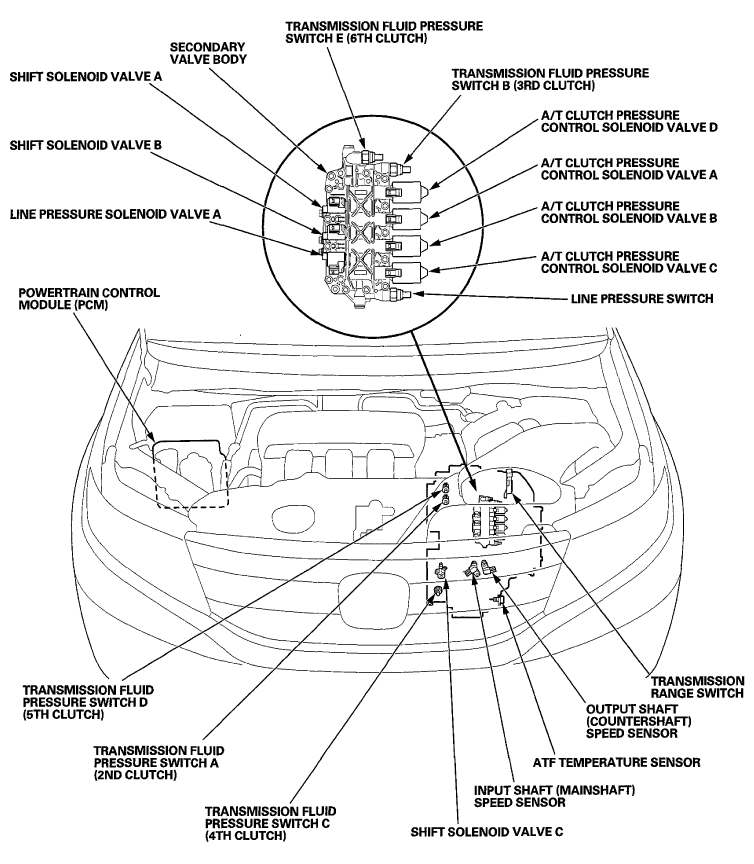

Fig 2: Identifying Automatic Transmission Component Location (2 Of 2)
G06968904Courtesy of AMERICAN HONDA MOTOR CO., INC.
