Component Location Index

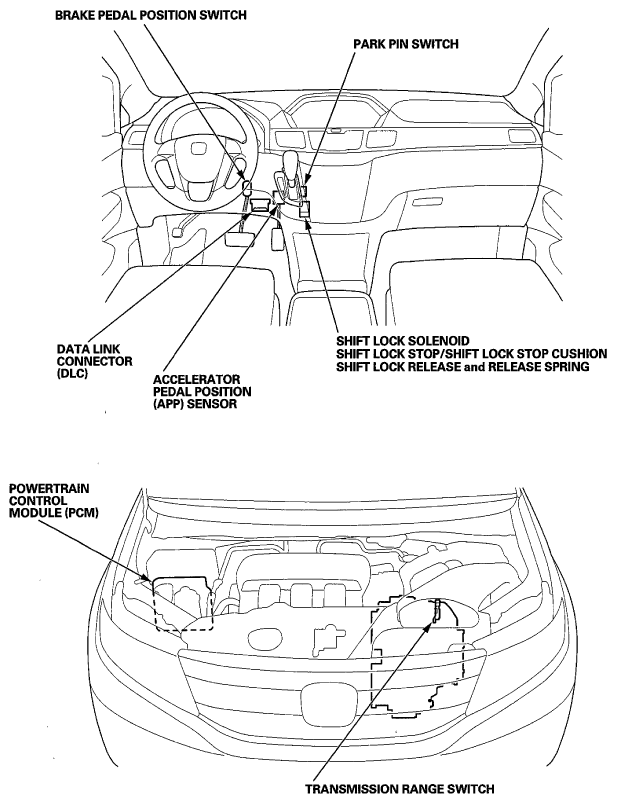

Fig 1: Identifying A/T Interlock System Component Location

G06969267

Courtesy of AMERICAN HONDA MOTOR CO., INC.
