Removal and Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Where icon is shown for further information continue to the information below.

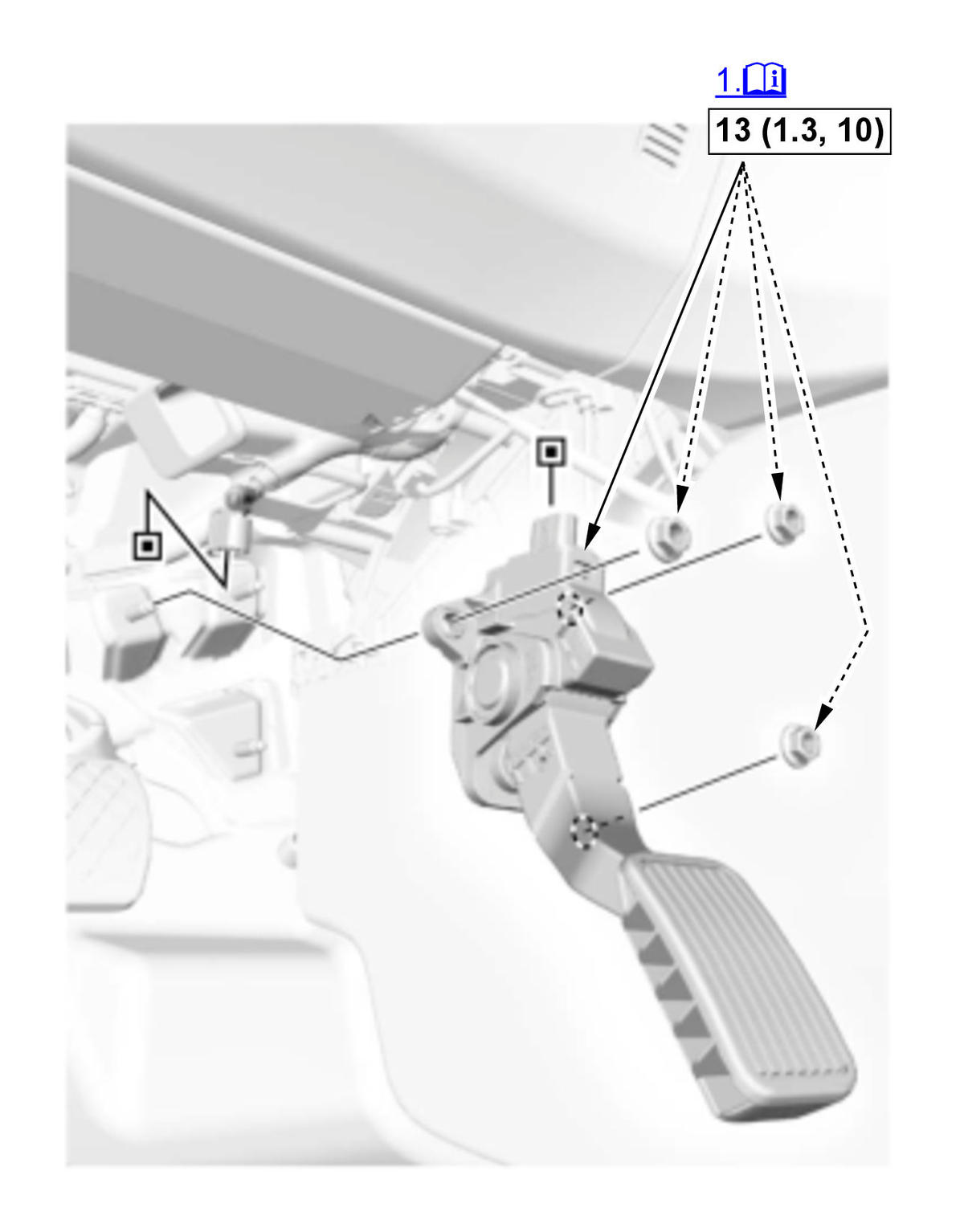

Fig 1: Accelerator Pedal Module Nuts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

Accelerator Pedal Module - Remove
NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
