Front Rocker Arm Oil Pressure Switch Removal/Installation

  1. Remove the engine cover (see step 7 on ENGINE REMOVAL ).
  2. Disconnect the front rocker arm oil pressure switch 1P connector (A).

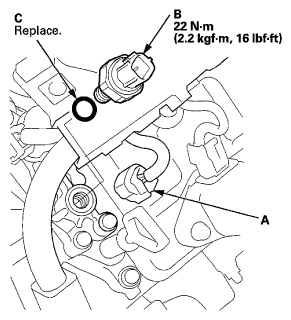

    Fig 1: Front Rocker Arm Oil Pressure Switch And 1P Connector And O-Ring With Torque Specifications
    G06966623Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the front rocker arm oil pressure switch (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
