Cruise Control Combination Switch Test/Replacement

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL AND INSTALLATION ) and disassemble the steering wheel (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
2. Remove the cruise control combination switch (A).

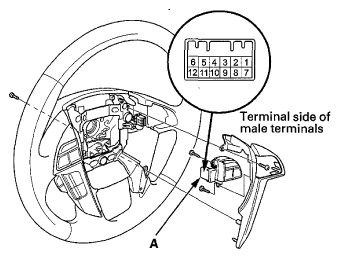

   Fig 1: Identifying Cruise Control Combination Switch Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each cruise control combination switch position according to the figure:
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the cruise control combination switch.
     Fig 2: Cruise Control Combination Switch Terminal Continuity

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the cruise control combination switch in the reverse order of removal.
