Power Door Lock Switch Test: Test

  1. Driver's Door Panel - Remove
  2. Driver's Door Lock Switch - Test
    GHH438375GHH438376Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH438375GHH438376Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

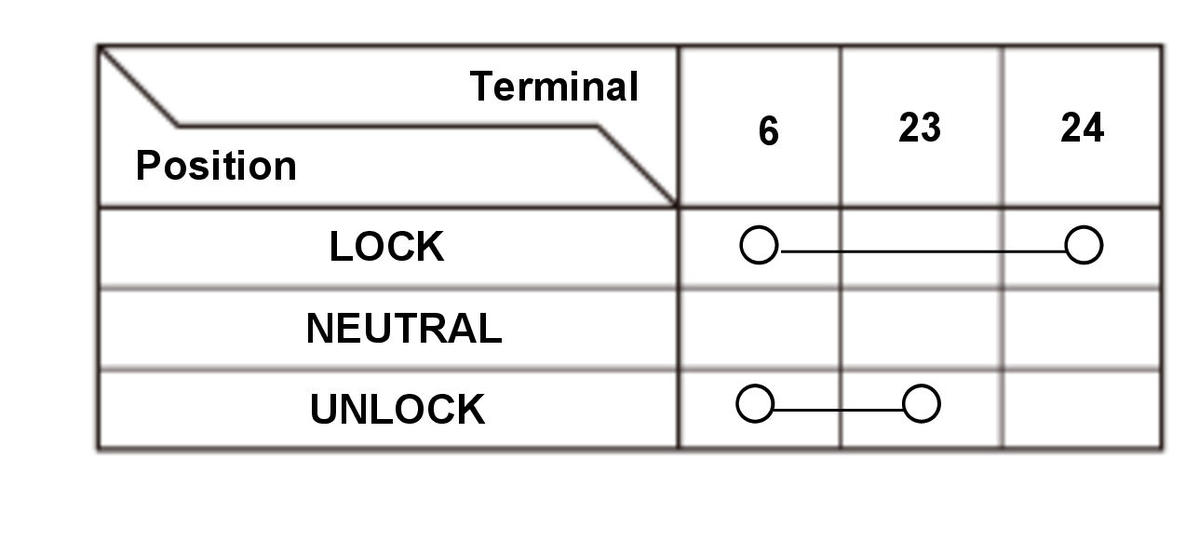

    		 1. Check for continuity between the terminals in each switch position according to the table.

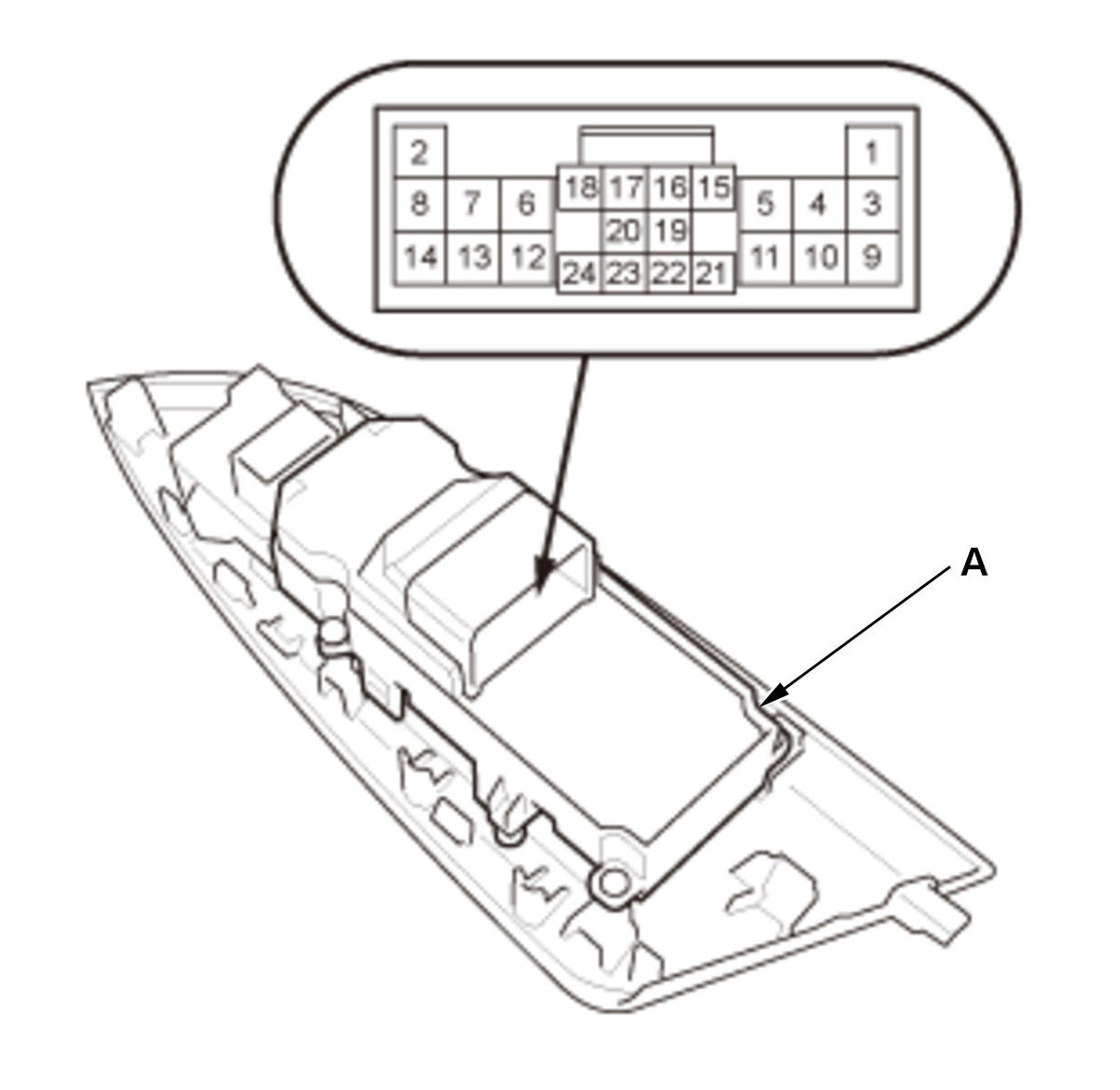

    2. If the continuity is not as specified, replace the power window master switch (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
