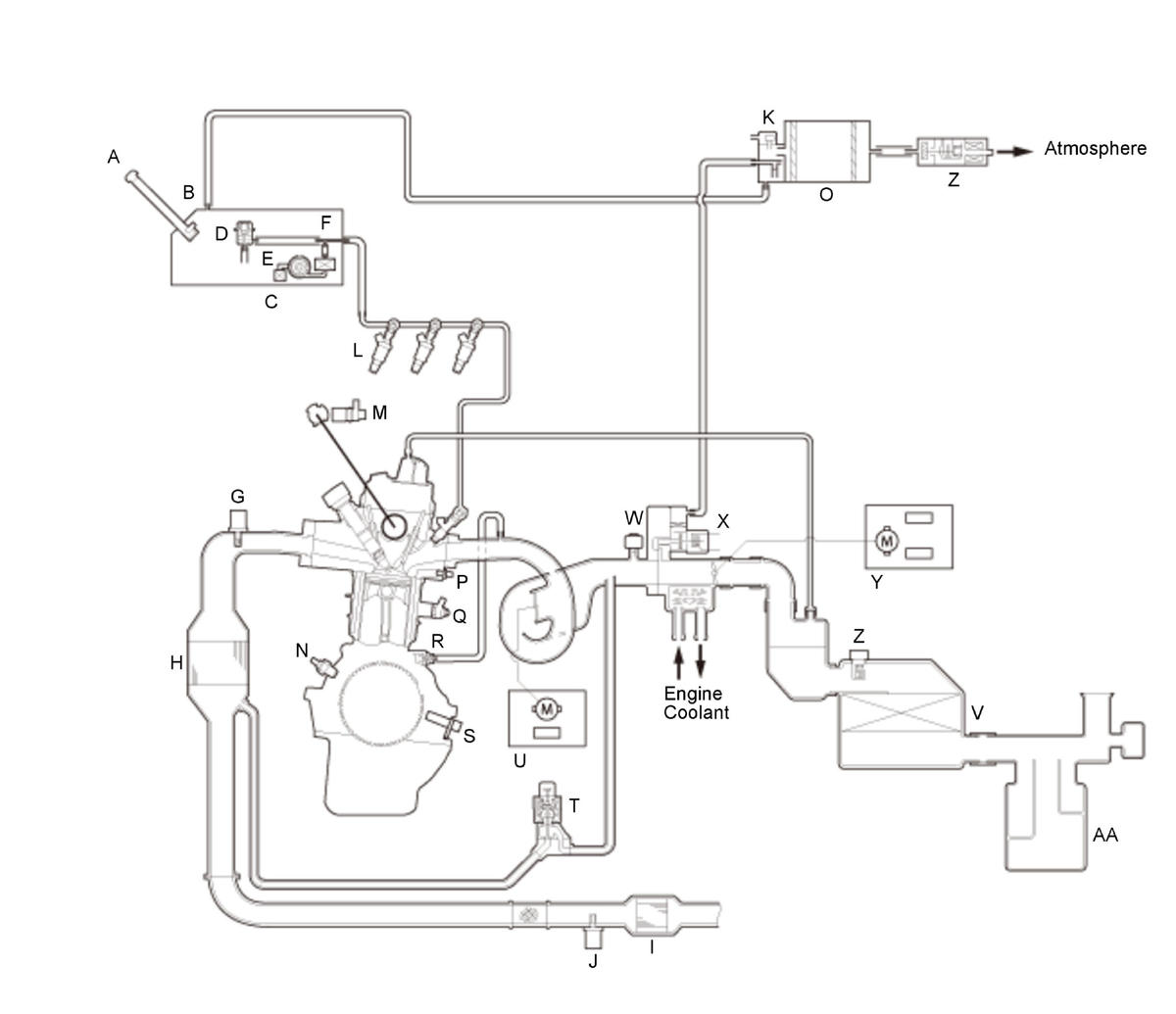

A |
FUEL FILL CAP |
|
O |
EVAPORATIVE EMISSION (EVAP) CANISTER |
| |
B |
FUEL TANK VAPOR/LIQUID SEPARATION VALVE |
|
P |
ENGINE COOLANT TEMPERATURE (ECT) SENSOR |
| |
C |
FUEL TANK |
|
Q |
KNOCK SENSOR |
| |
D |
FUEL PRESSURE REGULATOR |
|
R |
POSITIVE CRANKCASE VENTILATION (PCV) VALVE |
| |
E |
FUEL PUMP |
|
S |
CRANKSHAFT POSITION (CKP) SENSOR |
| |
F |
FUEL FILTER |
|
T |
EXHAUST GAS RECIRCULATION (EGR) VALVE and VALVE POSITION SENSOR |
| |
G |
AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) |
|
U |
INTAKE MANIFOLD TUNING (IMT) VALVE |
| |
H |
WARM UP THREEWAY CATALYTIC CONVERTER (WU-TWC) |
|
V |
AIR CLEANER |
| |
I |
UNDER-FLOOR THREEWAY CATALYTIC CONVERTER (UNDER-FLOOR TWC) |
|
W |
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR |
| |
J |
SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S) (SENSOR 2) |
|
X |
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE |
| |
K |
FUEL TANK PRESSURE (FTP) SENSOR |
|
Y |
THROTTLE BODY |
| |
L |
FUEL INJECTOR |
|
Z |
MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR |
| |
M |
CAMSHAFT POSITION (CMP) SENSOR |
|
AA |
EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE |
| |
N |
OIL PRESSURE SWITCH |
|
AB |
INTAKE AIR RESONATOR |
