PCV System Description - Overview

Some of the unburned gases in the combustion chamber will leak past the gap between the pistons and cylinders into the crankcase. The blow-by gases that include the unburned gases are returned through the positive crankcase ventilation or PCV valve and are burned. This prevents the blow-by gases from flowing into the atmosphere. In addition, the breather chamber of the cylinder block separates oil from blow-by gas, which prevents the oil from entering the combustion chamber.

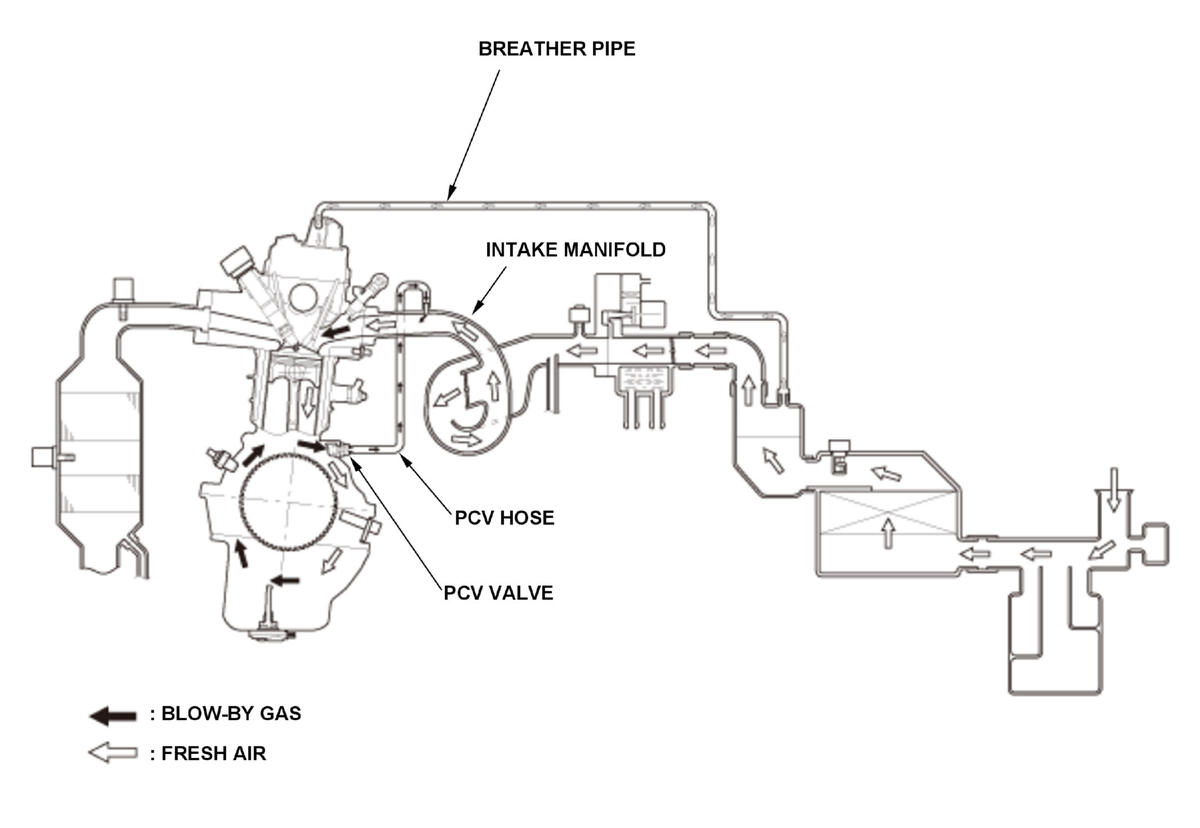

GHH435196Courtesy of HONDA, U.S.A., INC.
