Engine Block Assembly Component Location Index

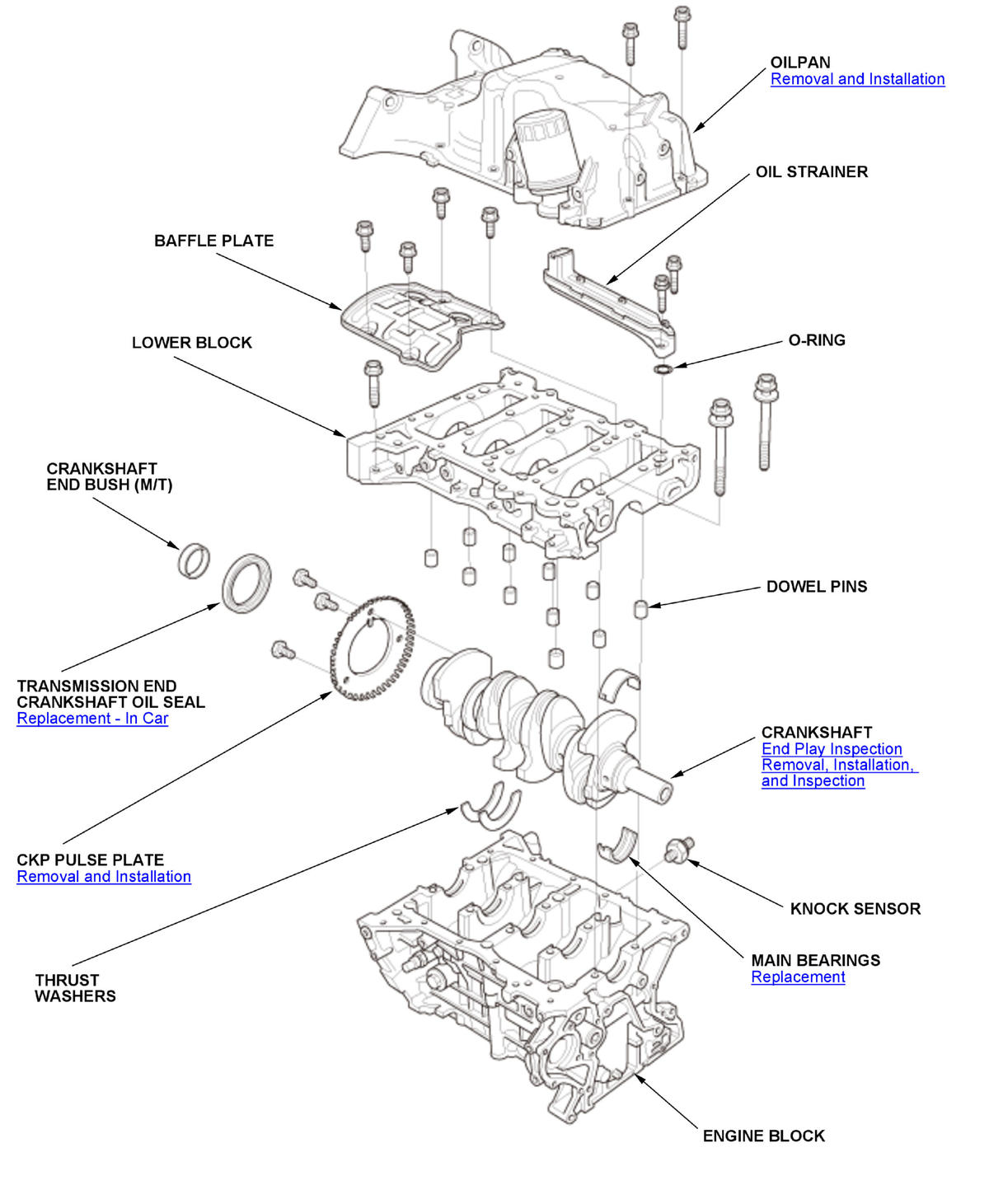

GHH435142

Courtesy of HONDA, U.S.A., INC.

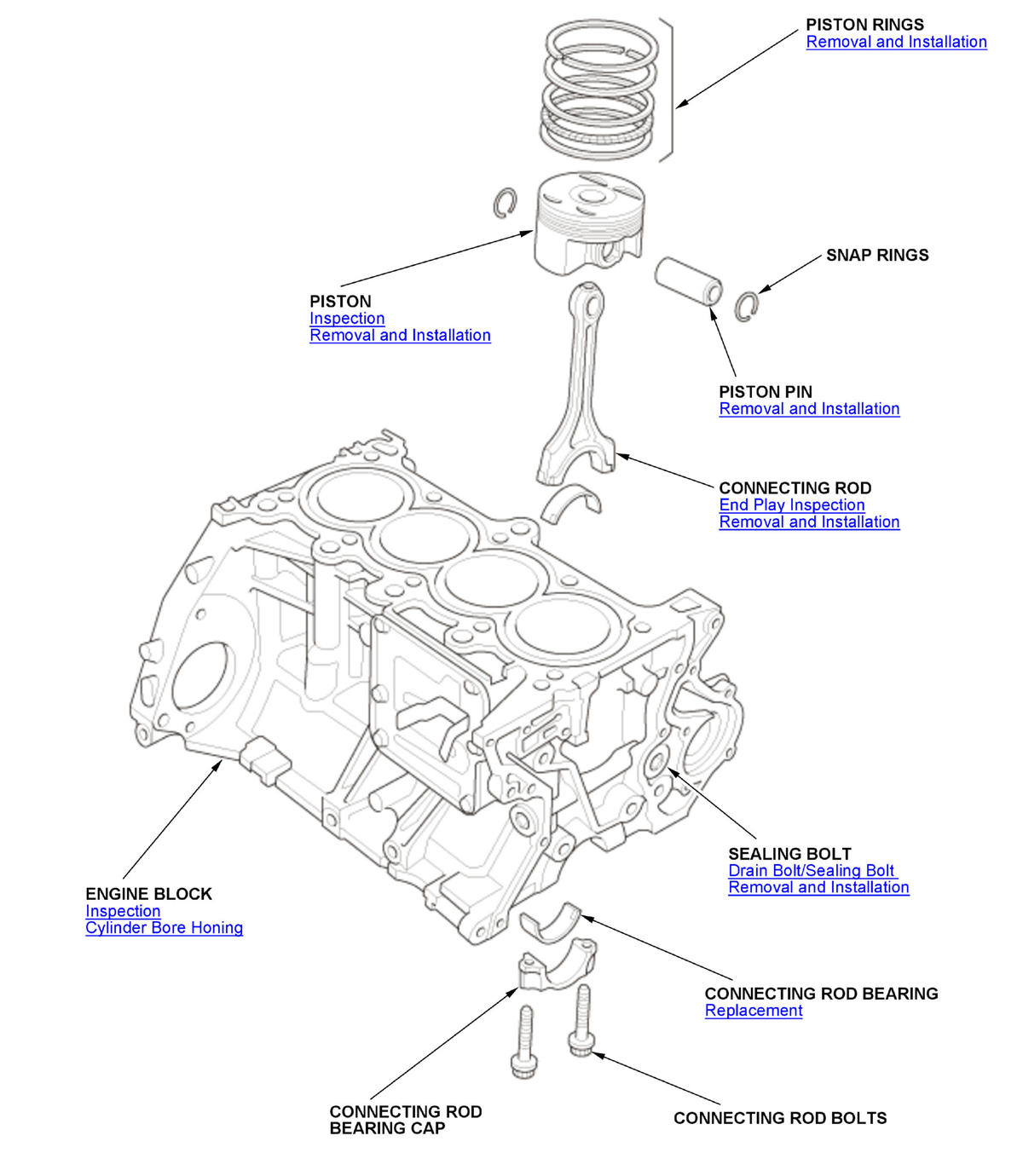

GHH435143

Courtesy of HONDA, U.S.A., INC.
