DTC P16E3

DTC P16E3  : PGM-FI-Battery Sensor LIN Communication Error

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• Check for loose terminals on the 12 volt battery sensor (battery negative (-) terminal).

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS, and wait for 10 seconds.

   -3. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P16E3 PGM-FI-Battery Sensor LIN Communication Error

   Is DTC P16E3 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the 12 volt battery sensor and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

2. DTC check

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P16E2 PGM-FI-ACG LIN Communication Error

   Is DTC P16E2 indicated?

   YES

   Go to step 3.

   NO

   Go to step 7.

3. Determine possible failure area (LIN line shorted, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

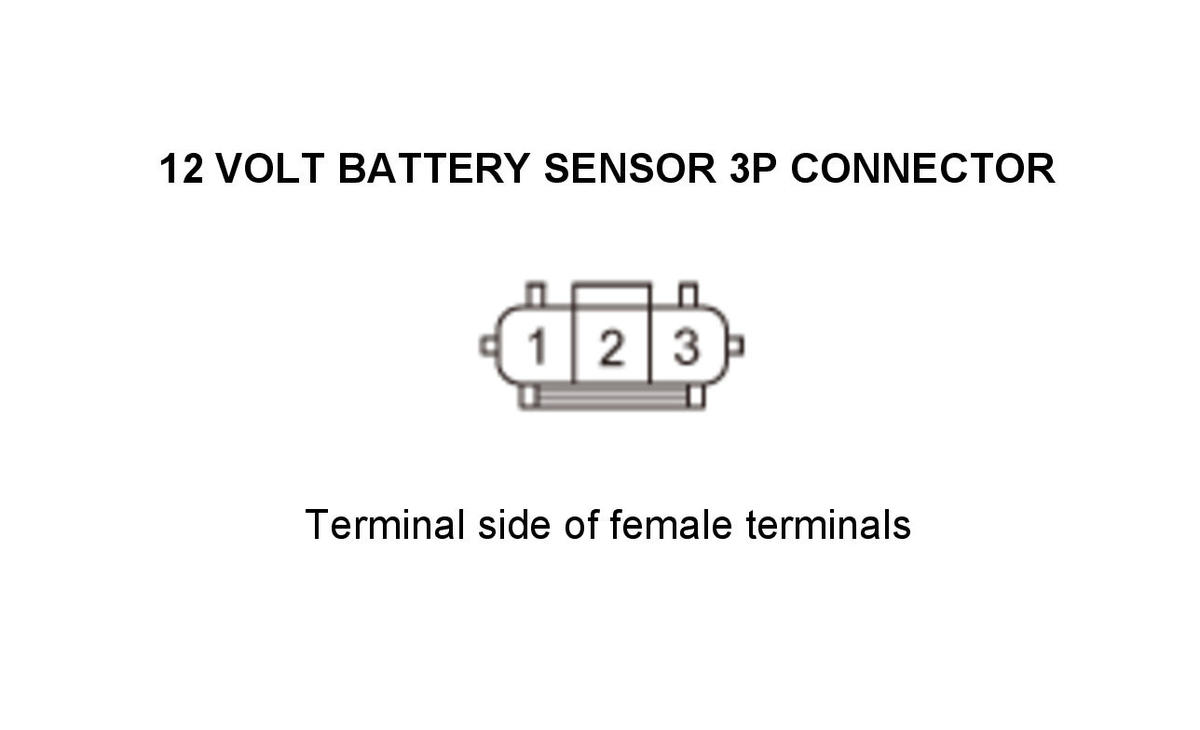

   12 volt battery sensor 3P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 3P connector: disconnected
   Test point 1	12 volt battery sensor 3P connector No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Shorted wire check (LIN line)

   -1. Jump the SCS line with the HDS.

   -2. Continue to check for continuity between the 12 volt battery sensor 3P connector terminal No. 3 and body ground, while disconnecting these connectors, one at a time:

   • Alternator 1P connector
   • PCM connector B (51P)

   Does continuity go away when one of the above connectors is disconnected?

   YES

   The LIN wire is OK. Replace the part that caused an open when it was disconnected.

   NO

   Repair a short in the LIN wire between the 12 volt battery sensor, the alternator, and the PCM (B31).

5. Determine possible failure area (12 volt battery sensor, others)

   -1. Reconnect the 12 volt battery sensor 3P connector.

   -2. Disconnect the following connector.

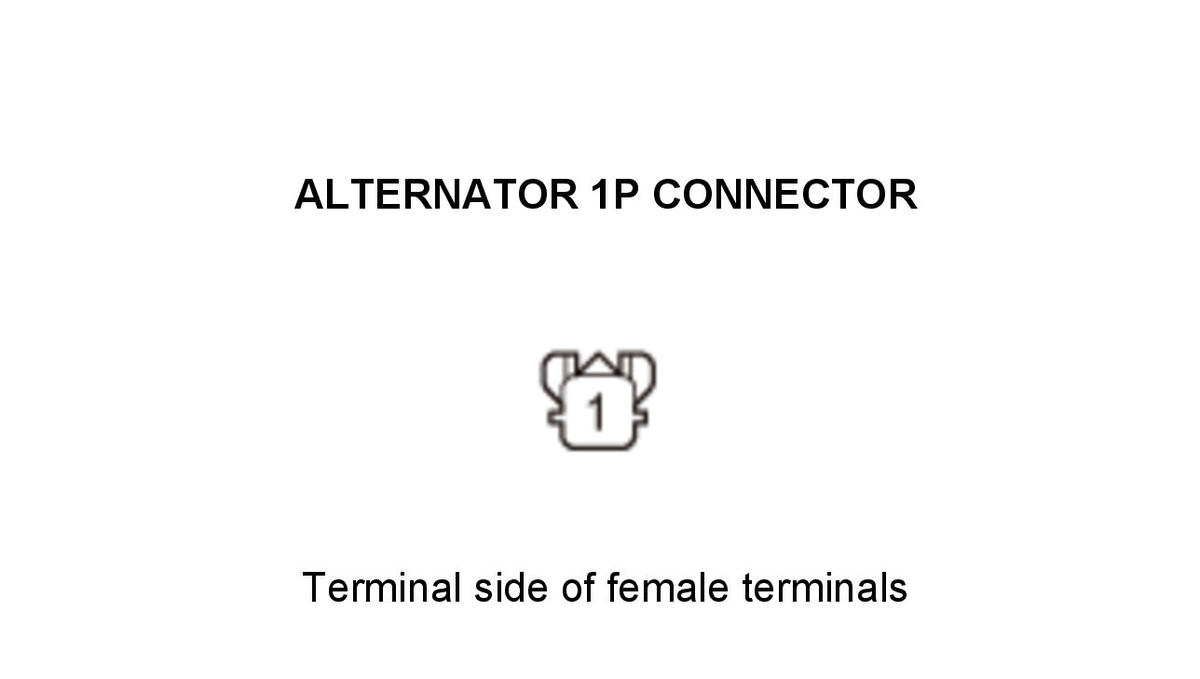

   Alternator 1P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   Test point 1	Alternator 1P connector No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the 12 volt battery sensor .

   NO

   Go to step 6.

6. Open wire check (LIN line)

   -1. Jump the SCS line with the HDS.

   -2. Disconnect the following connectors.

   12 volt battery sensor 3P connector

   PCM connector B (51P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   	12 volt battery sensor 3P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	PCM connector B (51P) No. 31
   Test point 2	12 volt battery sensor 3P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P16E3 goes away and the PCM was updated, troubleshooting is complete. If DTC P16E3 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the LIN wire between the PCM (B31) and the 12 volt battery sensor.

7. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. B18 (10 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Go to step 8.

   NO

   Repair a short in the +B HORN wire between the 12 volt battery sensor and the No. B18 (10 A) fuse in the under-hood fuse/relay box. Also replace the No. B18 (10 A) fuse.

8. Open wire check (+B HORN line)

   -1. Disconnect the following connector.

   12 volt battery sensor 3P connector

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 3P connector: disconnected
   Test point 1	12 volt battery sensor 3P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B HORN wire is OK. Go to step 9.

   NO

   Repair an open in the +B HORN wire between the 12 volt battery sensor and No. B18 (10 A) fuse in the under-hood fuse/relay box.

9. Open wire check (LIN line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector B (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 3P connector: disconnected
   	PCM connector B (51P): disconnected

   Test point 1	PCM connector B (51P) No. 31
   Test point 2	12 volt battery sensor 3P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN wire is OK. Replace the 12 volt battery sensor .

   NO

   Repair an open in the LIN wire between the PCM (B31) and the 12 volt battery sensor.
