DTC P0617

DTC P0617  : Starter Cut Relay Diagnosis Circuit High Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   STARTER CUT RELAY	More than 3.2	V

   Do the current condition (s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at starter cut relay 1, starter cut relay 2, and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

2. Determine possible failure area (START DIAG line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the No. B25 (7.5 A) fuse from the under-hood fuse/relay box.

   -3. Turn the vehicle to the ON mode.

   -4. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   STARTER CUT RELAY	More than 3.2	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 4.

   NO

   Go to step 3.

3. Relay check

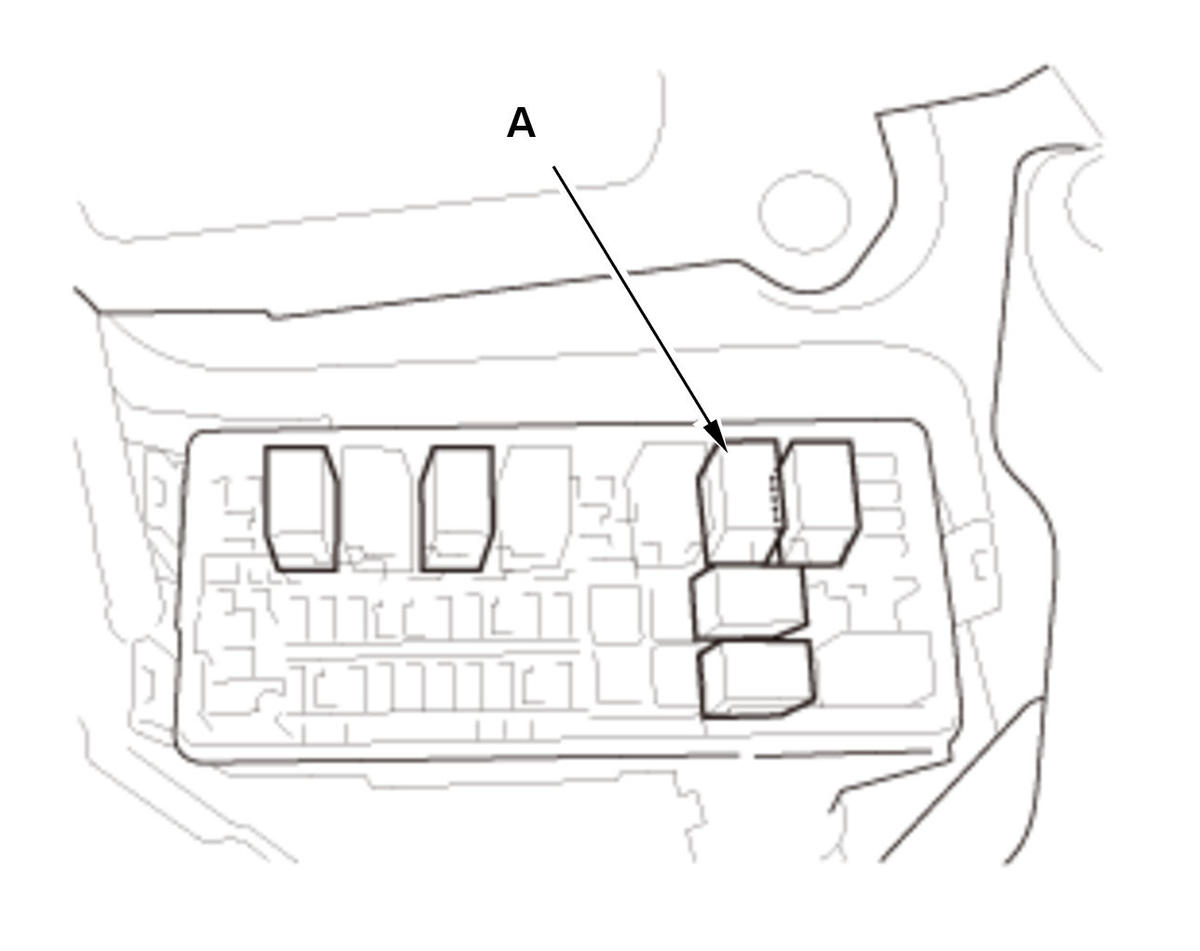

   -1. Remove starter cut relay 1 (A) from the under-hood fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

   -2. Test starter cut relay 1 .

   Is starter cut relay 1 OK ?

   YES

   Starter cut relay 1 is OK. Check for poor connections or loose terminals at starter cut relay 1, starter cut relay 2, and the PCM. If needed replace the under-hood fuse/relay box .

   NO

   Replace starter cut relay 1.

4. Shorted wire check (START DIAG line to power)

   -1. Jump the SCS line with the HDS

   -2. Disconnect the following connector.

   PCM connector A (51P)

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   	PCM connector A (51P): disconnected
   	No. B25 (7.5 A) fuse: removed
   Test point 1	PCM connector A (51P) No. 24
   Test point 2	Body ground

   Is there about 0.1 V or less?

   YES

   The START DIAG wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0617 goes away and the PCM was updated, troubleshooting is complete. If DTC P0617 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair a short to power in the START DIAG wire between the No. B25 (7.5 A) fuse and the PCM (A24).
