DTC P0571  : Brake Pedal Position Switch Circuit Malfunction

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• If the accelerator pedal is pressed while pressing the brake pedal lightly and continuously for 5 minutes or more, this DTC will be stored.

DTC (PGM-FI)

1. Brake lights check 1

   -1. Check the brake lights without the brake pedal pressed.

   Do the brake lights stay on?

   YES

   Go to step 9.

   NO

   Go to step 2

2. Brake lights check 2

   -1. Check the brake lights with the brake pedal pressed.

   Do the brake lights come on?

   YES

   Go to step 3.

   NO

   Go to step 5.

3. Brake pedal position switch signal check

   -1. Turn the vehicle to the ON mode.

   -2. Check the parameter (s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   BRAKE SWITCH

   Does the signal change ON and OFF when the brake pedal is pressed and released?

   YES

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the brake pedal position switch and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

   NO

   Go to step 4.

4. Open wire check (BRK DIAG line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector A (51P)

   -4. Press the brake pedal, and measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector A (51P): disconnected
   	Brake pedal pressed
   Test point 1	PCM connector A (51P) No. 13
   Test point 2	Body ground

   Is there battery voltage?

   YES

   The BRK DIAG wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0571 goes away and the PCM was updated, troubleshooting is complete. If DTC P0571 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the BRK DIAG wire between the PCM (A13) and the brake pedal position switch.

5. Brake pedal position switch check

   -1. Test the brake pedal position switch .

   Is the brake pedal position switch normal?

   YES

   Go to step 6.

   NO

   Replace the brake pedal position switch .

6. Fuse check

   -1. Check the following fuse.

   Fuse	No. B6 (10 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Go to step 7.

   NO

   Replace the No. B6 (10 A) fuse. Also check for a short to ground on the No. B6 (10 A) fuse circuit if needed.

7. Open wire check (+B STOP line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode

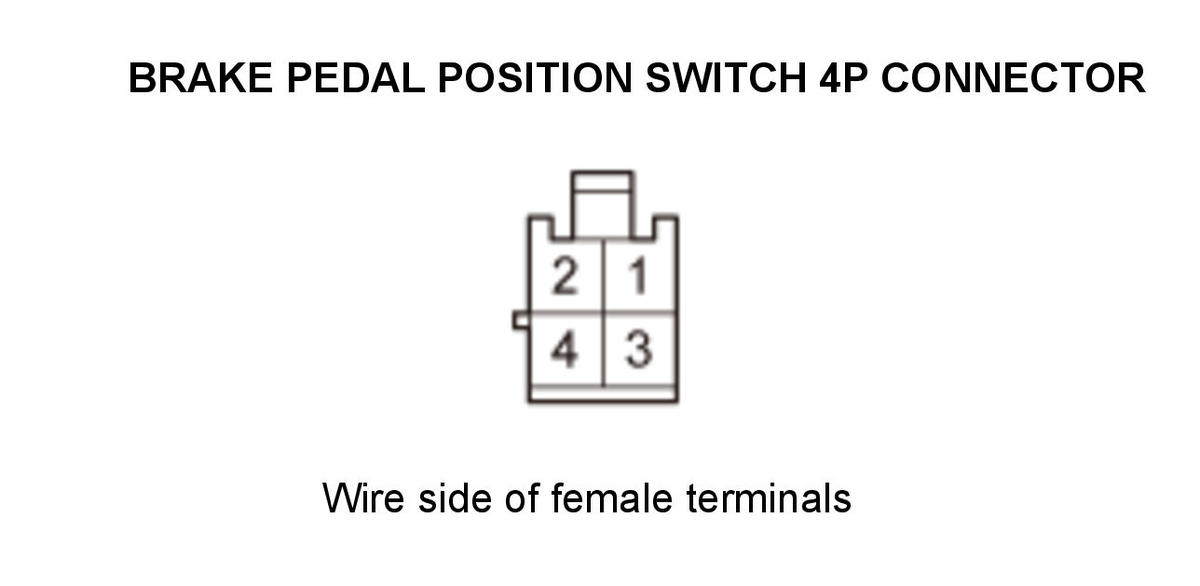

   Test point 1	Brake pedal position switch 4P connector No. 2
   Test point 2	Body ground
