DTC P0404

DTC P0404  : EGR Valve Circuit Range/Performance Problem

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine. Hold the engine speed at 3, 000 rpm without load (CVT in P or N, M/T in neutral) until the radiator fan comes on, then let it idle.

   -4. Select the EGR TEST in the INSPECTION MENU with the HDS.

   EGR TEST

   Is the result OK?

   YES

   Intermittent failure, the system is OK at this time. Clean any carbon build-up on the EGR valve with throttle plate cleaner. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

   NO

   Failure is duplicated. Go to step 2.

2. EGR valve position sensor internal circuit check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   EGR 5P connector

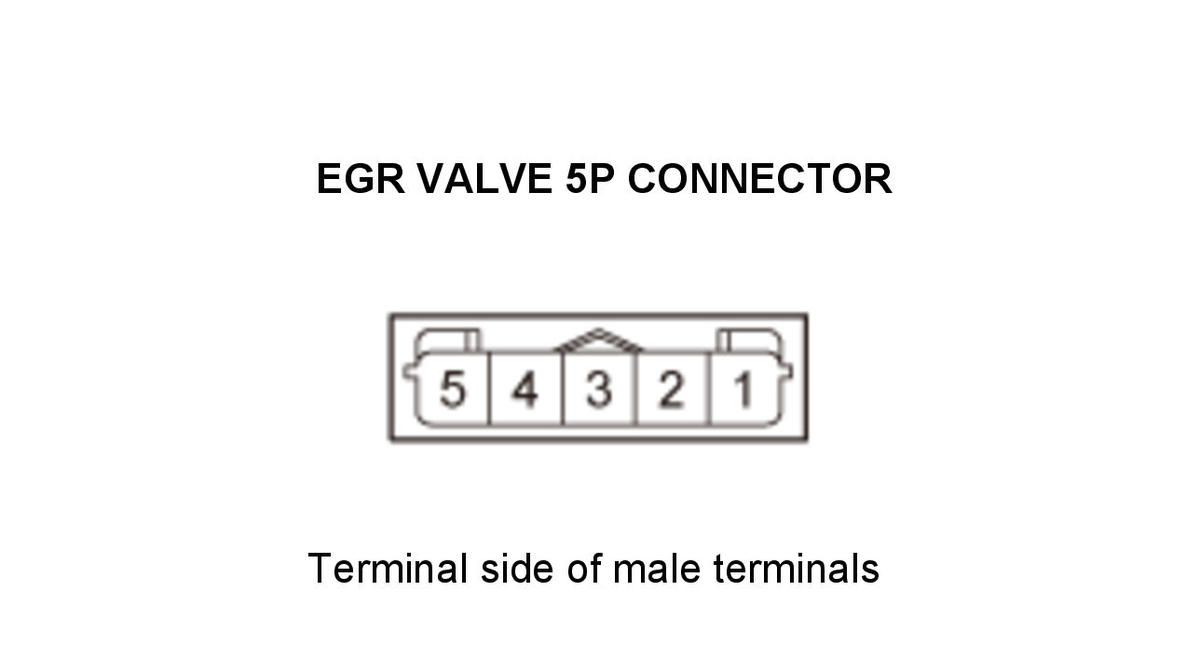

   -3. At the EGR valve side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR 5P connector: disconnected
   Test point 1	EGR valve 5P connector No. 3 (EGR valve side)
   Test point 2	EGR valve 5P connector No. 4 (EGR valve side)

   Courtesy of HONDA, U.S.A., INC.

   Is there 100 kΩ or more?

   YES

   Replace the EGR valve .

   NO

   Go to step 3.

3. EGR valve internal circuit check

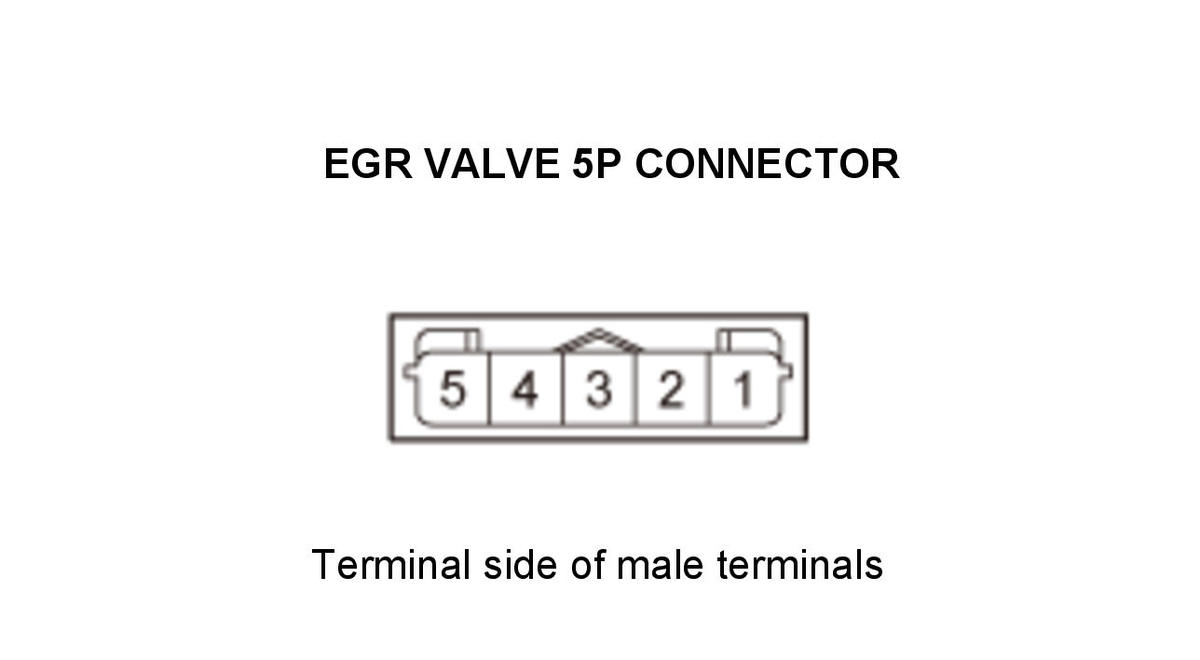

   -1. At the EGR valve side, measure the resistance between test point 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR 5P connector: disconnected
   Test point 1	EGR valve 5P connector No. 2 (EGR valve side)
   Test point 2	EGR valve 5P connector No. 4 (EGR valve side)

   Courtesy of HONDA, U.S.A., INC.

   Is there 100 kΩ or more?

   YES

   Replace the EGR valve .

   NO

   Go to step 4.

4. Open wire check (PG line)

   -1. Check for continuity between test point 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR 5P connector: disconnected

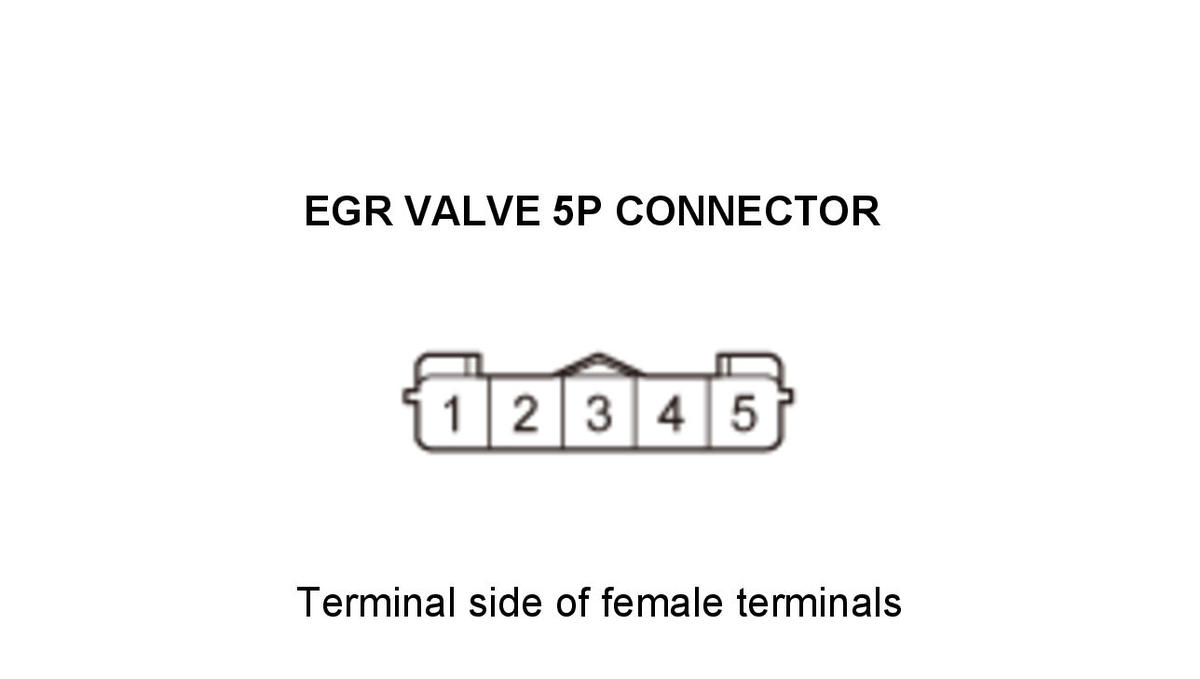

   Test point 1	EGR valve 5P connector No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PG wire is OK. Go to step 5.

   NO

   Repair an open in the PG wire between the EGR valve and G101.

5. Shorted wire check (E EGR line)

   -1. Jump the SCS line with the HDS.

   -2. Disconnect the following connector.

   PCM connector C (51P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR 5P connector: disconnected
   	PCM connector C (51P): disconnected

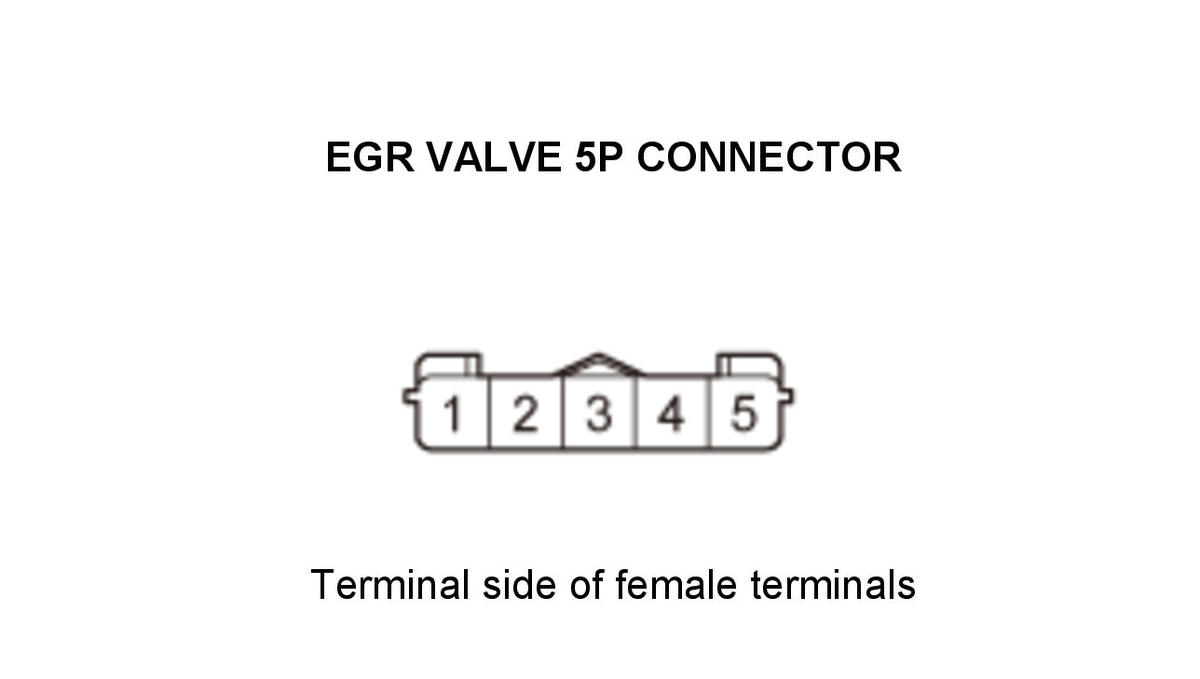

   Test point 1	EGR valve 5P connector No. 5
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the E EGR wire between the PCM (C5) and the EGR valve.

   NO

   The E EGR wire is not shorted. Go to step 6.

6. Open wire check (E EGR line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR 5P connector: disconnected
   	PCM connector C (51P): disconnected
   Test point 1	PCM connector C (51P) No. 5

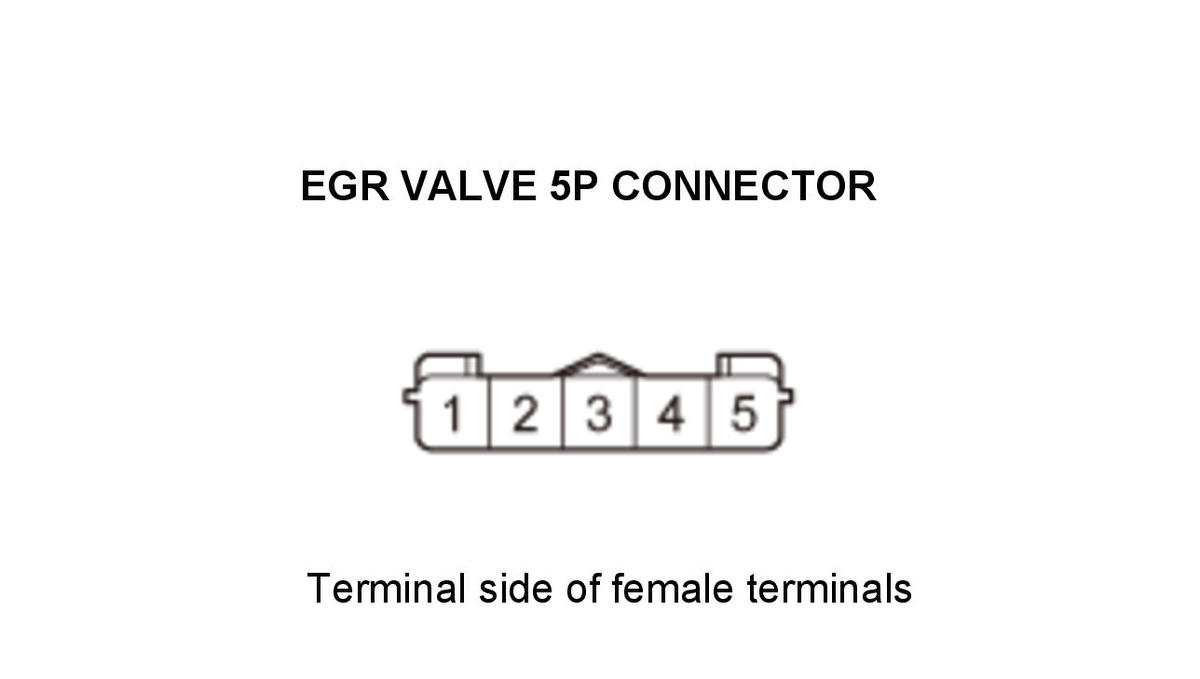

   Test point 2	EGR valve 5P connector No. 5

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The E EGR wire is OK. Go to step 7.

   NO

   Repair an open in the E EGR wire between the PCM (C5) and the EGR valve.

7. EGR port and passage check

   -1. Remove the EGR valve.

   -2. Clean the intake manifold EGR port with throttle plate cleaner. Also, clean the passage inside the EGR valve with throttle plate cleaner.

   -3. Install the EGR valve.

   -4. Reconnect all connectors.

   -5. Turn the vehicle to the ON mode.

   -6. Reset the PCM with the HDS .

   Reset PCM

   -7. Do the PCM idle learn procedure.

   -8. Select the EGR TEST in the INSPECTION MENU with the HDS.

   EGR TEST

   Is the result OK?

   YES

   The failure is not duplicated.

   NO

   Go to step 8.

8. EGR valve check (substitution)

   -1. Substitute a known-good EGR valve .

   -2. Reconnect the EGR valve 5P connector.

   -3. Turn the vehicle to the ON mode.

   -4. Reset the PCM with the HDS .

   Reset PCM

   -5. Do the PCM idle learn procedure.

   -6. Select the EGR TEST in the INSPECTION MENU with the HDS.

   EGR TEST

   Is the result OK?

   YES

   Replace the original EGR valve .

   NO

   The EGR valve is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0404 goes away and the PCM was updated, troubleshooting is complete. If DTC P0404 goes away and the PCM was substituted, replace the original PCM .
