Rocker Arm Assembly Removal and Installation: Removal

Rocker Arm Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

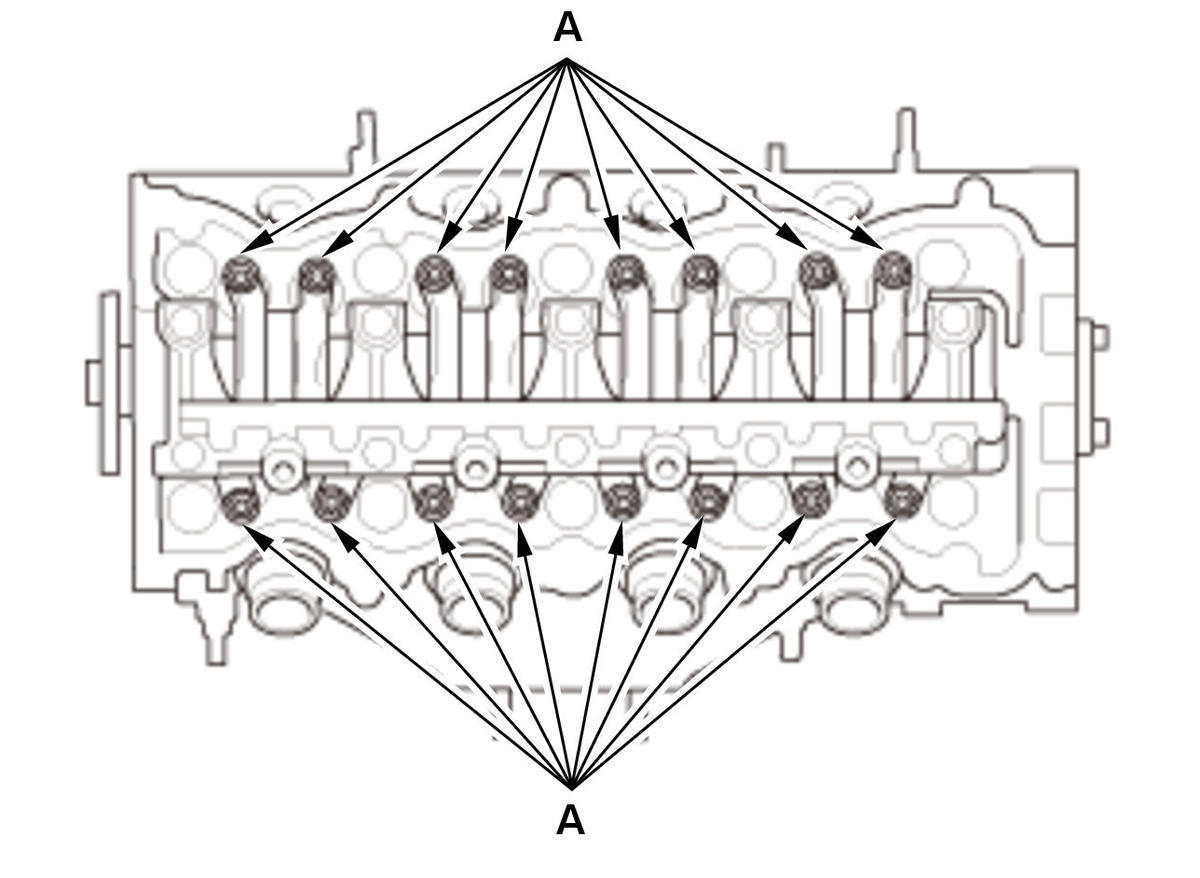

1. Loosen the locknuts and the adjusting screws (A).

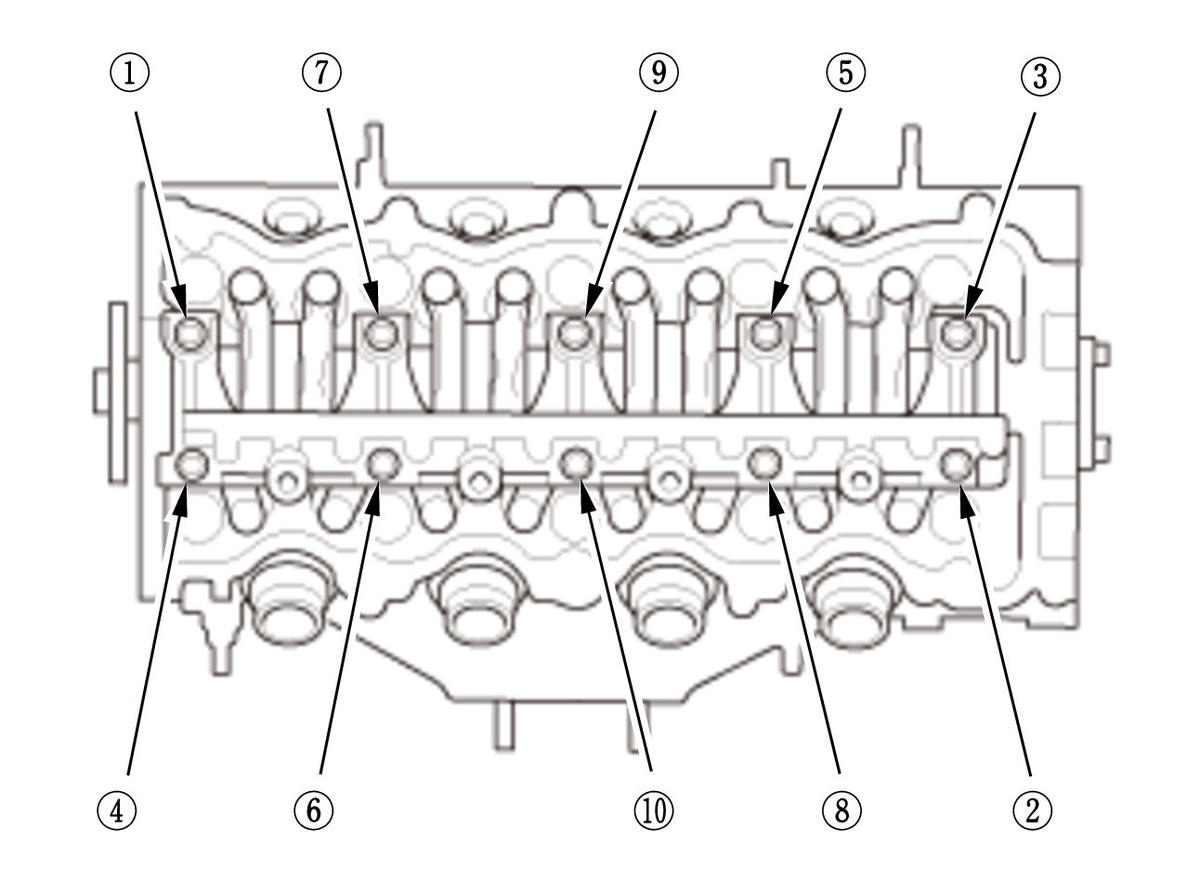

Fig 1: Rocker Arm Assembly Bolts Loosening Sequence

Courtesy of HONDA, U.S.A., INC.

2. Remove the lost motion holder bolts. To prevent damaging the lost motion holder and the rocker shaft.

3. loosen the bolts, in sequence, two turns at a time.

Courtesy of HONDA, U.S.A., INC.

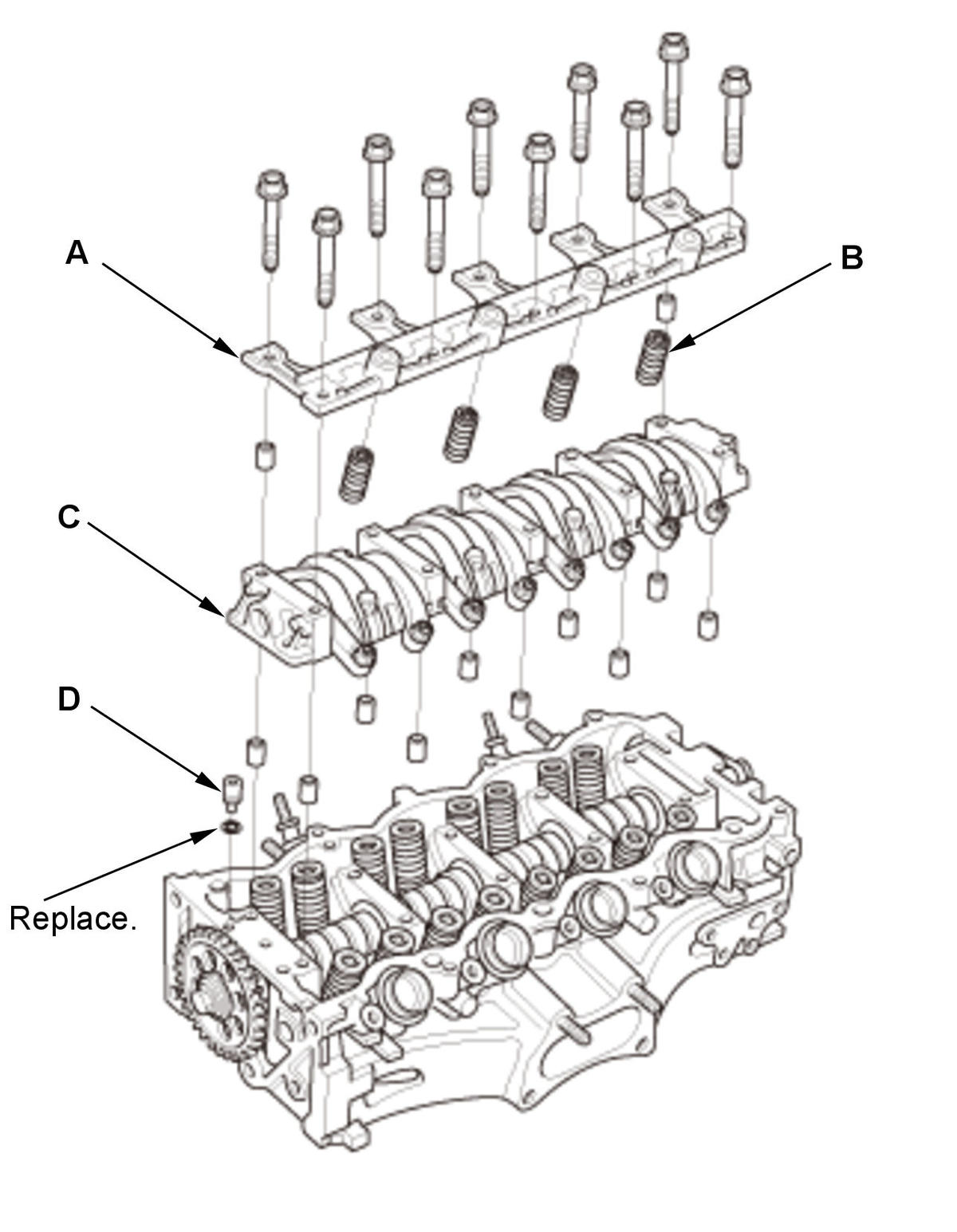

4. Remove the lost motion holder (A) and the lost motion assemblies (B).

5. Remove the rocker arm assembly (C).

6. Remove the oil control orifice (D).
