Engine Block Assembly Component Location Index (K20C2)

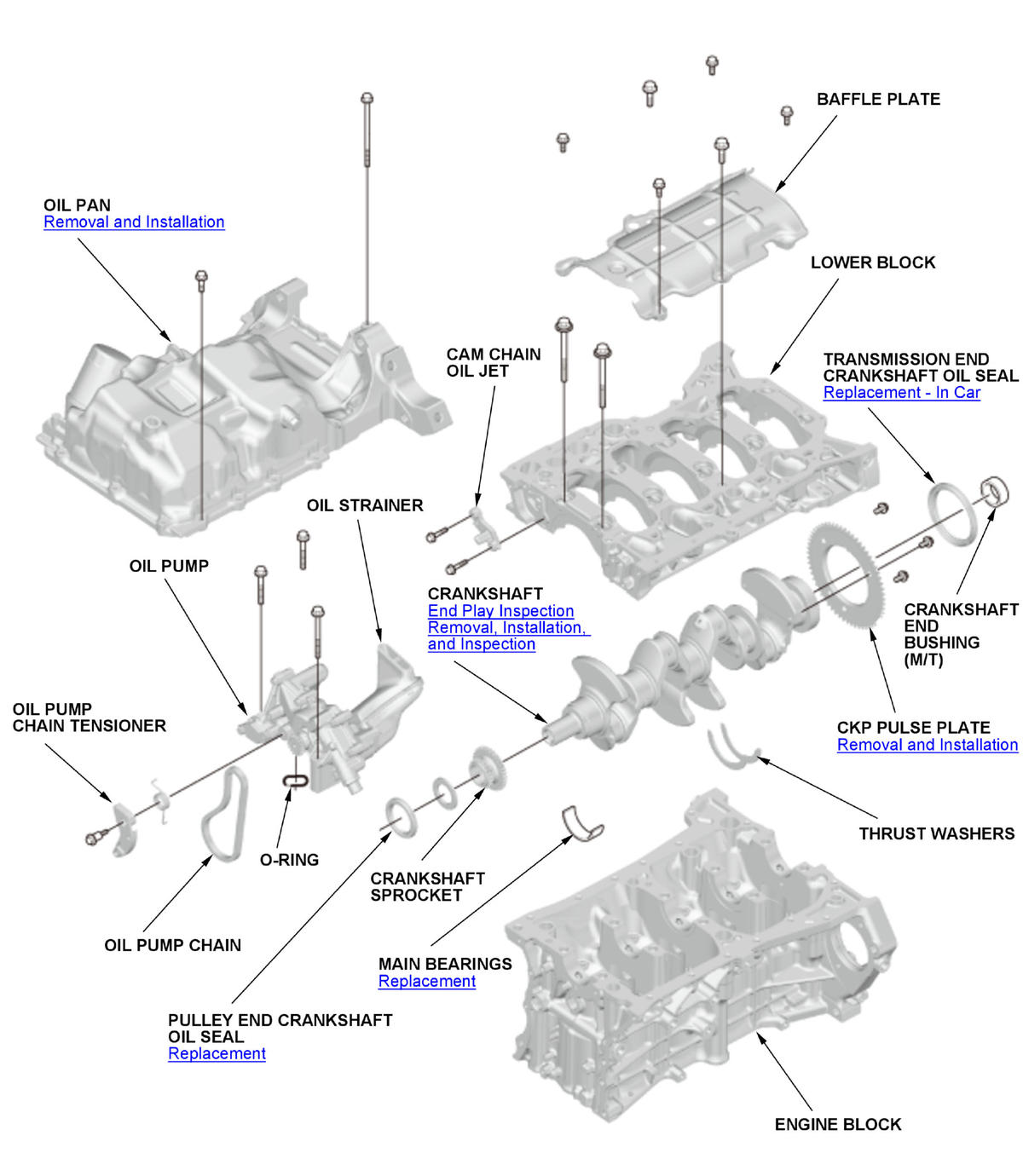

GHH406669

Courtesy of HONDA, U.S.A., INC.

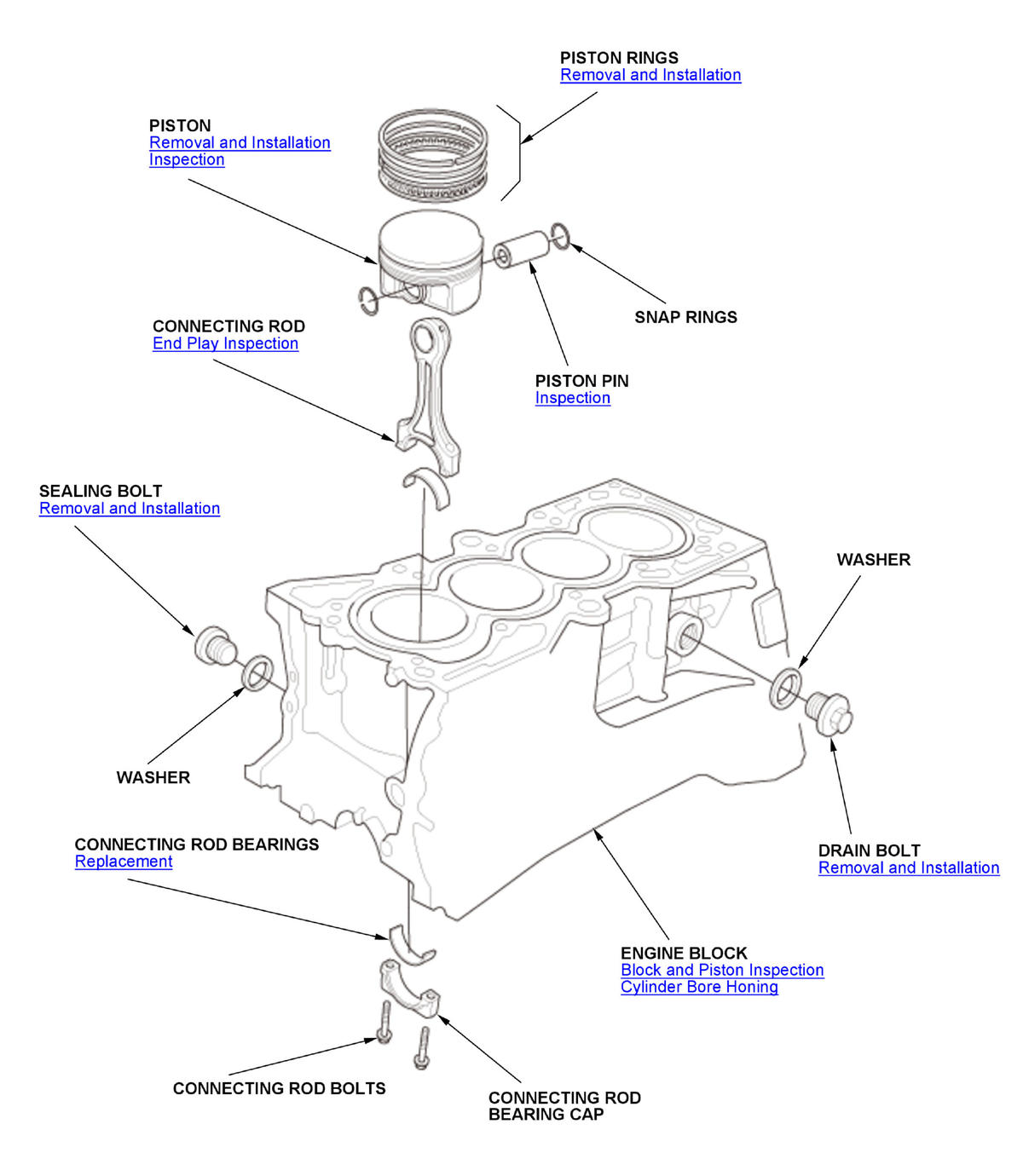

GHH406670

Courtesy of HONDA, U.S.A., INC.
