Trunk Lid Outer Handle Switch Test: Test

  1. Rear License Trim - Remove
  2. Trunk Lid Outer Handle Switch - Test
    GHH411572GHH411573Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH411572GHH411573Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 NOTE:  Illustrations used in the procedure are for 4-door.

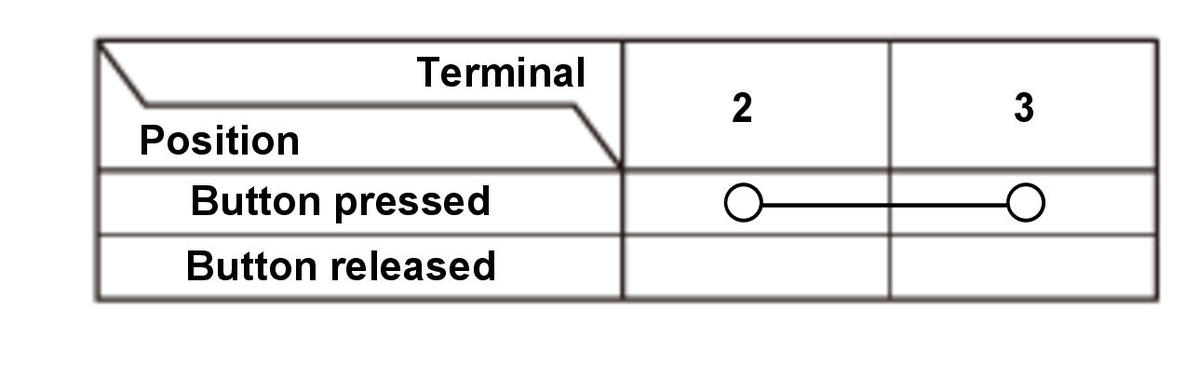

    1. Check for continuity between the terminals in each switch position according to the table.

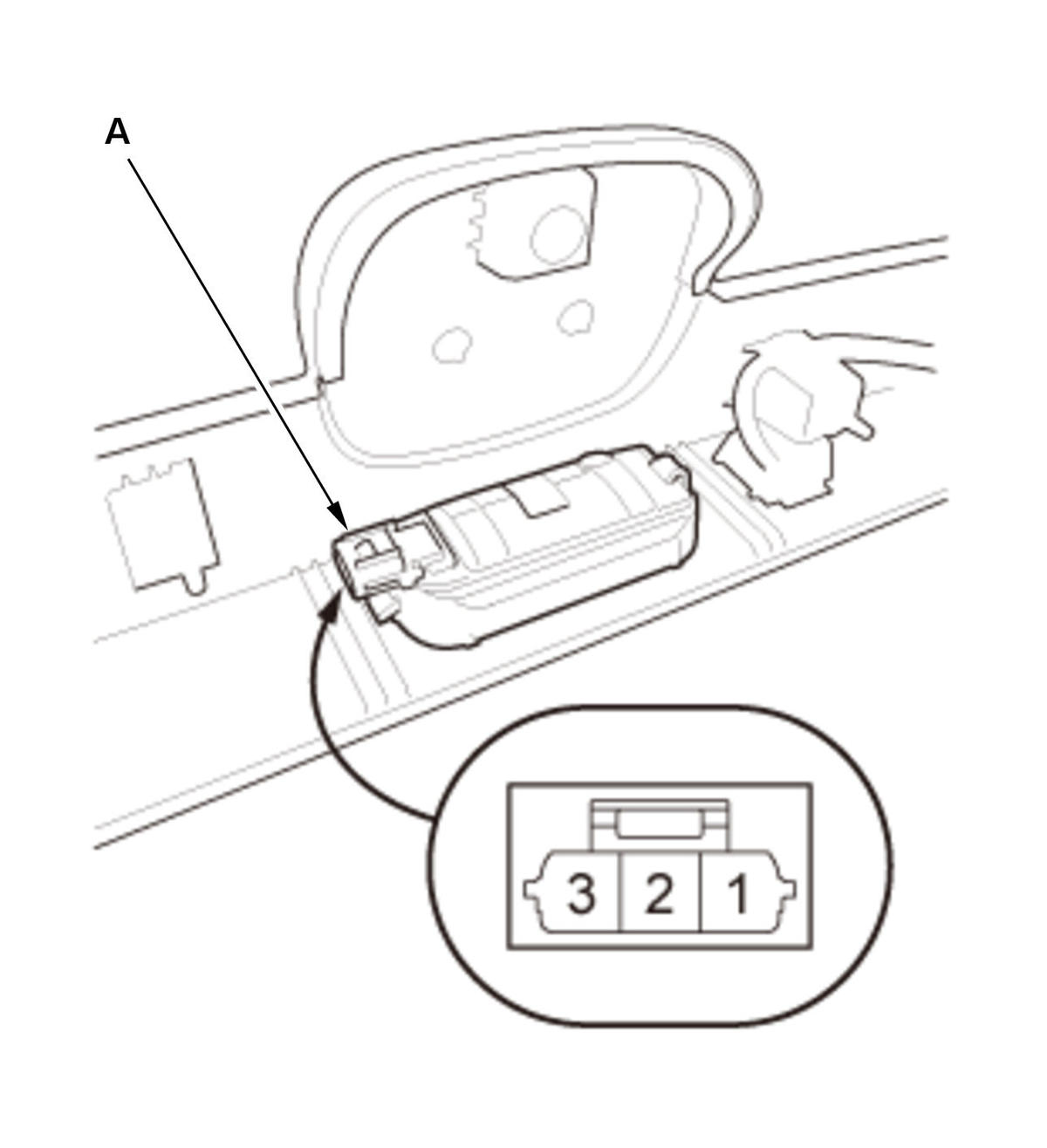

    2. If the continuity is not as specified, replace the trunk lid outer handle switch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
