DTC : P0641 (9-Speed A/T): General Description

Courtesy of HONDA, U.S.A., INC.

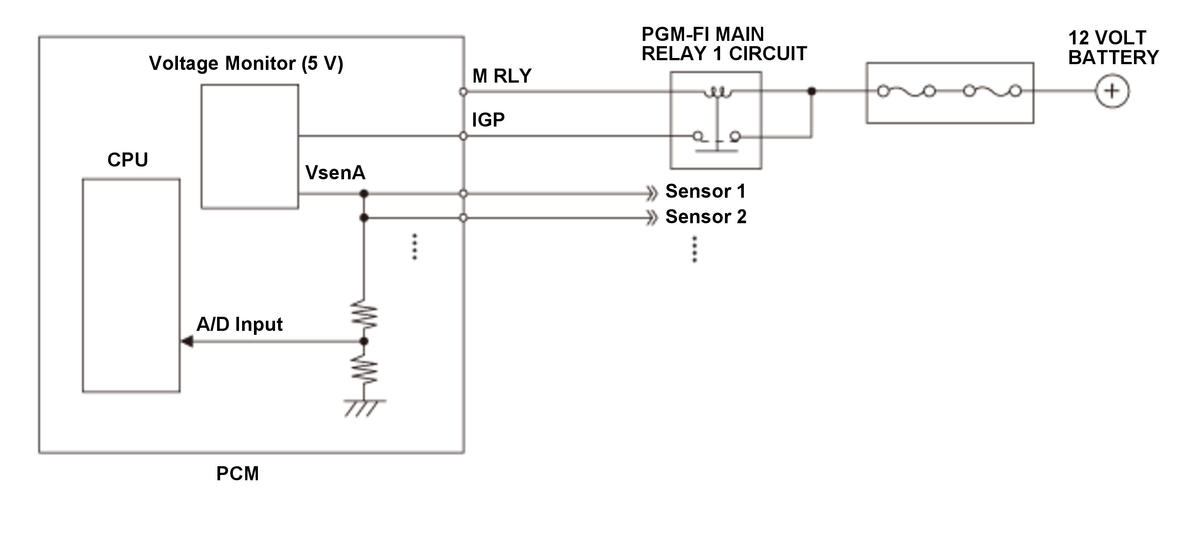

The powertrain control module (PCM) is equipped with a voltage monitor (5 V power source) to supply a stable 5 V to each sensor as reference voltage. The correct voltage for the sensors are loaded in the CPU of the PCM (A/D input) and when the sensor power voltage is a set value (high or low) for a certain time, the PCM detects a malfunction and stores a DTC.
