Fuel Line: Inspection

Fuel Line - Inspect
USA and Canada Models

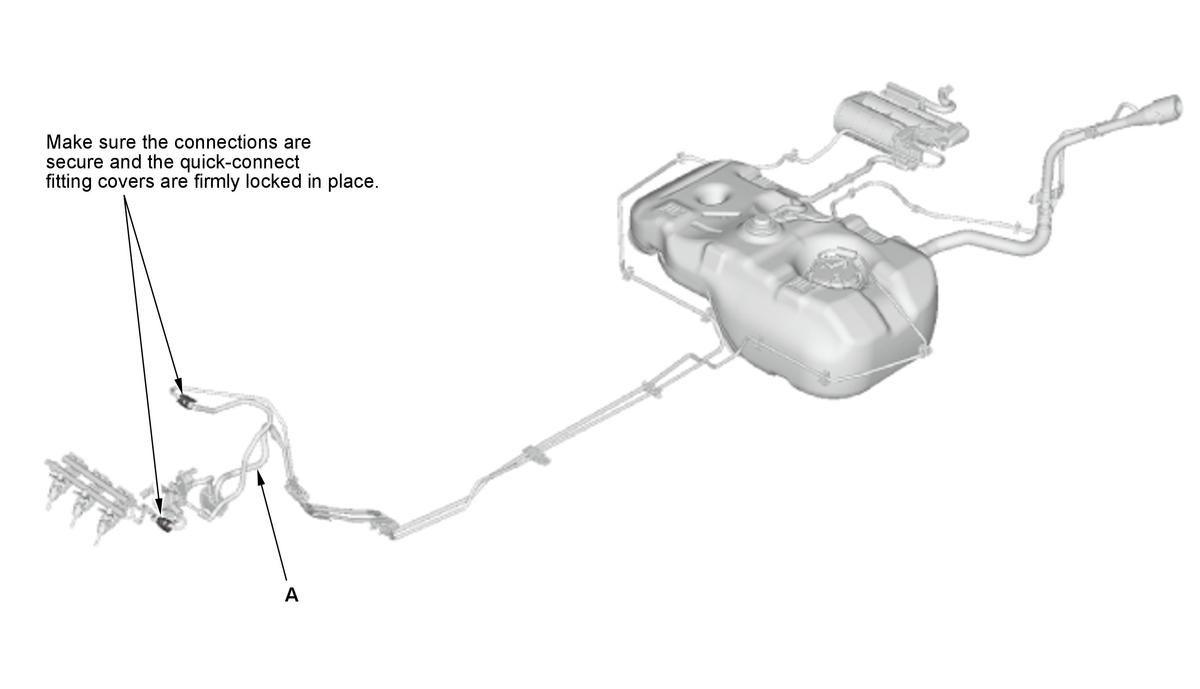

- Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

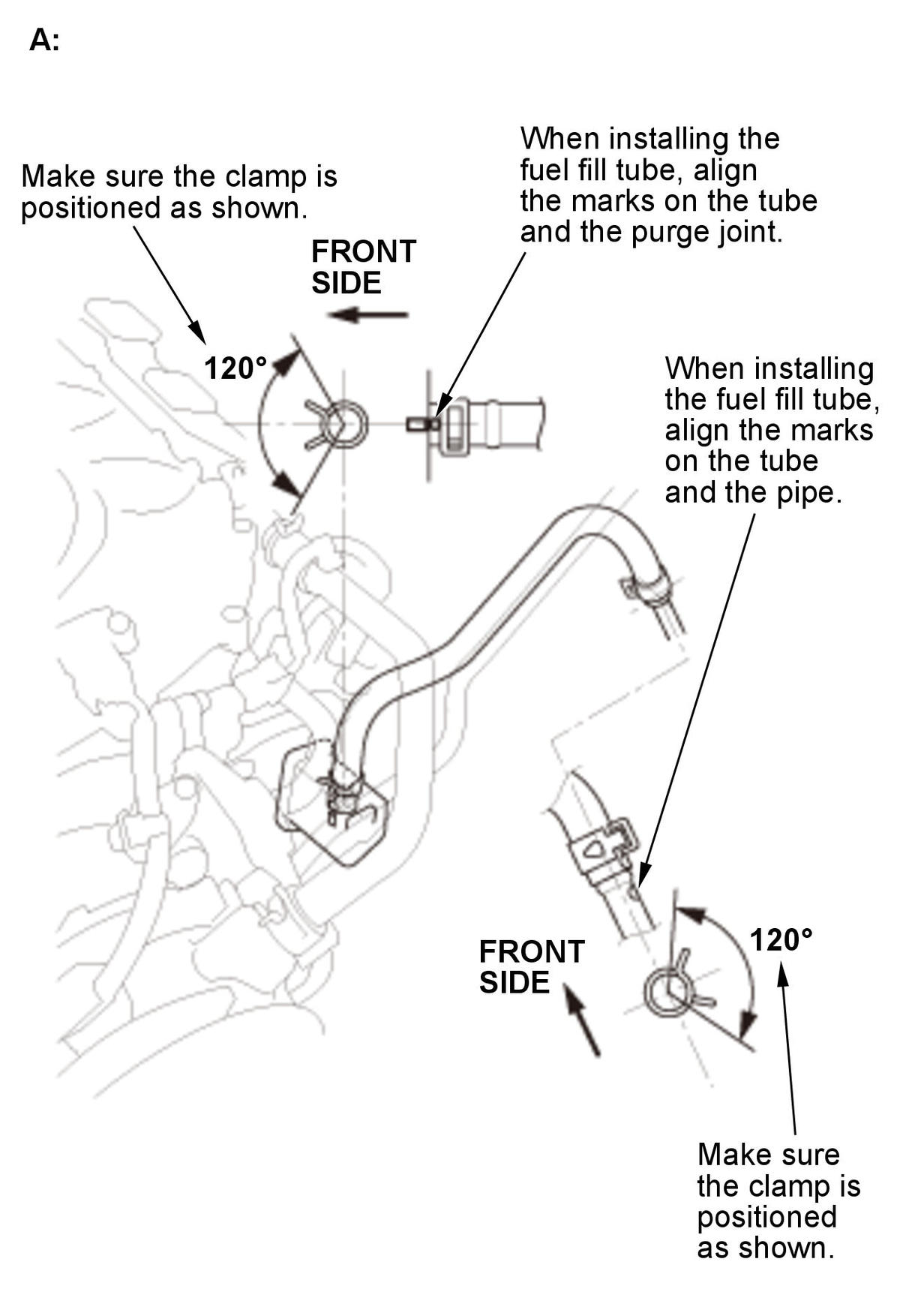

- Check all clamps, and make sure they are properly positioned and tightened.
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Mexico Models

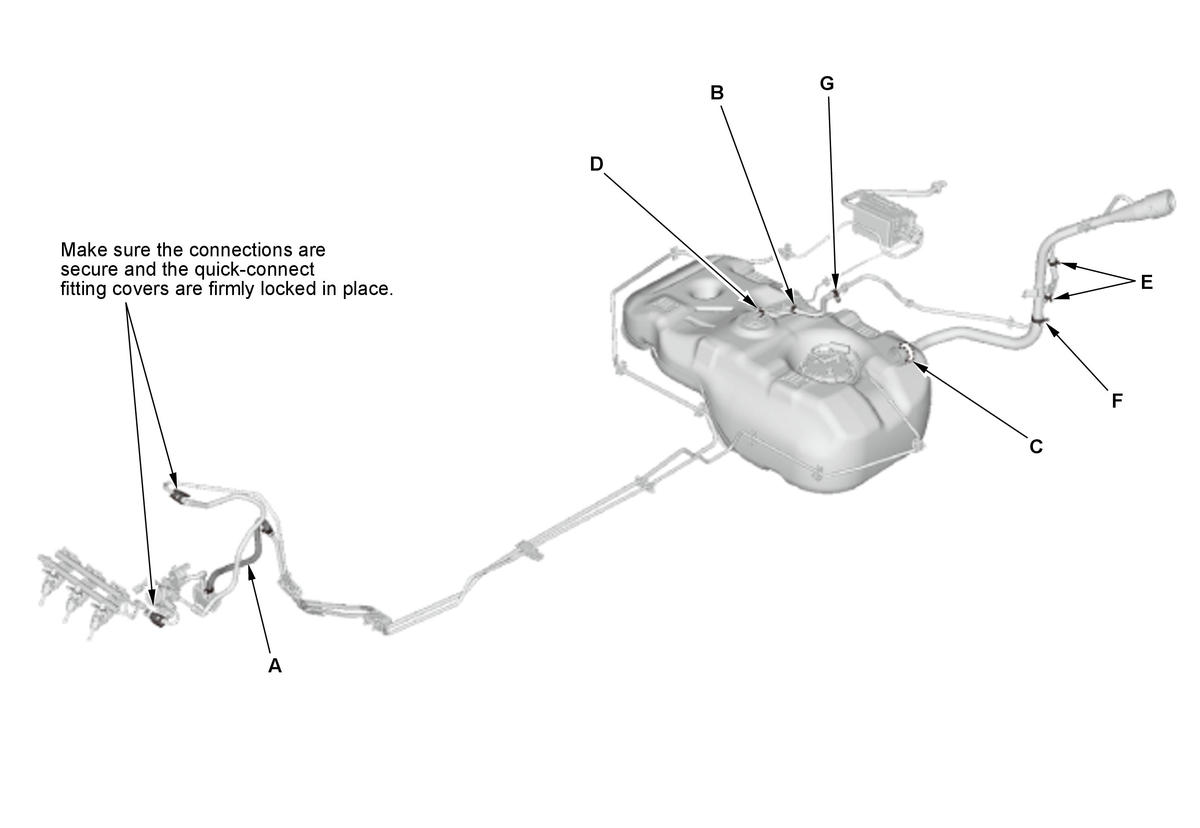

- Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

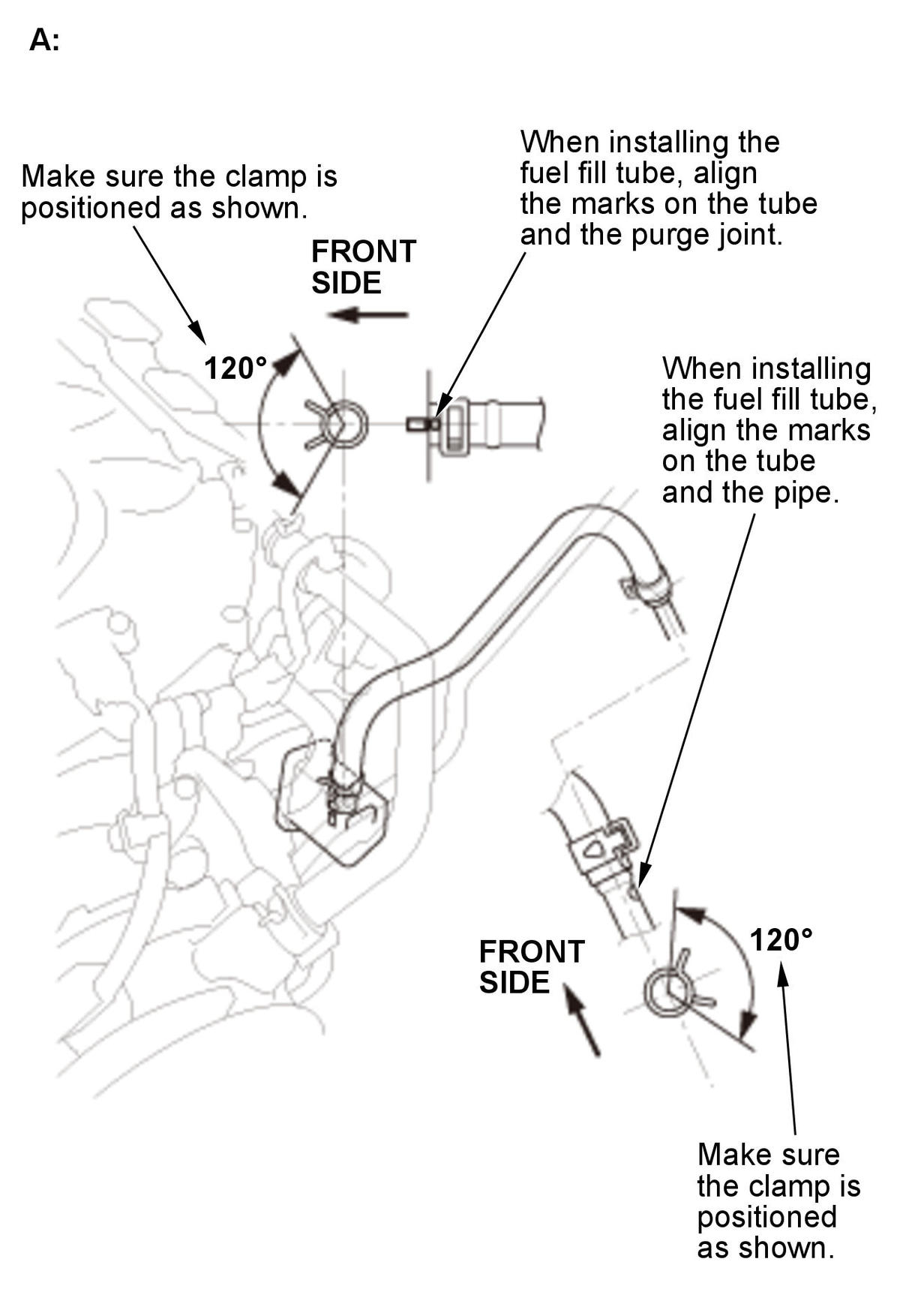

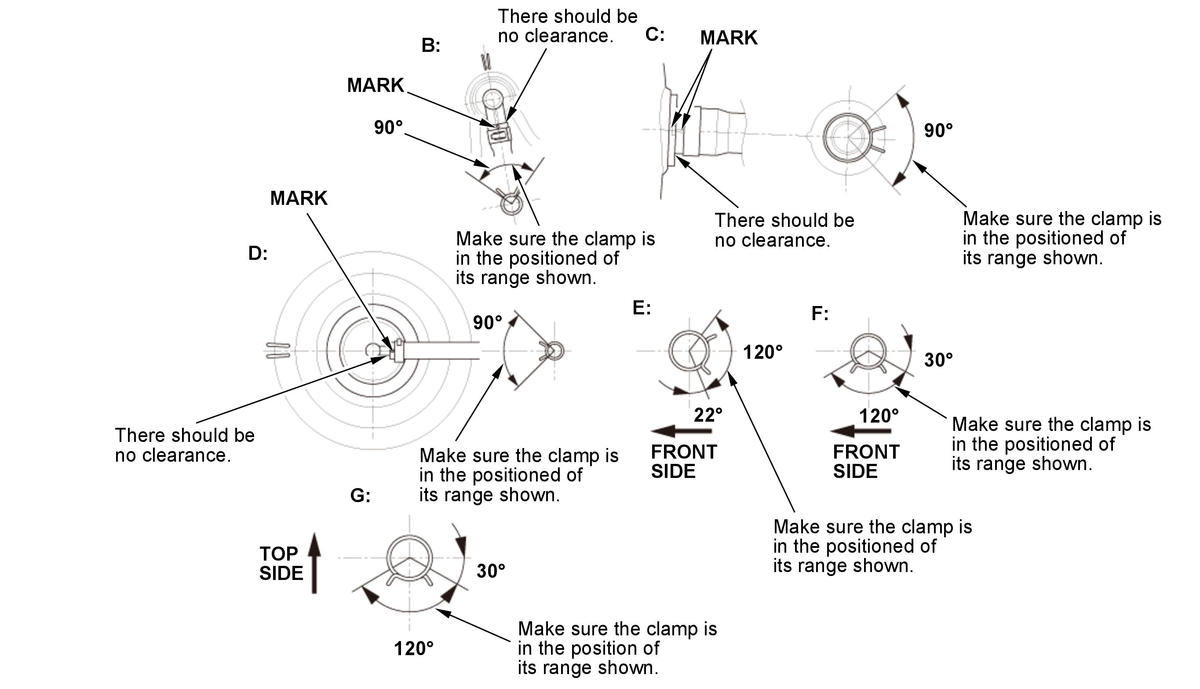

- Check all clamps, and make sure they are properly positioned and tightened.
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
