Lubricants And Fluids

Application	Lubricant or Fluid

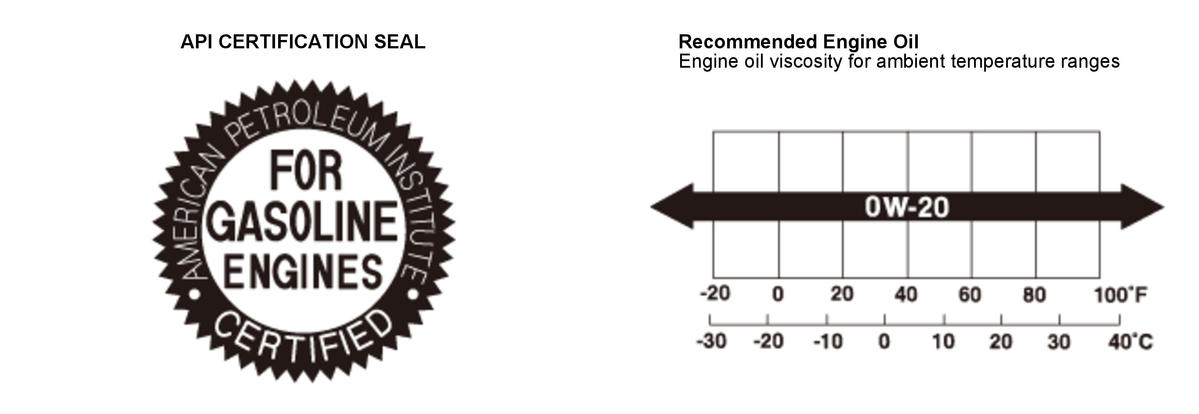

Engine	Honda Motor Oil: 0W-20 Look for the API certification seal on the oil container. Make sure it says "For Gasoline Engines." SAE Viscosity: See chart.
Automatic transmission (6-Speed A/T)	Honda Automatic Transmission Fluid (ATF DW-1): Always use Honda ATF DW-1. Using a non-Honda ATF can affect shift quality.
Automatic transmission (9-Speed A/T)	Honda Automatic Transmission Fluid (ATF Type 3): Always use Honda ATF Type 3. NOTE: Using the wrong type ATF can affect shift quality.
Transfer assembly (AWD models)	Always use Honda HGO-1.
Rear differential (AWD models)	Honda DPSF-II.
Brake system (including VSA lines)	Honda DOT 3 Brake Fluid: Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system.
Cooling system	Always use Honda Long Life Antifreeze/Coolant Type 2. NOTE: For prolonged cold temperatures below -22 °F (-30 °C), add Honda Extreme Cold Weather Antifreeze/Coolant Type 2 (concentrate) - Refer to: Coolant Replacement (2016 2017 2018) or Coolant Replacement (2019 2020 2021) .

Courtesy of HONDA, U.S.A., INC.

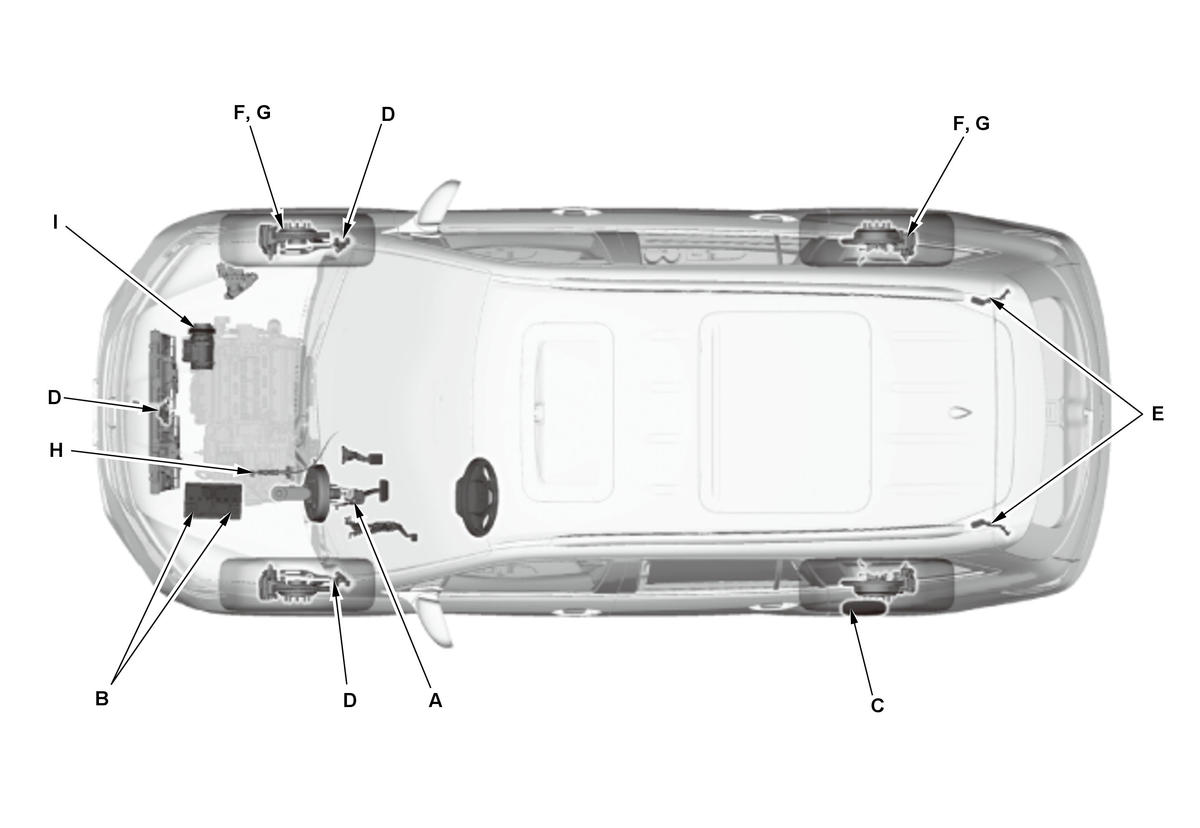

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.

Application		Lubricant or Fluid
A	Brake pedal yoke pin	Multipurpose grease
B	12 volt battery terminals
C	Fuel fill door
D	Hood hinges and hood latch
E	Tailgate hinges
F	Caliper pins, caliper pin boots, caliper piston boots	Honda silicone grease: P/N 08C30-B0234M
G	Caliper piston, caliper piston seals	Honda DOT 3 Brake Fluid
H	Shift cable end	Molybdenum grease
I	Air conditioning compressor	Compressor Oil: RL85HM (P/N 38899-RLV-A01)

NOTE:

Lubricate the following areas using the recommended lubricants and fluids.
In corrosive areas, more frequent lubrication is necessary.

Courtesy of HONDA, U.S.A., INC.
