Yaw Rate-Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  • Check the sensor bracket for a deformation.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center lower console (see RADIO POCKET REMOVAL/INSTALLATION ).
  3. Remove the yaw rate-acceleration sensor (A).

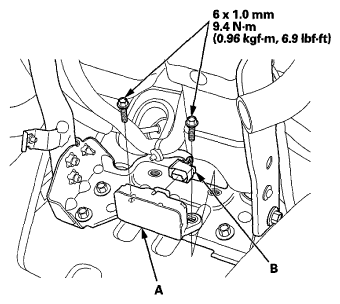

    Fig 1: Yaw Rate-Acceleration Sensor With Connector And Mounting Bolt Torque Specification
    G06969825Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the yaw rate-acceleration sensor 4P connector (B).
  5. Install the yaw rate-acceleration sensor in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
