Fuel Tank Unit Removal and Installation: Removal

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Move the second row seat forward.

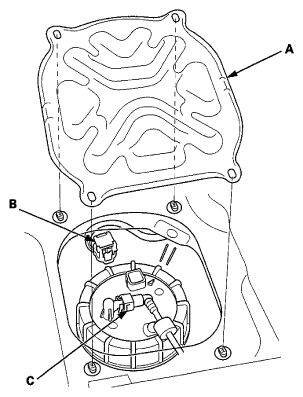

Remove the access panel (A) from the left side of the floor.

Fig 1: Identifying Access Panel, Fuel Tank Unit 4P Connector And Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fitting (C) from the fuel tank unit.
Using the special tool, loosen the locknut (A).

Fig 2: Loosening Locknut Using Special Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

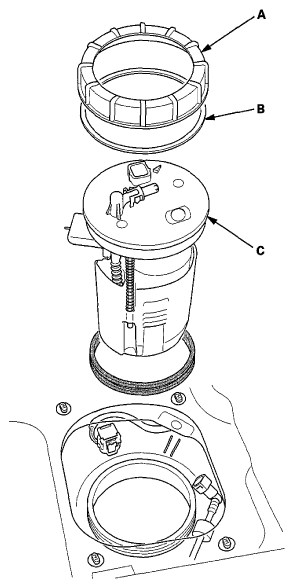

Remove the locknut (A), the locknut plate (B), and the fuel tank unit (C).

Fig 3: Identifying Locknut, Plate And Fuel Tank Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
