VSA Off Switch: Test

  1. VSA Off Switch - Test

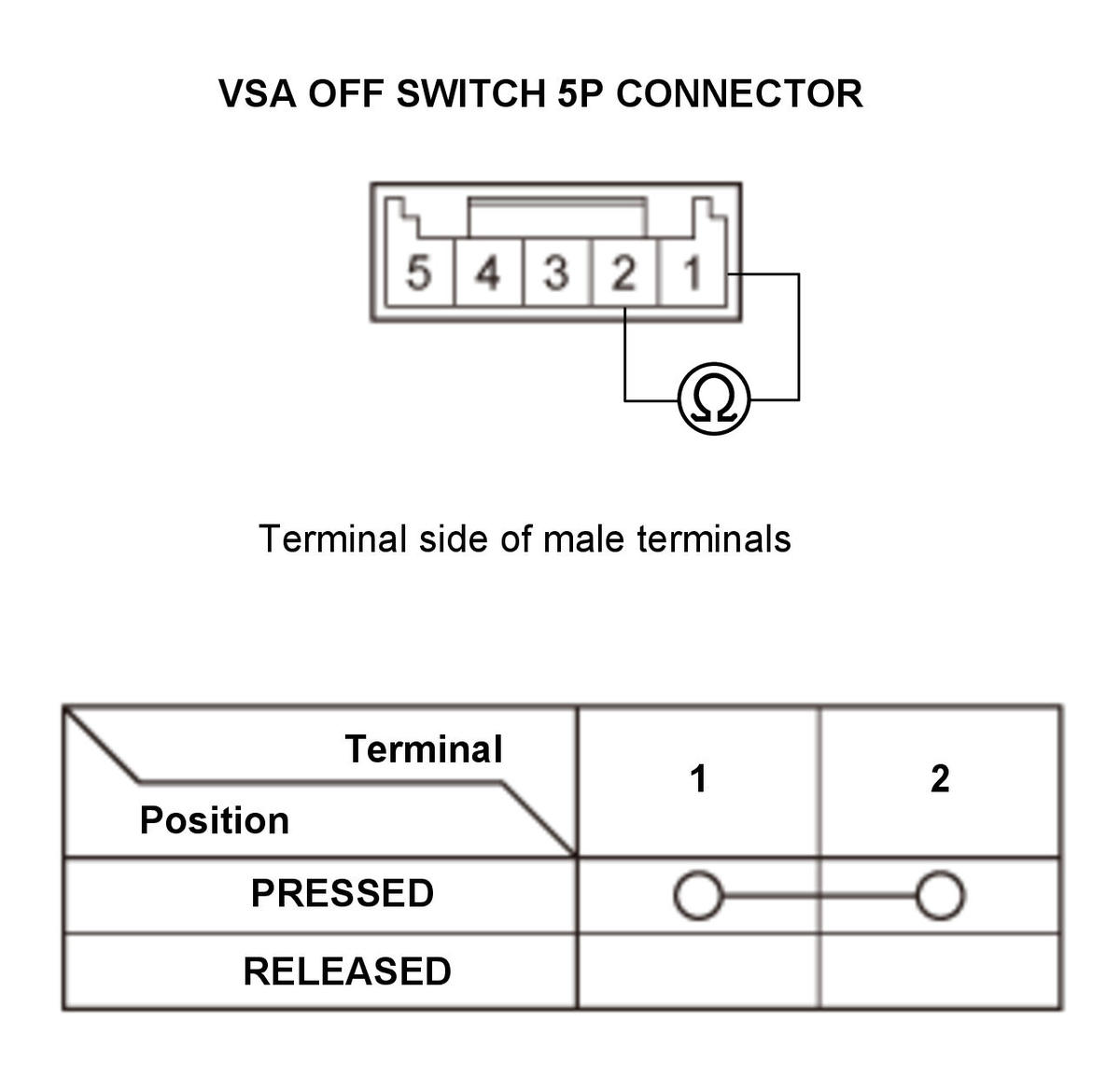

    GHH439535Courtesy of HONDA, U.S.A., INC.
    1. On the switch side, check for continuity between the connector terminal in each switch position according to the table.

    2. If the switch does not works as described in the table, replace the VSA OFF switch.
