Rear Power Window Switch Test: Test

  1. Rear Door Armrest - Remove
  2. Rear Power Window Switch - Test
    GHH439572GHH439573Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH439572GHH439573Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

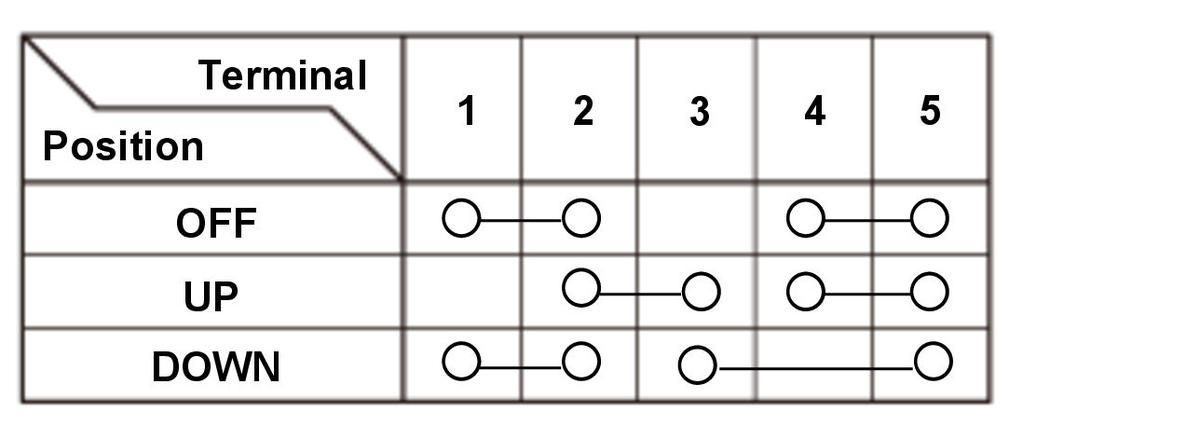

    		 1. Check for continuity between the terminals in each switch position according to the table.

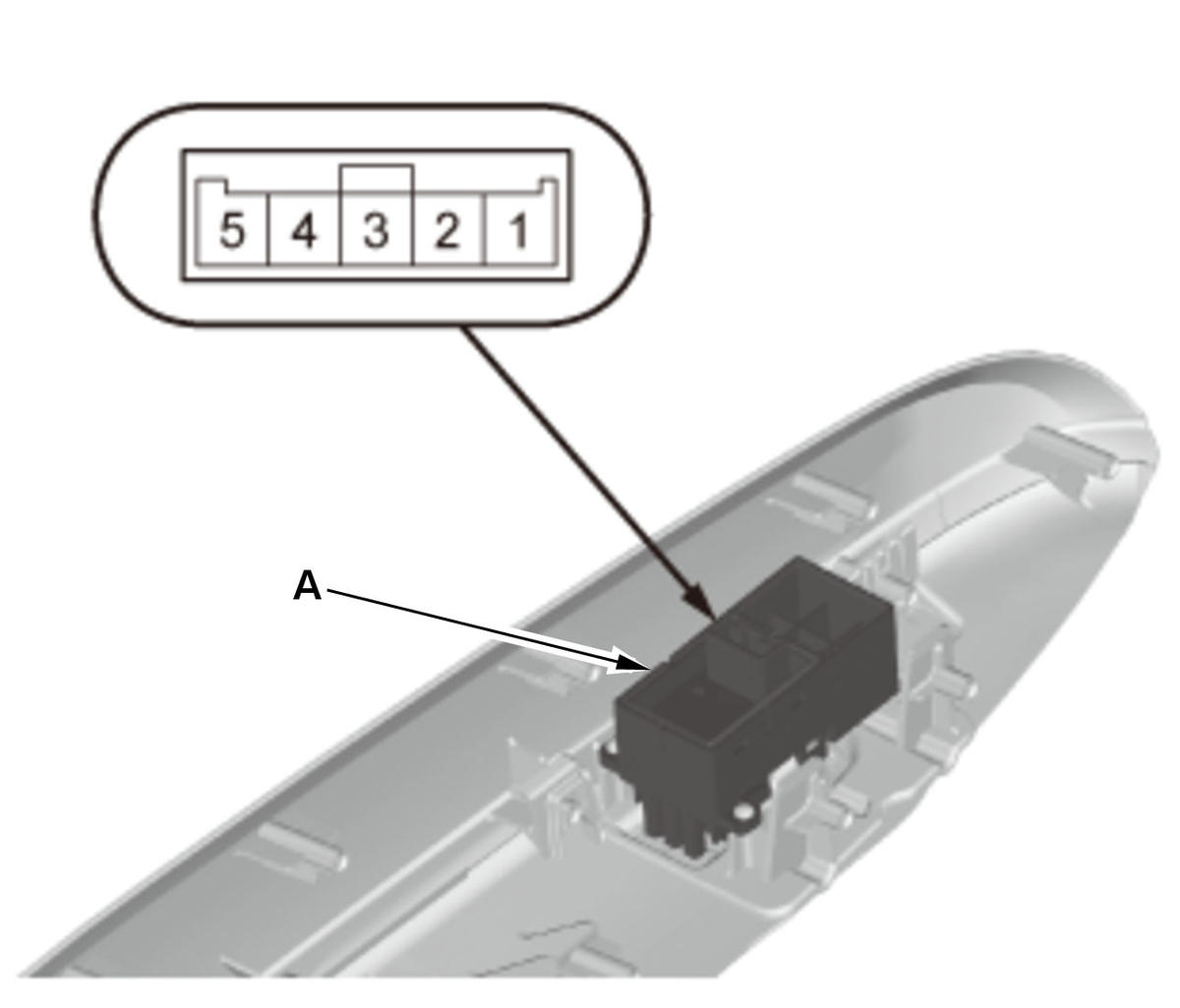

    2. If the continuity is not as specified, replace the rear power window switch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
