Engine Oil Pan Removal and Installation: Removal

A/C Compressor - Remove

Courtesy of HONDA, U.S.A., INC.

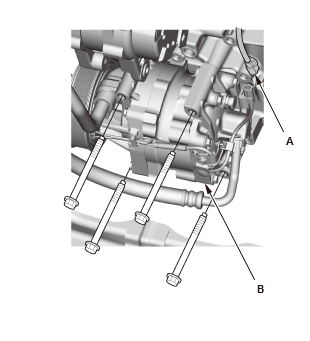

1. Disconnect the connector (A)

2. Remove the A/C compressor (B).

NOTE:

Do not disconnect the A/C hoses.
Do not bend the A/C hoses excessively.
Move the A/C compressor away to the inner fender side, then hang it with a wire tie.

Oil Pan - Remove

Courtesy of HONDA, U.S.A., INC.

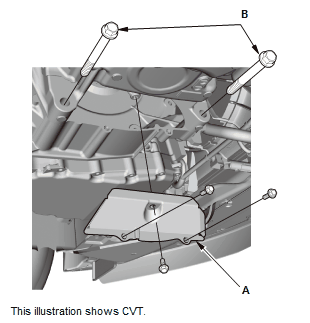

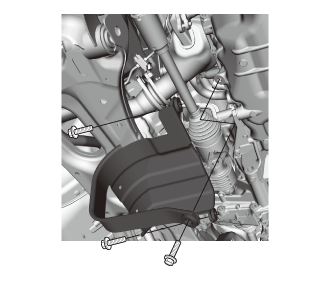

1. Remove the clutch case cover/torque converter cover (A) and the transmission mounting bolts (B).

Courtesy of HONDA, U.S.A., INC.

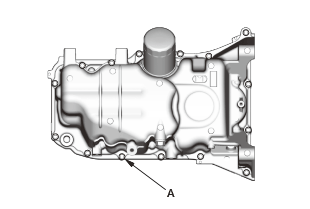

2. Remove the oil pan mounting bolts.

NOTE: Do not remove the bolt (A), but loosen it until the distance is about 5.0 mm between the oil pan mating surface and the bolt seating surface.

Courtesy of HONDA, U.S.A., INC.

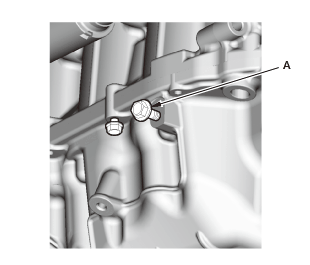

3. Using a 6 x 25 mm bolt (A), temporarily tighten the bolt until it sits on the bottom of the thread.

Courtesy of HONDA, U.S.A., INC.

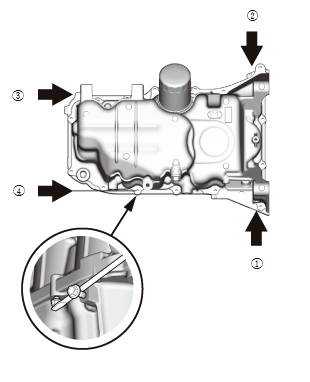

4. Using a flat blade screwdriver, separate the oil pan from the engine block in the numbered sequence shown.

NOTE: If the numbered sequence is not followed as described, the oil pan will be damaged.

Courtesy of HONDA, U.S.A., INC.

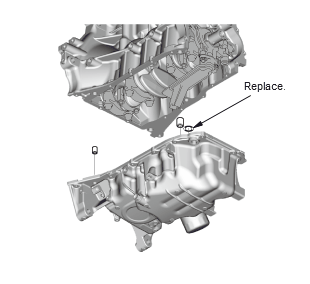

5. Remove the oil pan.
