Inhibitor Solenoid Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
  2. Disconnect the inhibitor solenoid 2P connector (A).

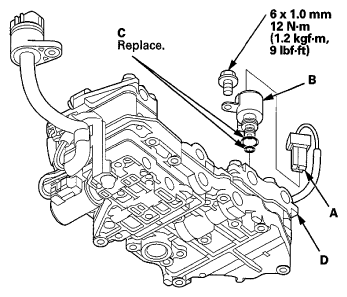

    Fig 1: Locating Inhibitor Solenoid 2P Connector, Inhibitor Solenoid And O-Rings With Torque Specifications
    G06950990Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the inhibitor solenoid (B), then remove the O-rings (C) from the inhibitor solenoid.
  4. Install new O-rings on a new inhibitor solenoid, then install the inhibitor solenoid on the CVT driven pulley pressure control valve (D).
  5. Connect the inhibitor solenoid 2P connector.
  6. Install the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
