Engine Oil Pump Overhaul
>>
Exploded View
Exploded View
1. Oil Pump - Exploded View
Exploded View

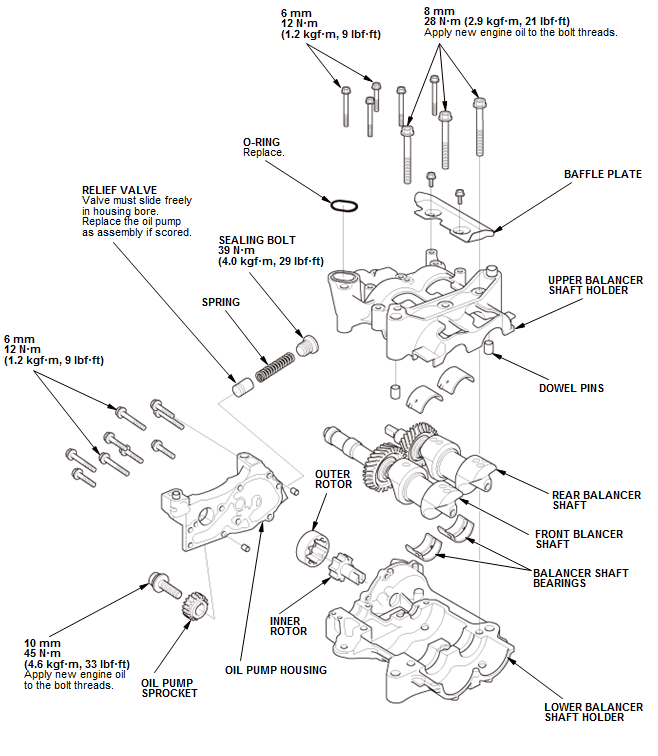

Fig 1: Oil Pump - Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
