CR-V SE, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Security System / Keyless Entry System - Testing & Troubleshooting
>>
Circuit Diagram
>>

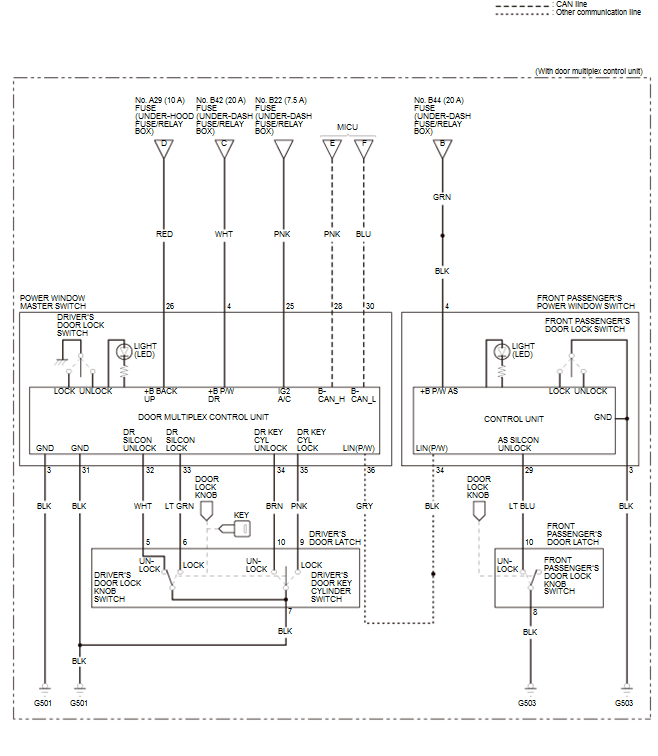

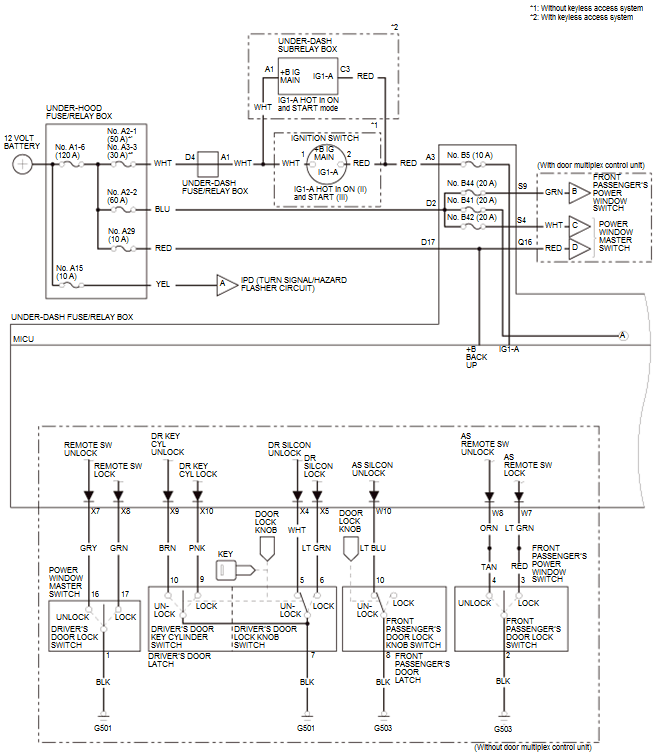

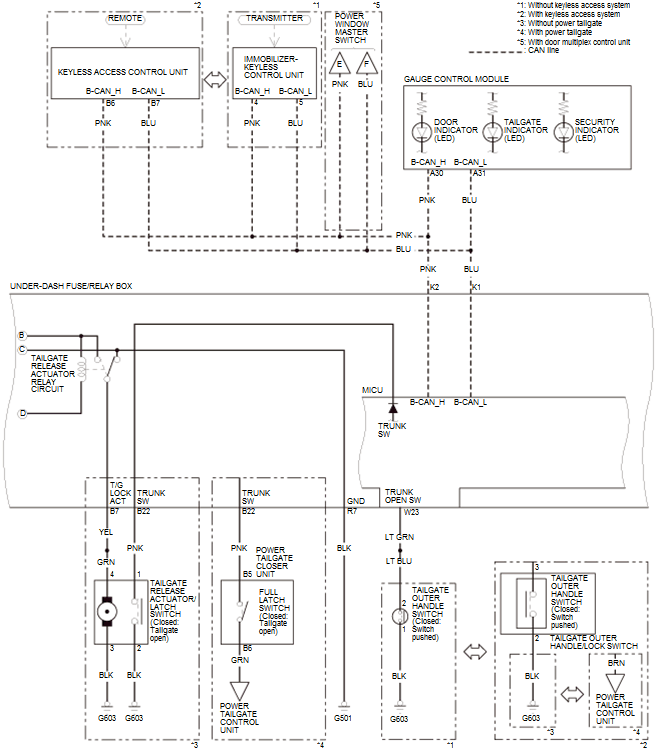

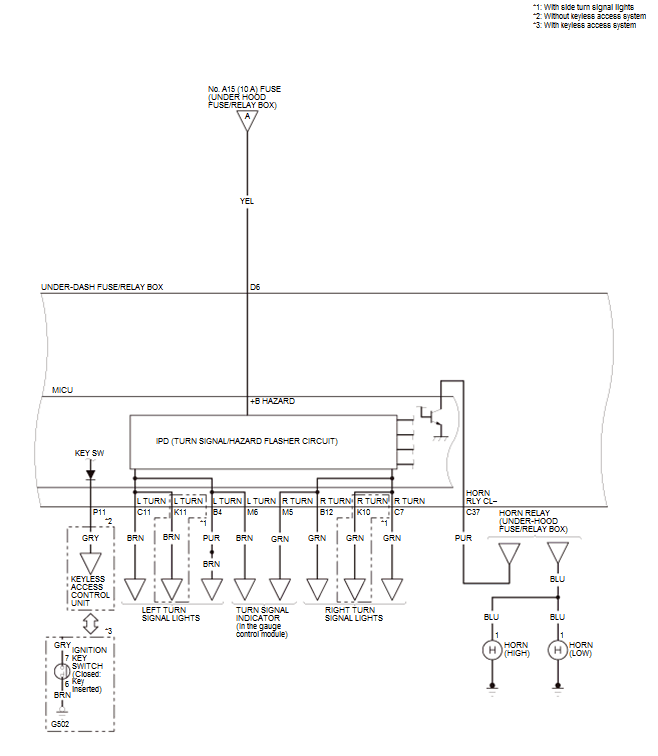

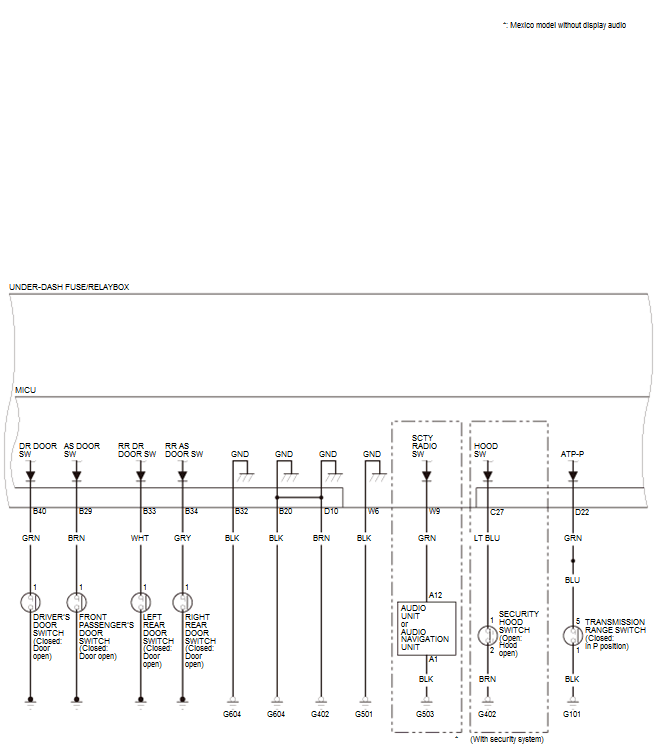

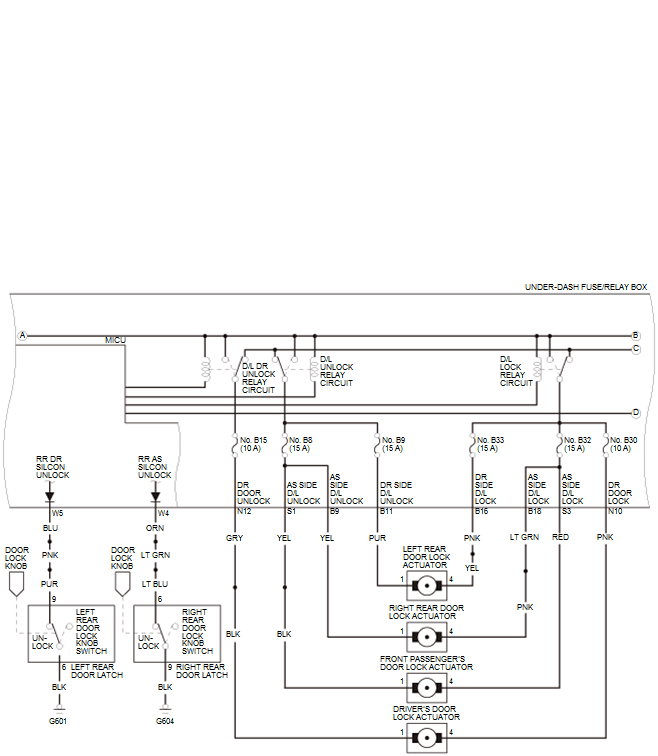

Keyless/Power Door Locks/Security System Circuit Diagram (2015)
Keyless/Power Door Locks/Security System Circuit Diagram (2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
