Check Procedure

Courtesy of HONDA, U.S.A., INC.

1. Set the front wheels in the straight ahead position

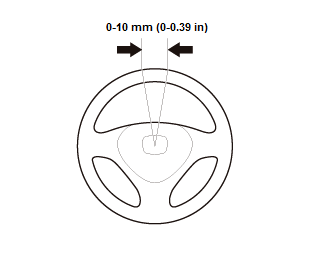

2. Measure how far you can turn the steering wheel left and right without moving the front wheels.

• If the play is within the limit, the steering gearbox and the steering linkage are OK.
• If the play exceeds the limit, adjust the rack guide . If the play is still excessive after rack guide adjustment, inspect the steering linkage and the steering gearbox .
