Engine Lubrication System Component Location Index

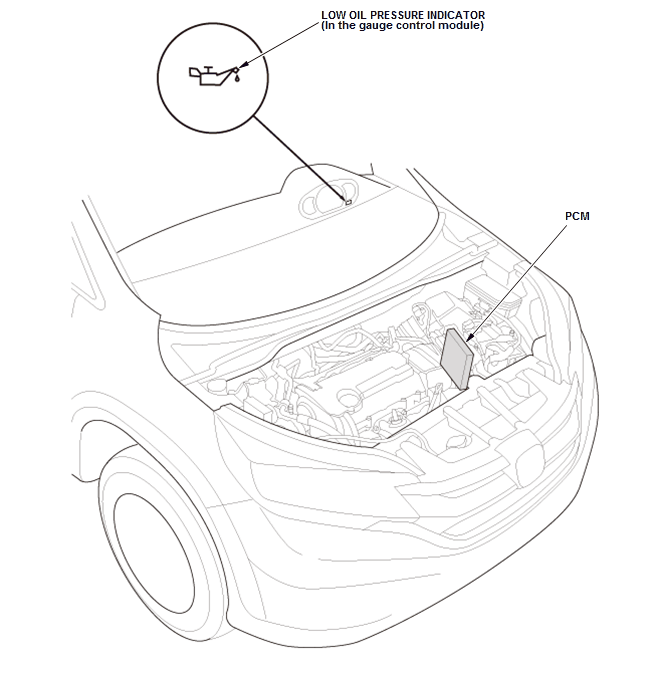

GHH50750

Courtesy of HONDA, U.S.A., INC.

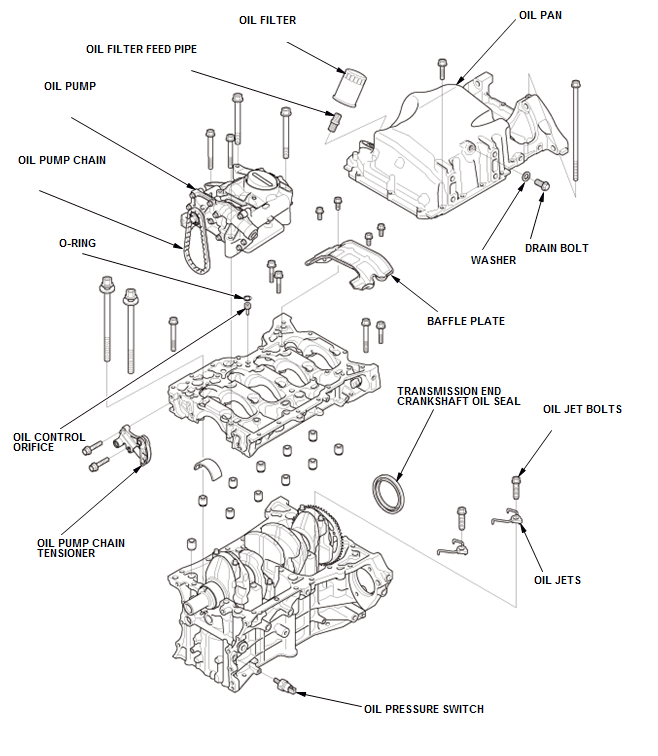

GHH50751

Courtesy of HONDA, U.S.A., INC.
