Circuit Diagram - Without DPMS

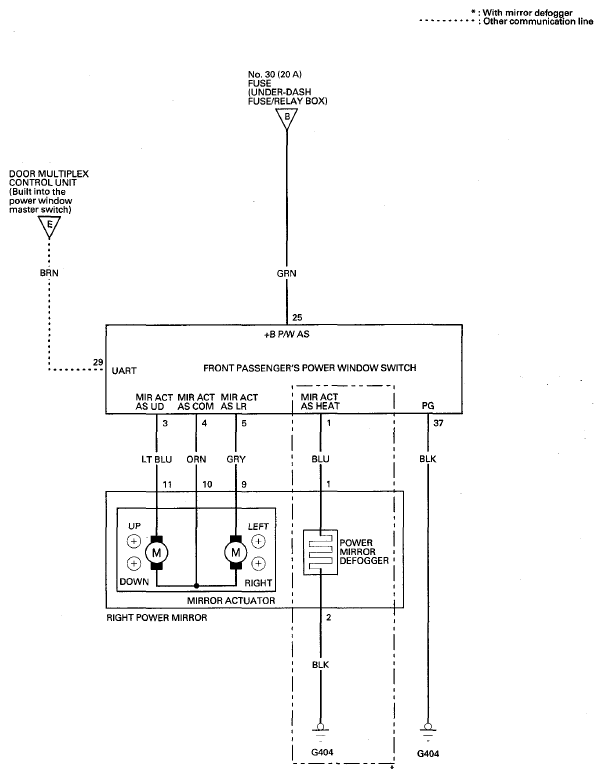

Fig 1: Power Mirrors (Without DPMS) - Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

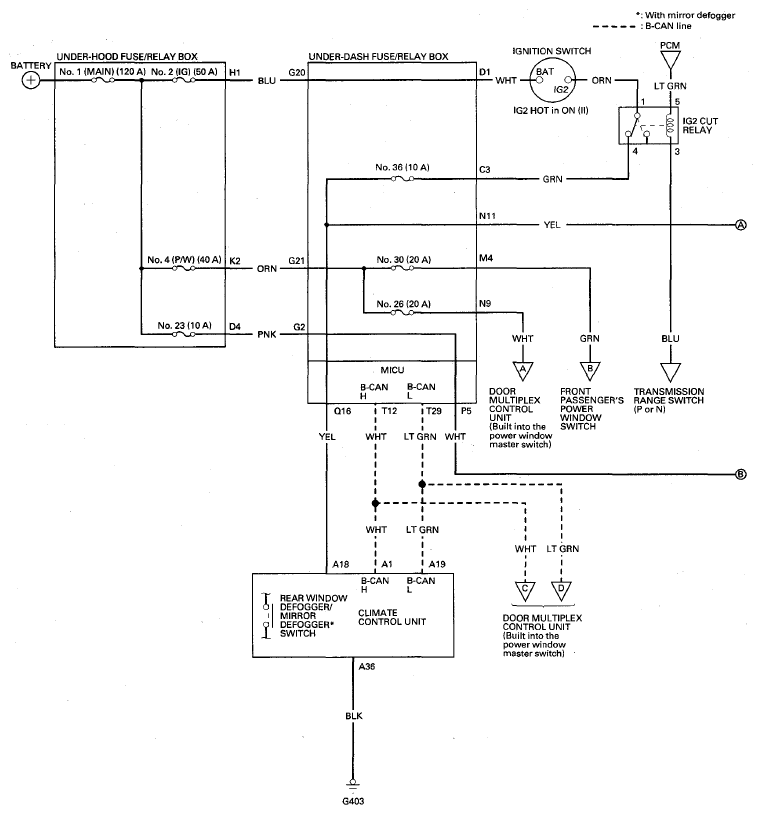

Fig 2: Power Mirrors (Without DPMS) - Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

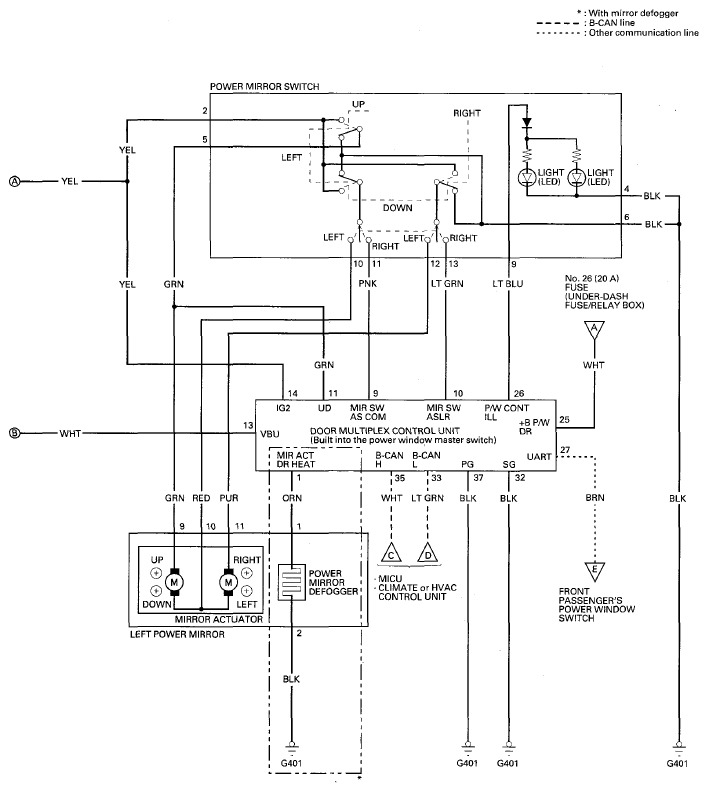

Fig 3: Power Mirrors (Without DPMS) - Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
