Power Mirror Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door or the related parts.
  1. Lower the door glass fully.
  2. Carefully detach the clip, and release the hooks (A), then pry out the mirror mount cover (B) by hand in the sequence shown in illustration.
    Fig 1: Prying Out Mirror Mount Cover
    G08088579Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. While holding the mirror, disconnect the connector (A), then remove the nuts.

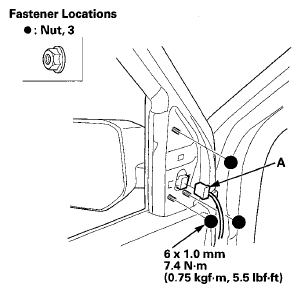

    Fig 2: Power Mirror Connector With Torque Specifications
    G08088580Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. While holding the mirror, squeeze the sides of connector clip (A), then push out to remove the mirror (B).
    Fig 3: Identifying Connector Clip And Mirror
    G08088581Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the mirror in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clip and the hooks into place securely.
