Wireless Remote Control Battery Replacement

  1. Use a small coin to remove the cover from the wireless remote control (A).

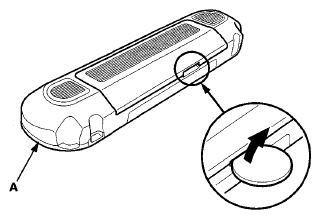

    Fig 1: Removing Cover From Wireless Remote Control
    G08091048Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the batteries (A).

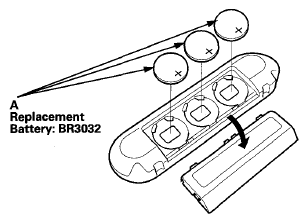

    Fig 2: Removing Batteries
    G08091049Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new batteries as a set. Do not mix old batteries with the new ones.
  4. Confirm that each operation works normally after replacing the batteries.
