Self-Diagnostic Function Mode Display

CONNECT

The screen will display connection check status for each device while in this self-diagnostic mode.

If the RAM condition for the RR DISP (rear controller and screen) is faulty, the screen displays NG (red color).
If the connection for the H/U (audio-navigation unit or audio unit) is XM (XM receiver), or AUX (RES auxiliary jack assembly) is faulty, the screen displays NG (red color).

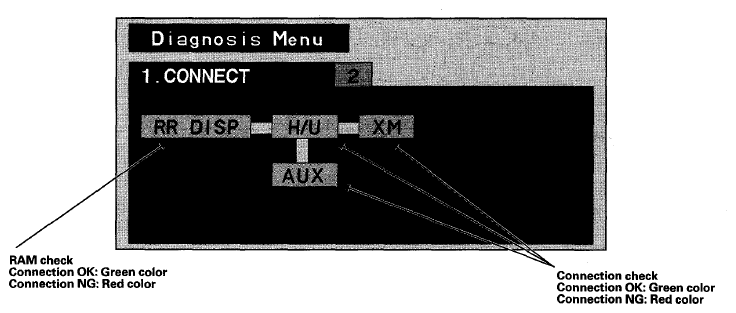

Fig 1: Display Diagnosis Menu (Connect)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Function No.	Category		Check item or information	Judge display
1	CONNECT	RR DISP	Rear controller and screen RAM check	OK or NG with GRN or RED
		H/U	Audio-Navigation unit or audio unit connection check	OK or NG with GRN or RED
		AUX	RES auxiliary jack assembly connection check	OK or NG with GRN or RED
		XM	XM receiver connection check	OK or NG with GRN or RED

UNIT CHECK

The screen displays device version, self-diagnostic status, and screen status while in this self-diagnostic mode.

If a connection to a device is NG, the screen displays---.
If there is a change (analog to digital) of signal error for the categories +B VOLT or TEMP, the screen displays Err.
The screen indicates if the screen position is open or closed.

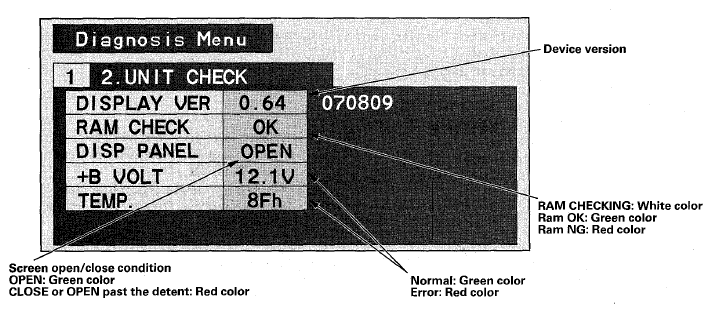

Fig 2: Display Diagnosis Menu (Unit Check)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Function No.	Category		Check item or information	Judge display
2	UNIT CHECK	DISPLAY VER	Rear controller and screen version and soft release day information	--
		RAM CHECK	Rear controller and screen RAM check	OK or NG
		DISP PANEL	Screen open or close condition or open past the detent	OPEN or NG
		+ B VOLT	+ B voltage	**V or Err
		TEMP.	Screen temperature	**h or Err
