XM Antenna Replacement

  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the nut (A) from the XM antenna (B).

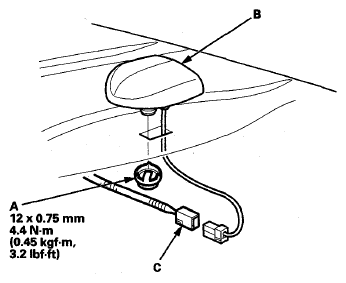

    Fig 1: XM Antenna And Nut With Torque Specifications
    G08090980Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C) and remove the XM antenna.
  4. Install the XM antenna in the reverse order of removal.
