Audio-Navigation Unit Connector D (24P)

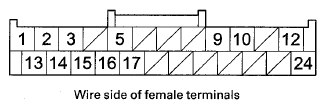

Fig 1: Identifying Audio-Navigation Unit Connector D (24P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO-NAVIGATION UNIT CONNECTOR D (24P)

Cavity	Wire Color	Terminal Name	Description
D1	BLK	AUX L	Inputs sound signal from auxiliary jack assembly
D2	WHT	AUX S GND	Ground for sound signal from auxiliary jack assembly
D3	PUR	AUX DET	Detects connection signal for auxiliary jack assembly
D5	GRN	TELEM SIG+	Inputs telephone sound signal from HandsFreeLink control unit
D9(2)	PNK	CTR PRE-	Outputs sound signal for center speaker(s)
D10(2)	BLU	CTR PRE+	Outputs sound signal for center speaker(s)
D12	RED	SUBW PRE+	Outputs sound signal for subwoofer
D13	RED	AUX R	Inputs sound signal from auxiliary jack assembly
D14	LT BLU	AUX GND	Ground for auxiliary jack assembly
D15	GRY(1)	AUX SH GND	Shield for terminals No. 1, No. 2, and No. 13
D16	RED	TELEM SIG-	Inputs telephone sound signal from HandsFreeLink control unit
D17	GRY(1)	TELEM SIG SH	Shield for terminals No. 5 and No. 16
D24	LT BLU	SUBW PRE-	Outputs sound signal for subwoofer
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic. (2) With rear entertainment
