Parking and Back-up Sensor Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the front parking sensor switch (B), then remove the switch from the switch panel.

Fig 1: Identifying Front Parking Sensor Switch & 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table below.

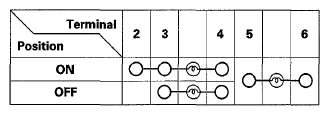

Fig 2: Identifying Terminal Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the illumination bulbs (A) or the switch.

Fig 3: Identifying Illumination Bulbs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
