Tailgate Latch Switch Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Open the tailgate.
Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the 2P connector (A) from the tailgate latch switch (B).

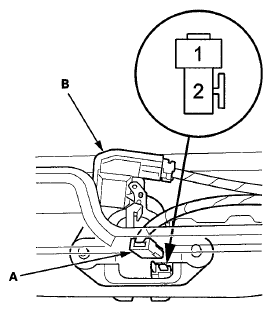

Fig 1: Identifying 2P Connector & Tailgate Latch Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals No. 1 and No. 2.
- With the tailgate open, there should be continuity.
- With the tailgate closed, there should be no continuity.
If the continuity is not as specified, replace the latch assembly.
