Rear Individual Map Light Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the map light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

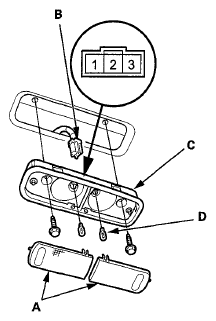

    Fig 1: Identifying Rear Individual Map Light 3P Connector
    G05966334Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals.
    • There should be continuity between terminals No. 1 and No. 3 with the left switch ON.
    • There should be continuity between terminals No. 1 and No. 2 with the right switch ON.
    • There should be continuity between terminals No. 2 and No. 3 with the left switch OFF.
  6. If the continuity is not as specified, check the bulb(s) (D). If the bulbs are OK, replace the light.
  7. Install the parts in the reverse order of removal.
