Cargo Area Light Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

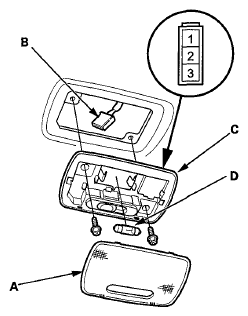

    Fig 1: Identifying Cargo Area Light 3P Connector
    G05966335Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals in each switch position according to the table.
    • There should be continuity between terminals No. 2 and No. 1 with the switch in the MIDDLE position.
    • There should be continuity between terminals No. 2 and No. 3 with the switch in the ON position.
  6. If the continuity is not as specified, check the bulb (D). If the bulb is OK, replace the light.
  7. Install the parts in the reverse order of removal.
